PUMP SPRAYER – 5.5hp Diaphragm with 200 litre tank on trailer Part No.: STPM200 Code No. 17

PUMP SPRAYER – 5.5hp Diaphragm with 200 litre tank on trailer Part No.: STPM200 Code No. 17

Code No.: 17

Part No.: STPM200

Shipping weight & size :

 Description :

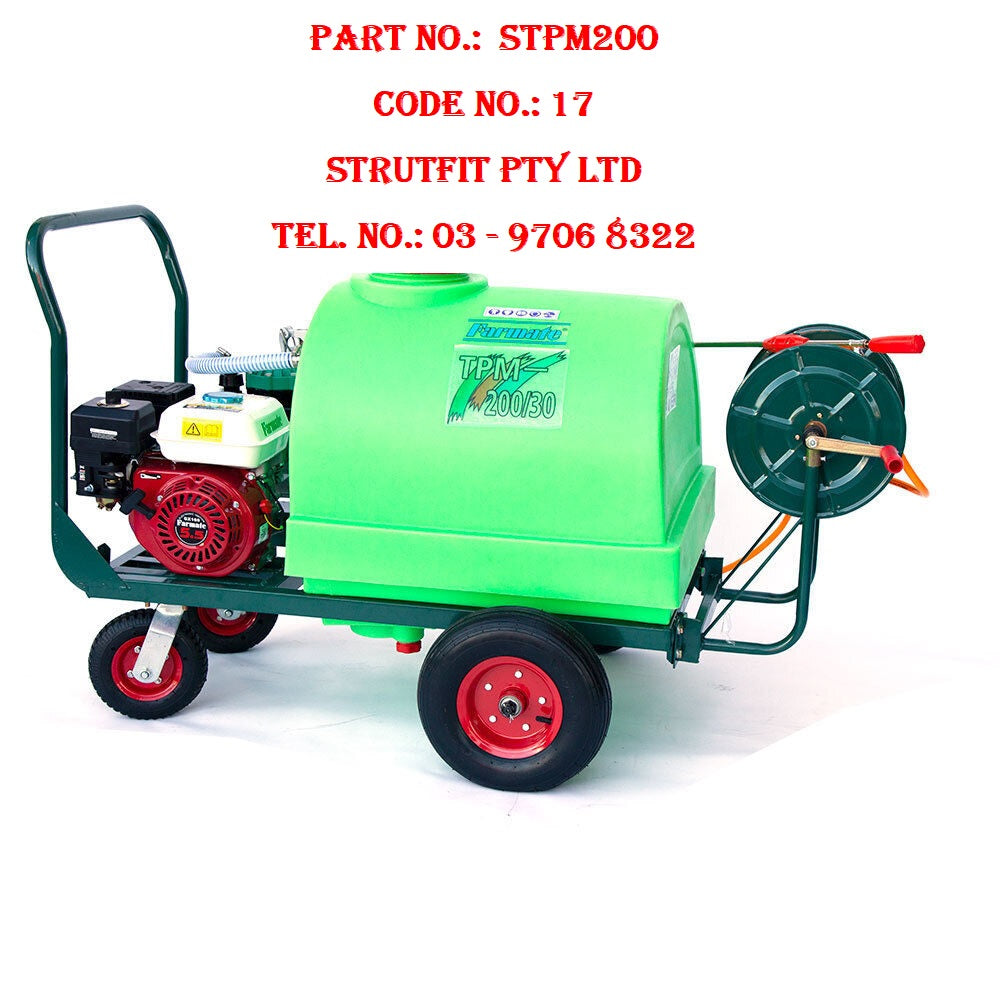

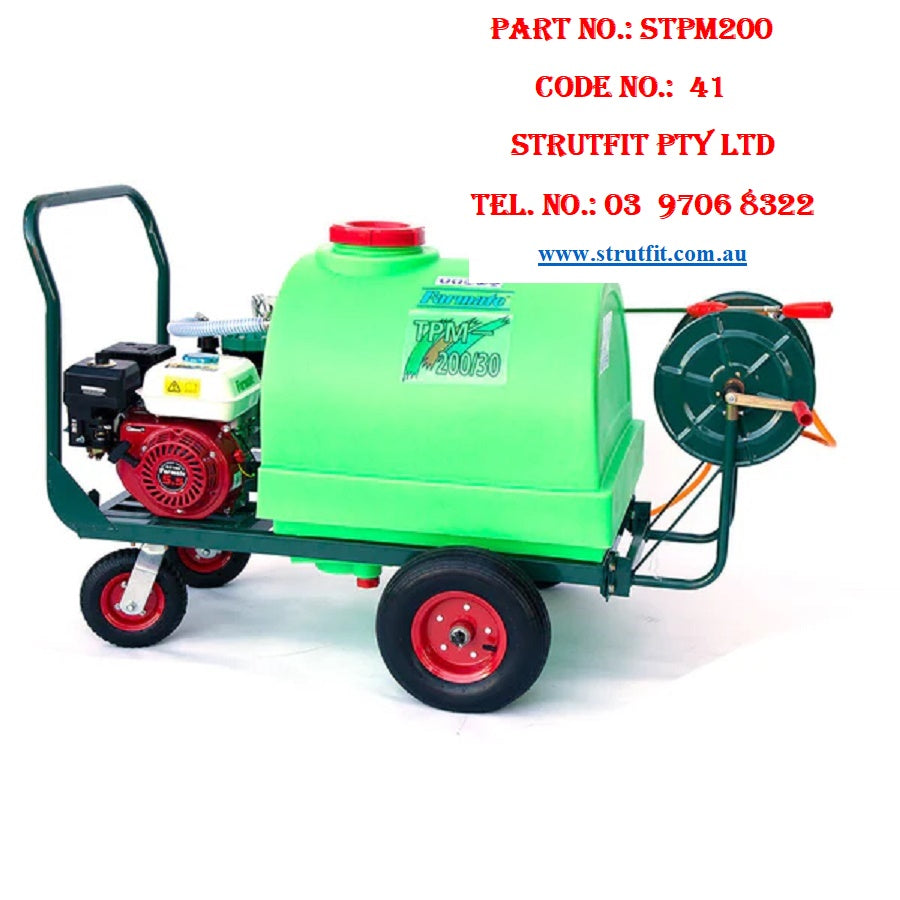

This sprayer system is securely mounted to a rugged 4 wheel trailer/frame. The entire unit is designed to be highly portable and ready for virtually any spraying task. It has a premium grade polyethylene tank and diaphragm pump system. 50 meter long spraying hose is great for applying water, fertilizers and pesticides over wide areas. It comes with 4 stroke 5.5ph motor, can pump 35L/min and up to 40bar. 2 Outlets on the pump can let you do different spraying at same time.

Features:

• Diaphragm pump system, no belt, low maintenance, and durable usage
• Welded, corrosion resistant trailer/frame
• High-floatation turf tires roll smoothly with minimal tracking over rough terrain
• Powered by a dependable 160cc TF168FA OHV engine at 5.5HP 4 Stroke
• 50m high pressure spray hose and reel makes delivering chemicals to hard-to-reach areas easier
• 200L premium grade polyethylene UV-stabilized Tank
• Stainless steel spray lance and nozzle
• Adjustable pressure with jet agitation 2 spray outlets on the pump
• Pump will auto on/off by spraying handle switch

Specification:

• Engineer Power Output: 4 stroke, 5.5HP
• Engineer Displacement: 163cc
• Pump Type: Diaphragm
• Pump Suction: 35L/min
• Spraying Pressure: Up to 40 bar
• Hose length: 50 meter
• Tank Capacity: 200L Net
• Weight: 75kg
• Spray Gun length: 85cm
• Dimension: 152(L) x 82(W) x 90(H)cm

Spraying Applications:

• Irrigation
• Pesticide, herbicide and fungicide application
• Cleaning tasks
• Nutrient or fertilizer application
• Virtually any other spraying task

N.B.  Please note that warranty for this item is only one year in Australia
