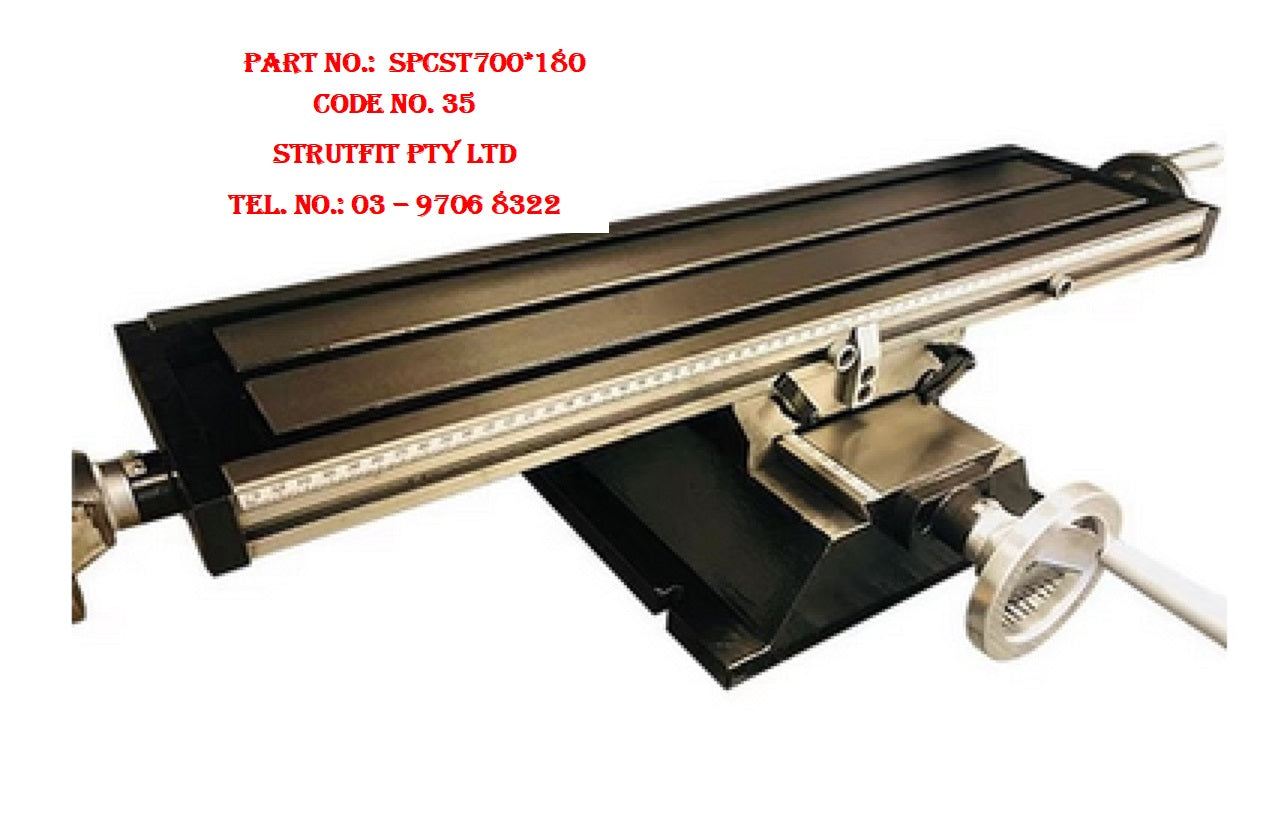

Precision CROSS SLIDING TABLE BF-30 700*180mm Part No.: SPCST700*180 Code No.: 35
Code No.: 35
Part No.: SPCST700*180
Shipping weight & size : 295 kgs & 86*46*23 cm
Description :

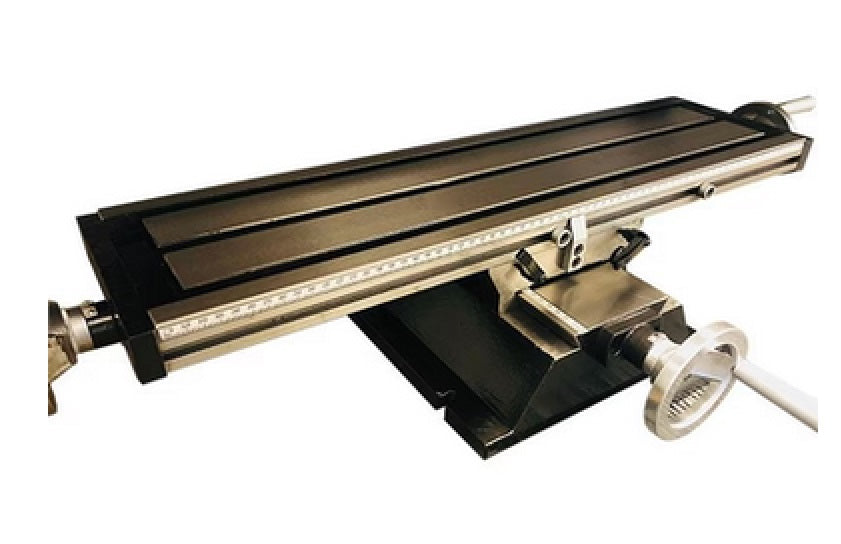

Introducing the Cross Slide Table, equipped with a 700*180mm table for diverse applications. With a precise 480mm X-axis travel and 175mm Y-axis travel, this precisely machined compound table ensures smooth and accurate movements. The precision model is equipped with a dial-indexed handle featuring 0.05mm graduation.
Tailored for repetitive multi-axis tasks, this table significantly reduces setup time. Its robust construction is ideal for heavy-duty work, ensuring reliability across various applications. While compatible with BF-30 milling head, note that mounting holes require drilling for proper installation. Enhance your workshop's precision and efficiency with the Cross Slide Table.

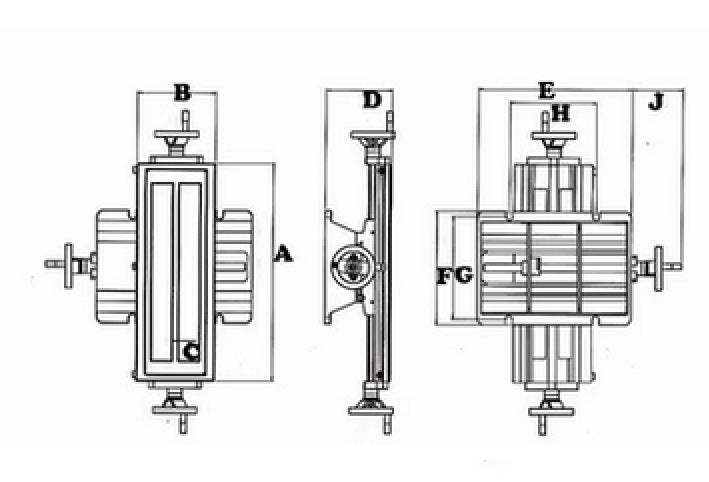

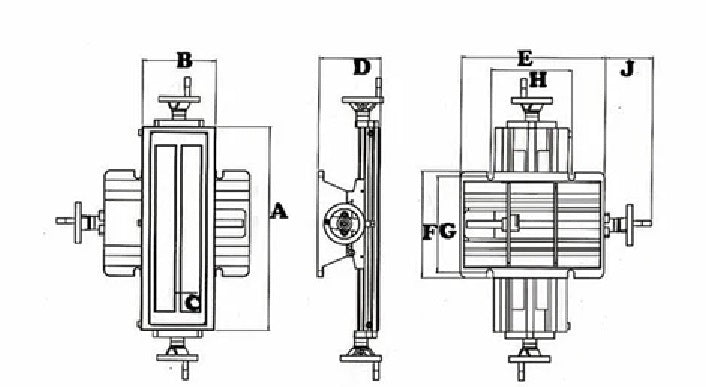

Specifications:
|
|
|
Model |
BF-30 Precision Sliding Table |
|
|
|
A |
700 mm |
|
|
|
B |
180 mm |
|
|
|
C |
12 mm |
|
|
|
D |
151 mm |
|
|
|
E |
355 mm |
|
|
|
F |
277 mm |
|
|
|
G |
245 mm |
|
|
|
H |
220 mm |
|
|
|
J |
116 mm |
|
|
|
X-travel |
480 mm |
|
|
|
Y-travel |
175 mm |
|
|
|
Packing Size (LxWxH) |
860x460x230mm |
|
|
|
N.W./G.W. |
260/295kg |
N.B. Colour may vary
