MILLING MACHINE WITH TAPPING PEDAL METEX PRO 1.1kw Part No : MP25LPRO Code 4

MILLING MACHINE WITH TAPPING PEDAL METEX PRO 1.1kw Part No : MP25LPRO Code 4

Code No.: 4

Part No.: MP25LPRO

Shipping weight & size :   145 kgs & 93*76*71 cm

Description:

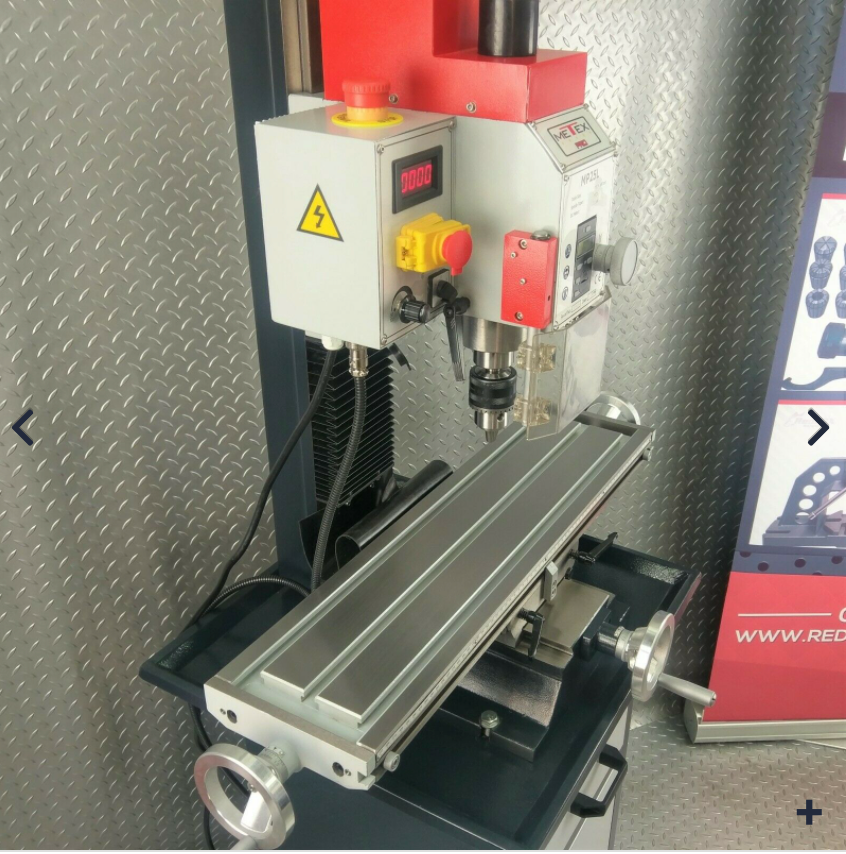

The METEX PRO MP25L- MT3 Milling Machine is characterised by its smooth powerful 1.1KW variable speed brushless motor and tapping pedal for hands free tapping

Features :

• Milling Machine Motor Powerful 1.1kw brushless smooth
• Extra Long Table and Travel
• With dynamic infinitely variable drive from 50 to 2250 rpm
• Tapping Pedal for hands free Tapping

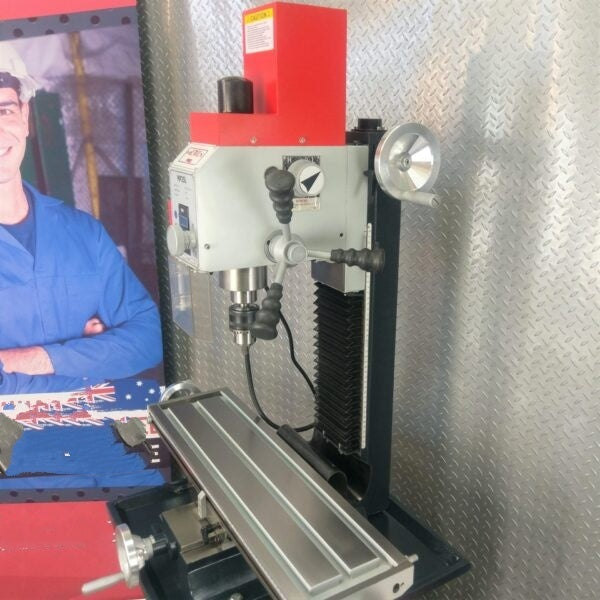

• Milling head is turnable left and right 90° and thus allows milling and drilling operation in every angle position
• Upright laterally adjustable for further application
• Micro Feed Adjustment

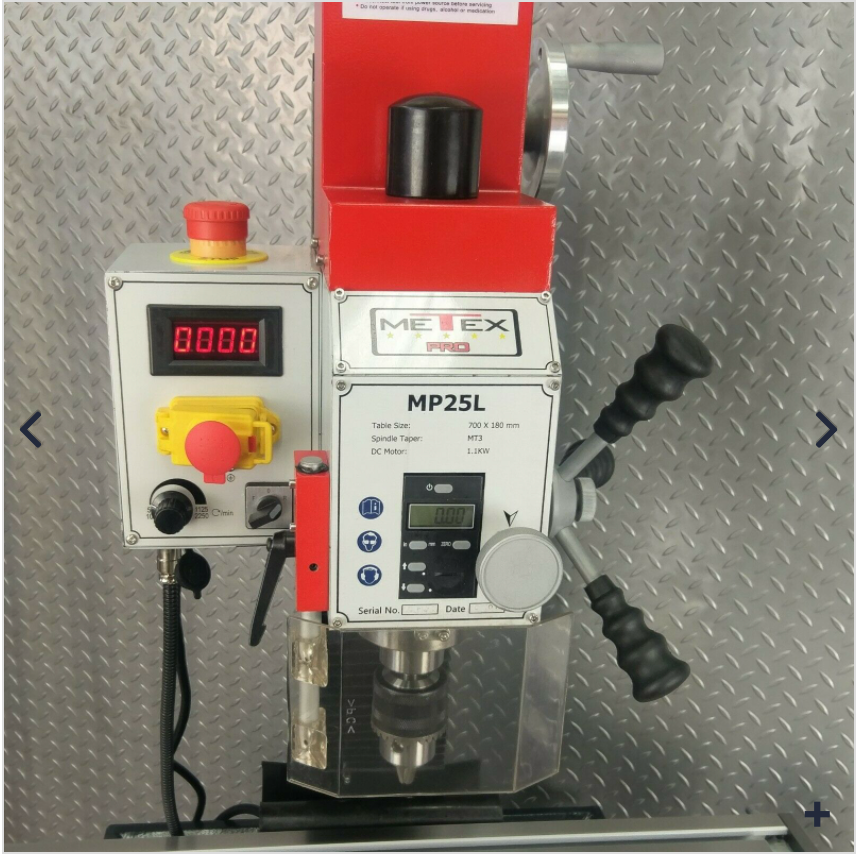

• Digital Spindle Speed Readout
• Digital Readout for Quill Travel, Precision of reading – 0.01mm
• Simple and clear operation
• User-friendly automatic switch with low-voltage release

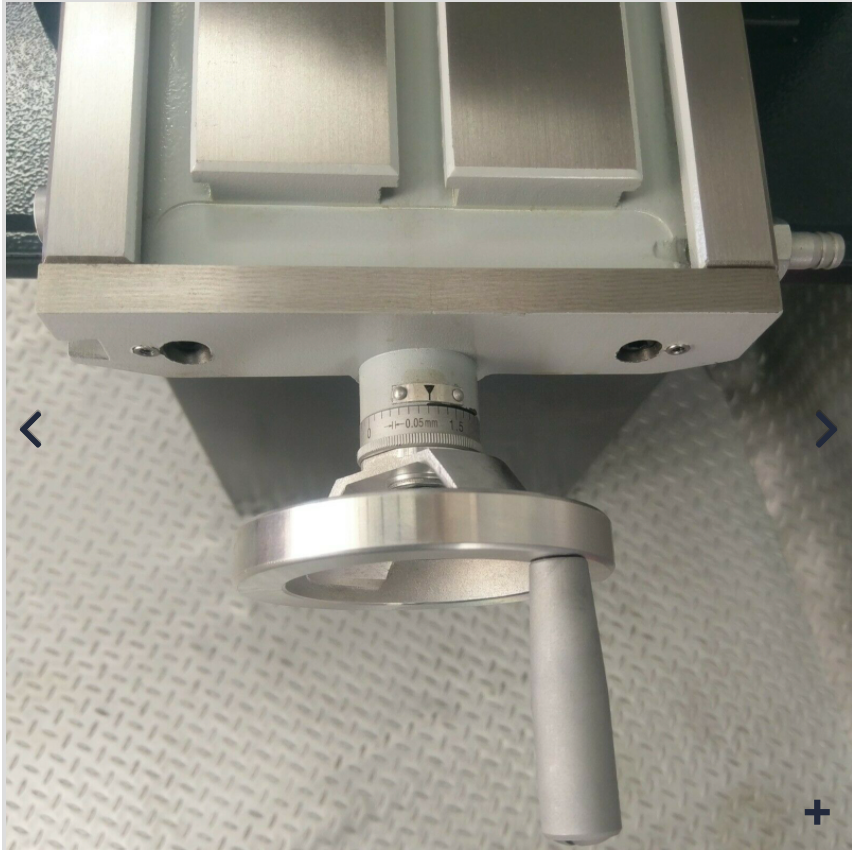

• Scale collars for all axis are adjustable
• Spindle Taper MT3
• Clearance freely adjustable dovetail slideways on all 3 axis
• Expansion Bellows Protection on Dovetail Column
• Unrestricted milling access through clampable guide ways
• Produced according to toolmakers precision with test certificate

Technical Specifications :

• Drilling capacity (max.): Ø 25 mm
• Milling capacity of cutter head (max.): Ø 63 mm
• Milling capacity of end mill cutter (max.): Ø 20 mm
• Working range: 140mm
• Spindle holding fixture: MT3 / M 12
• Spindle speeds (variable): 50 – 3000rpm
• Sleeve travel: 50mm
• T-slot size: 3 x 12mm (M10 Clamping Kit), distance 63mm
• Table size (L x W): 700mm x 180mm
• Drill head swivel angle: 180°
• Distance from spindle to column: 160 mm
• Distance from spindle nose to table: 370 mm
• Travel Z – axis: 370mm (without bellow)
• Travel Y – axis: 175mm
• Travel X – axis: 480mm
• Motor power: 1100 W (1.5HP) 240 V / 50 Hz
• Dimensions (L x W x H): 730 x 710 x 880mm
• Net Weight: 120kg
• Gross Weight: 145kg

Included Accessories:

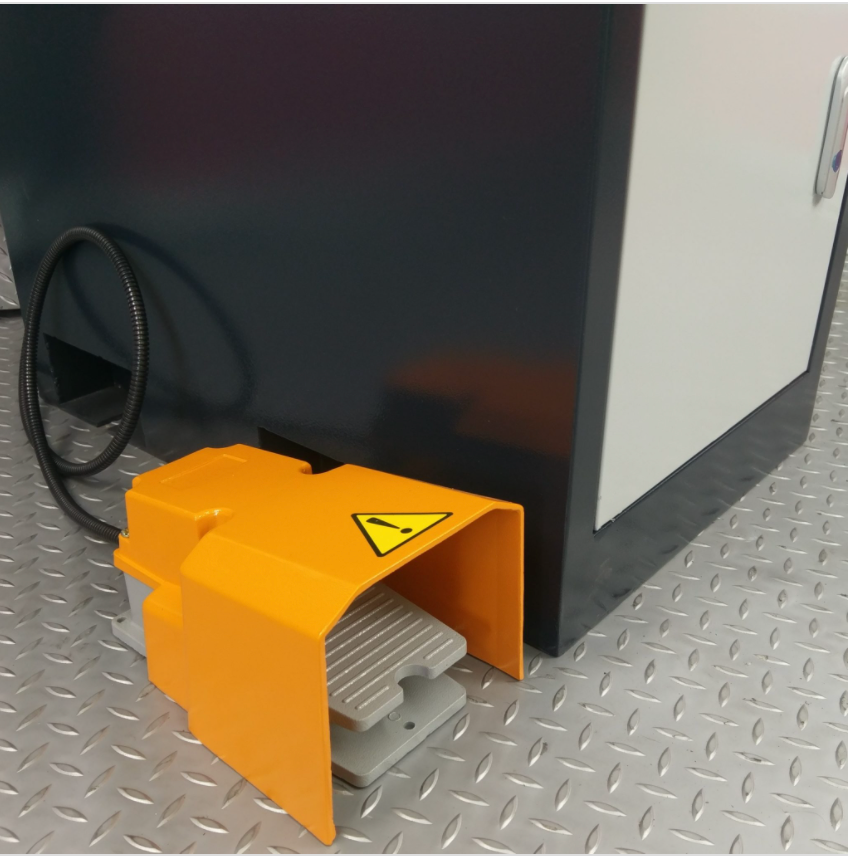

• Tapping Pedal
• Draw Bar – M12
• Drill Chuck – 3~16mm / B16
• Morse Taper – MT3 / B16
• Oil Bottle
• Assorted Spanner and Allen Keys
• Tool Box

Optional Accessories :

• Universal Coolant Pump & Tank
• 2 or 3 Axis DRO
• X-Axis Power Feed

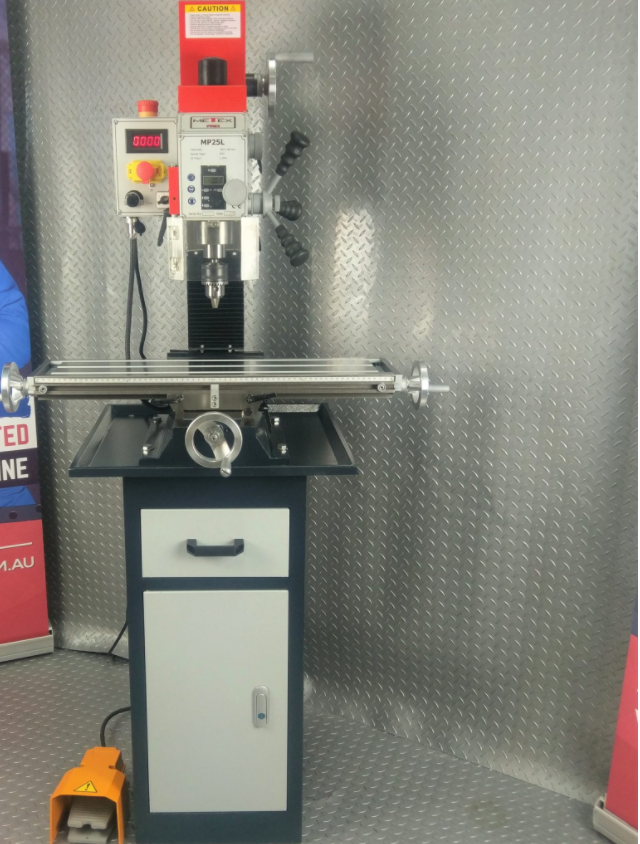

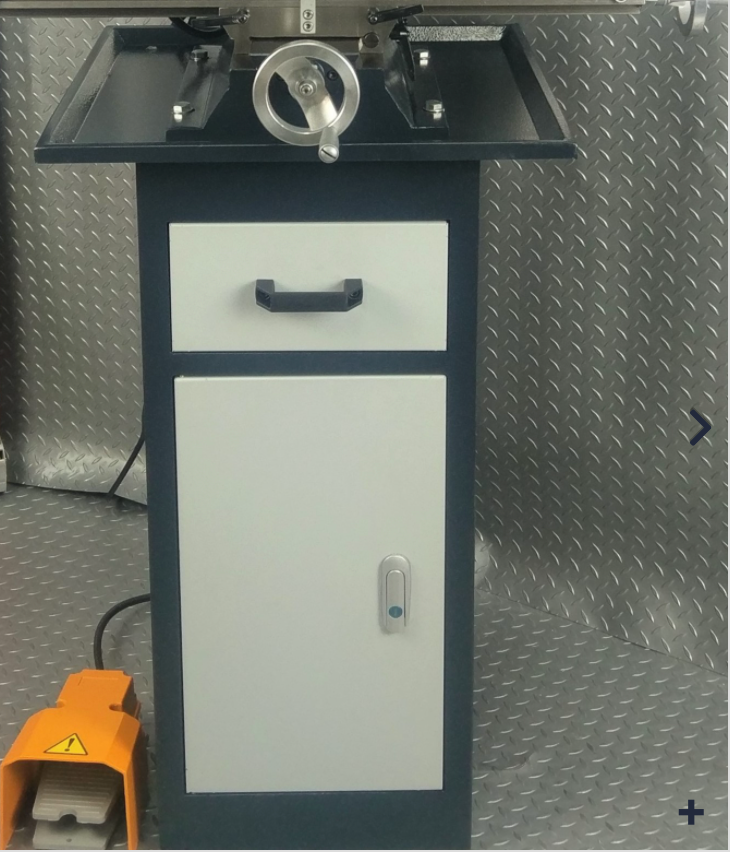

• MP25L Stand (comes packaged separately for ease of delivery)
• Clamping Kits
• Milling Vices
• End Mills
• Collet sets
• Rotary Tables

Please contact us to create a package that suits your needs.

• Spindle Horsepower                                      1.5HP
• Machine Type                                                 Mill Drill
• Table Length                                                   700mm
• Table Width                                                    180mm
• Table T-slot size / number / distance            10mm x 3
• Drilling Capacity Steel                                    Ø 25mm
• Milling capacity of cutter head (max)             Ø 63mm
• Milling capacity of end mill cutter (max)       Ø 20mm
• Milling Spindle Speed (RPM)                          50 – 2250rpm
• Sleeve travel                                                   50mm
• Power Source                                                 Corded Electric
• X-Axis Travel Bed                                            480mm
• Y-Axis Travel Bed                                            175mm
• Z-Axis                                                              axis 370mm (without bellow)
• Spindle Taoer                                                 M3/M12
• Function                                                          Drilling, Milling, Tapping
• Make                                                               METEX PRO
• Control                                                            Manual
• Voltage                                                            240v

Mill head swivel angle                                    +/-90°

Max-distance-from-spindle to                       160mm
