Milling Machine Direct Drive Variable Speed 1500w Motor Part No.: SMILL-E3 Code 4

Milling Machine Direct Drive Variable Speed 1500w Motor Part No.: SMILL-E3 Code 4

Code No.: 4

Part No.: SMILL-E3

Shipping weight & size :  265 kgs & 150*130*80 cm

Description:

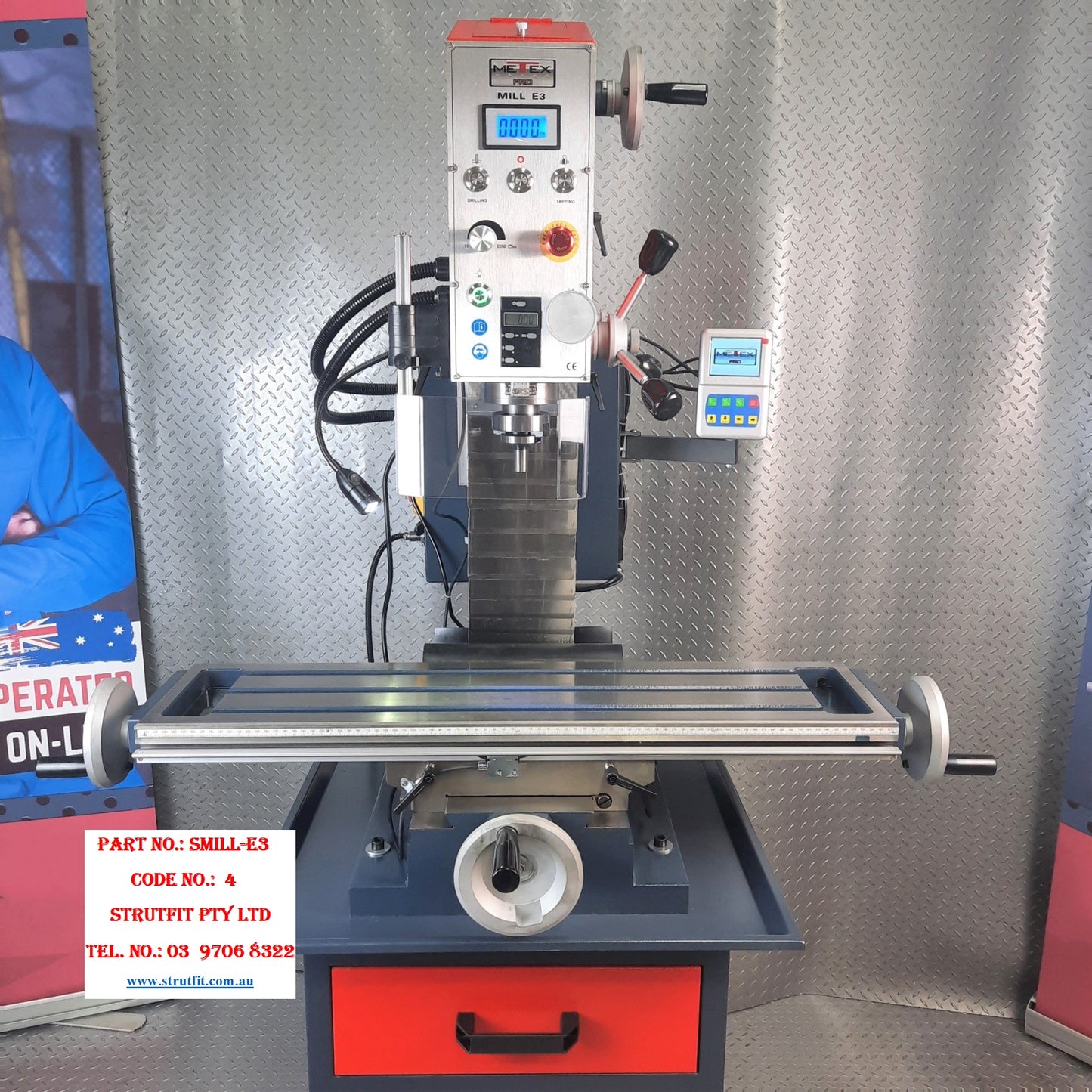

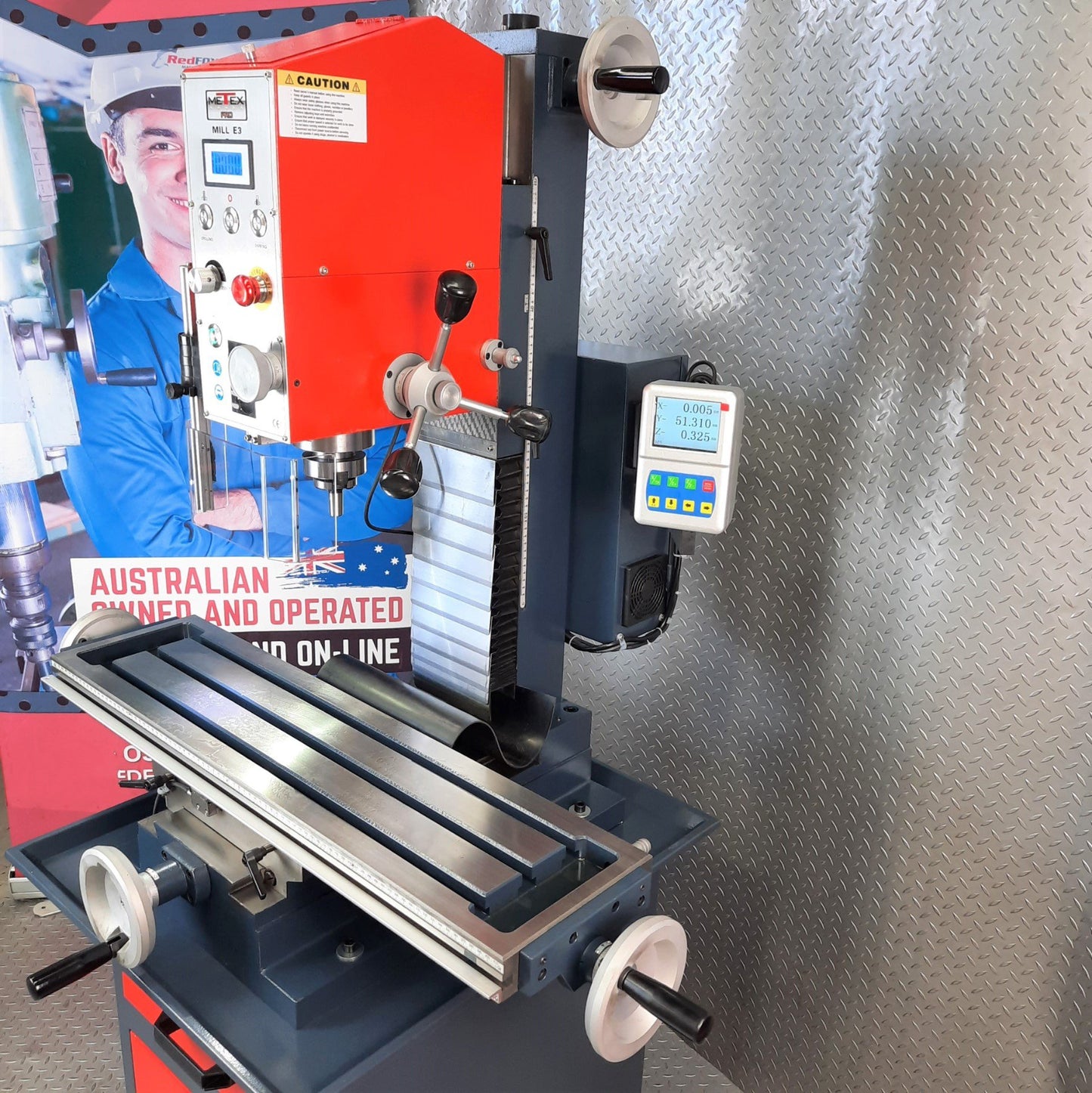

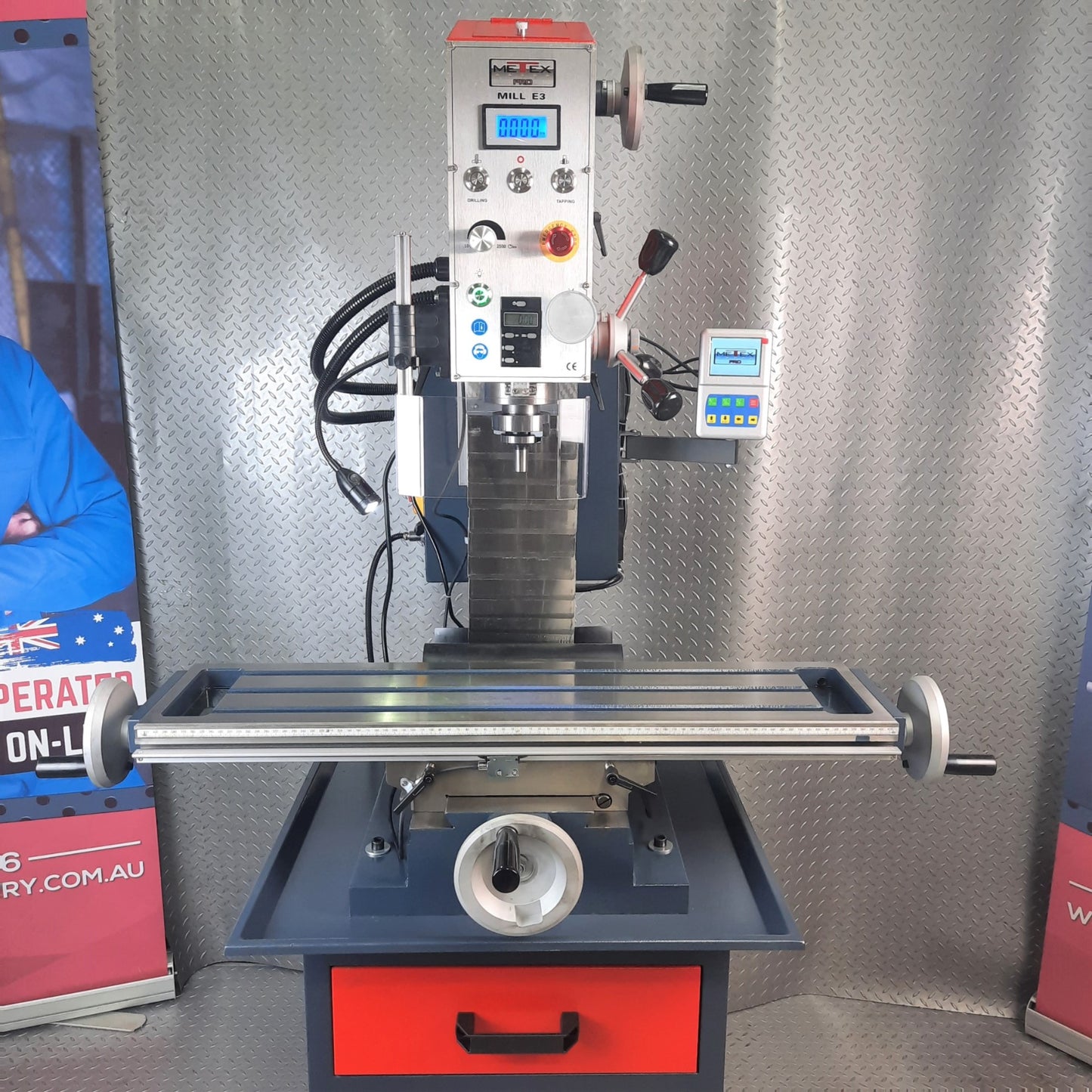

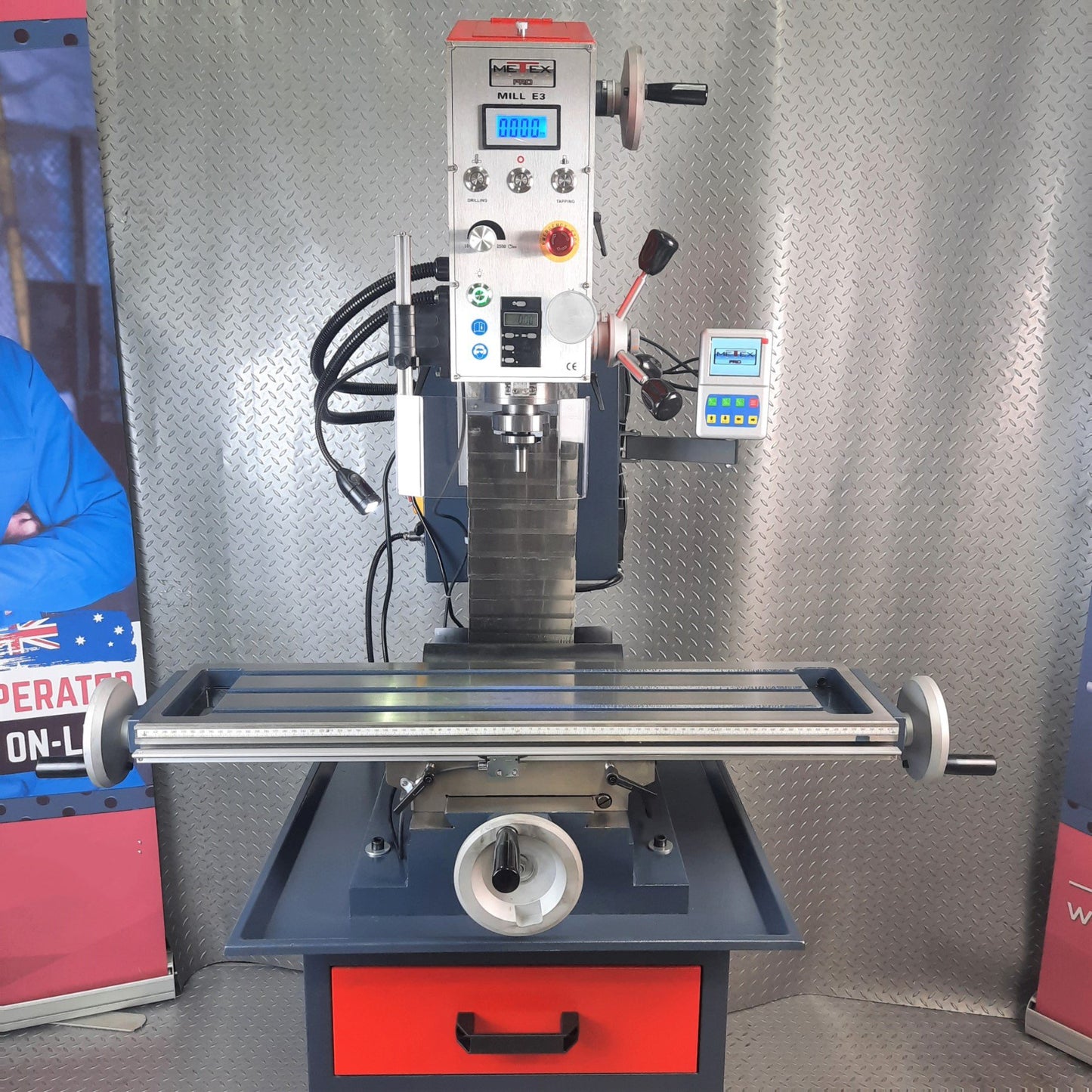

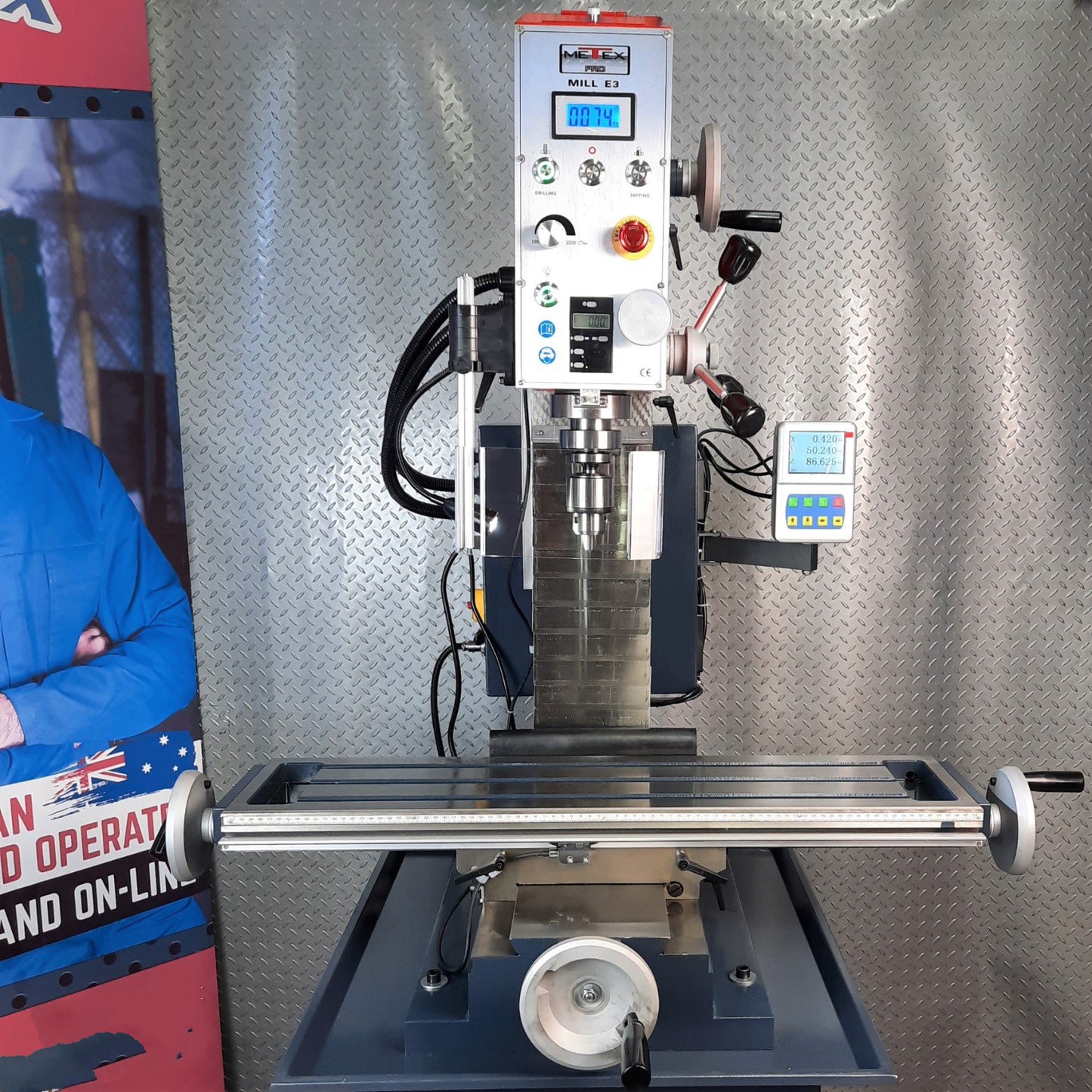

The METEX PRO E3 Milling Machine with 3 Axis DRO, Variable Speed and reverse Tapping Pedal, is the Deluxe Milling Machine for the avid enthusiast!

The METEX PRO E3 Milling Machine is an extremely versatile milling machine due largely to the precise design and quality control during manufacture. It’s best feature is a powerful 1500 watt direct drive variable speed DC motor to handle larger cutting requirements quietly with NO gears or Belt means No noise and no loss of torque! This makes the MPE3 great for those looking to convert to CNC in the future, it is the best milling machine for CNC conversion.

The METEX PRO E3 Milling Machine has been designed to easily mount on your own bench top or if required it can also be mounted on the correct machine stand.

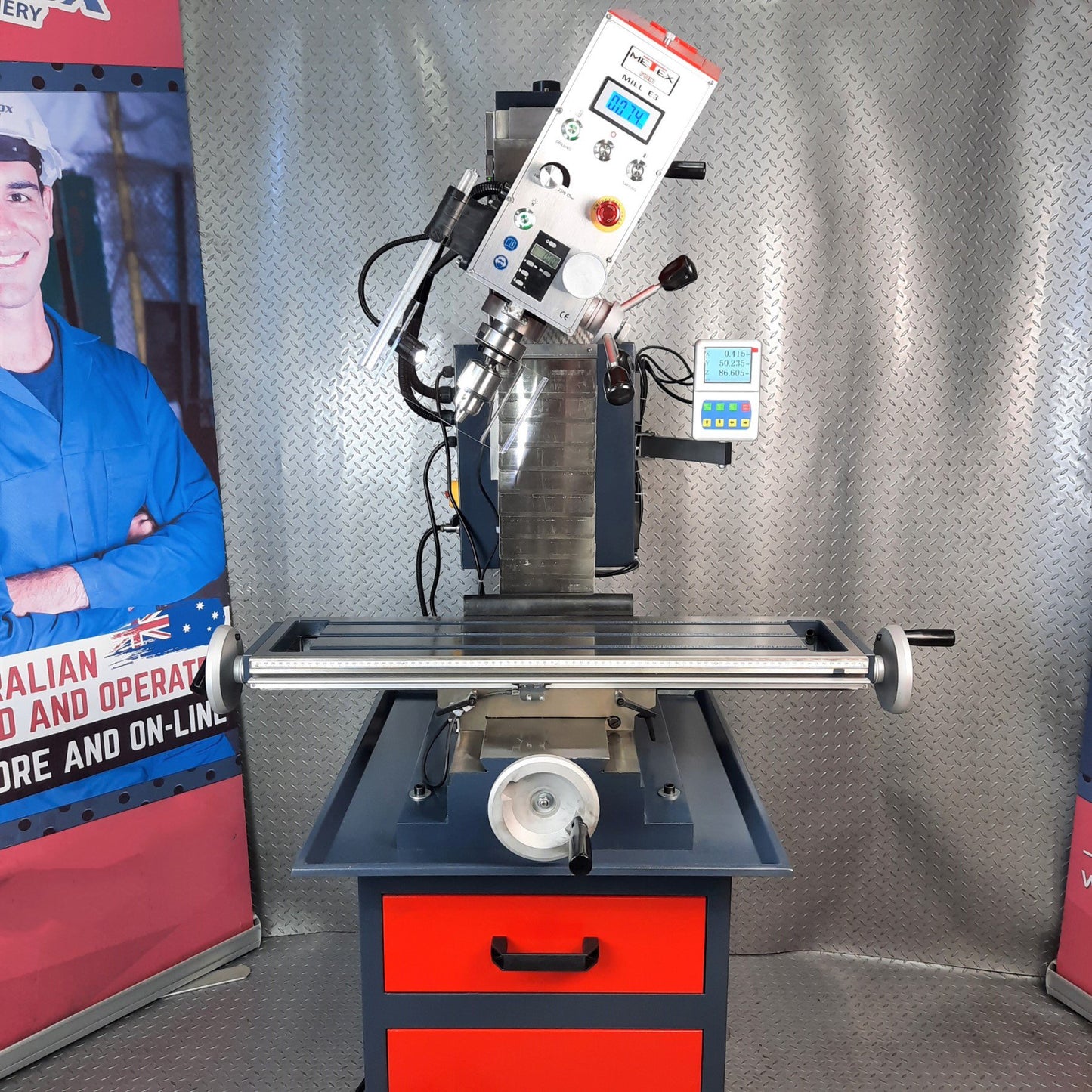

The METEX PRO E3 Milling Machine milling head can be swiveled ±90°

The METEX PRO E3 Milling Machine was designed in Australia and is manufactured to Australian specifications which ensures exacting precision, reliability and a great finish,  no rough edges! The METEX PRO E3 Milling Machine also has a large 800mm x 240mm table size that sets it apart.

The METEX PRO MPE3 is one of the most sophisticated Mill Drills on the market, but if all you want to do is turn on your METEX PRO MPE3 drill some simple accurate holes, or mill straight lines – well, that’s easy. You’ll appreciate the power and smooth operation without needing to know all the fancy back end detail. For those interested in all detail, this is for you…

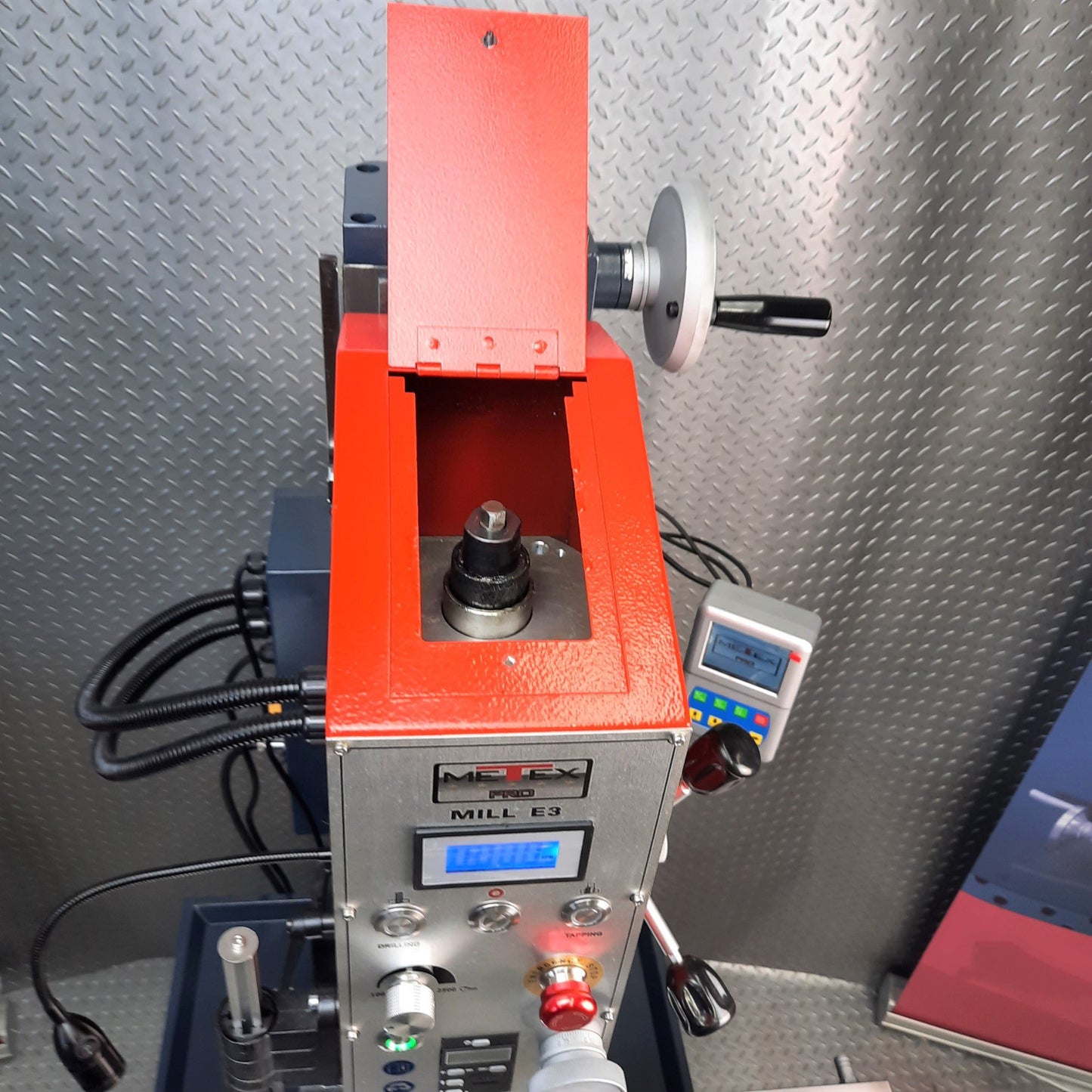

The engineers at METEX have designed this model from the ground up around a newly developed 1500w/2HP Direct Drive Motor. The direct drive technology means there are no belts or pulleys to change, which reduces vibration in operation along with the loss in transfer of power usually found on belt driven systems. The Direct Drive motor offer Hi-Torque across the full adjustable variable speed range irrespective of loading!

Variable speed is available electronically at the turn of a dial, from 100 to 2500rpm as factory set. Super fast, these upper speeds are perfectly suited to precision drilling into cast iron, steel, aluminum, copper or even glass & tiles – making this unit a true cross over Mill Drill.

You also have forward or reverse rotation options and a large backlit readout that accurately displays your drilling depth, or RPM! The guard is large and clear and features a micro-switch for additional safety. This is particularly useful in schools or similar situations where users may wish to ensure the guard is in place during use. It can however, be circumvented for those home users that prefer no guard. An E-stop completes the package and unlike other E-Stops on regular Milling Machines, due to the Direct Drive motor, this one will lock stop the spindle immediately.

Features :

• METEX PRO 3 Axis Magnetic DRO
• Wide range of applications
• Extra Long Table and Travel
• 1500w direct drive DC motor just like the high end CNC Mills!
• With dynamic infinitely variable from 100 to 2500 rpm
• Tapping Pedal for easy Tapping
• Milling head is turnable left & right by 90° and thus allows milling and drilling operation in every angle position
• Upright laterally adjustable for further application
• Micro Feed Adjustment
• Digital Spindle Speed Readout
• Digital Sleeve Travel Readout, Precision of reading – 0.01mm
• Simple and clear operation
• User-friendly automatic switch with low-voltage release

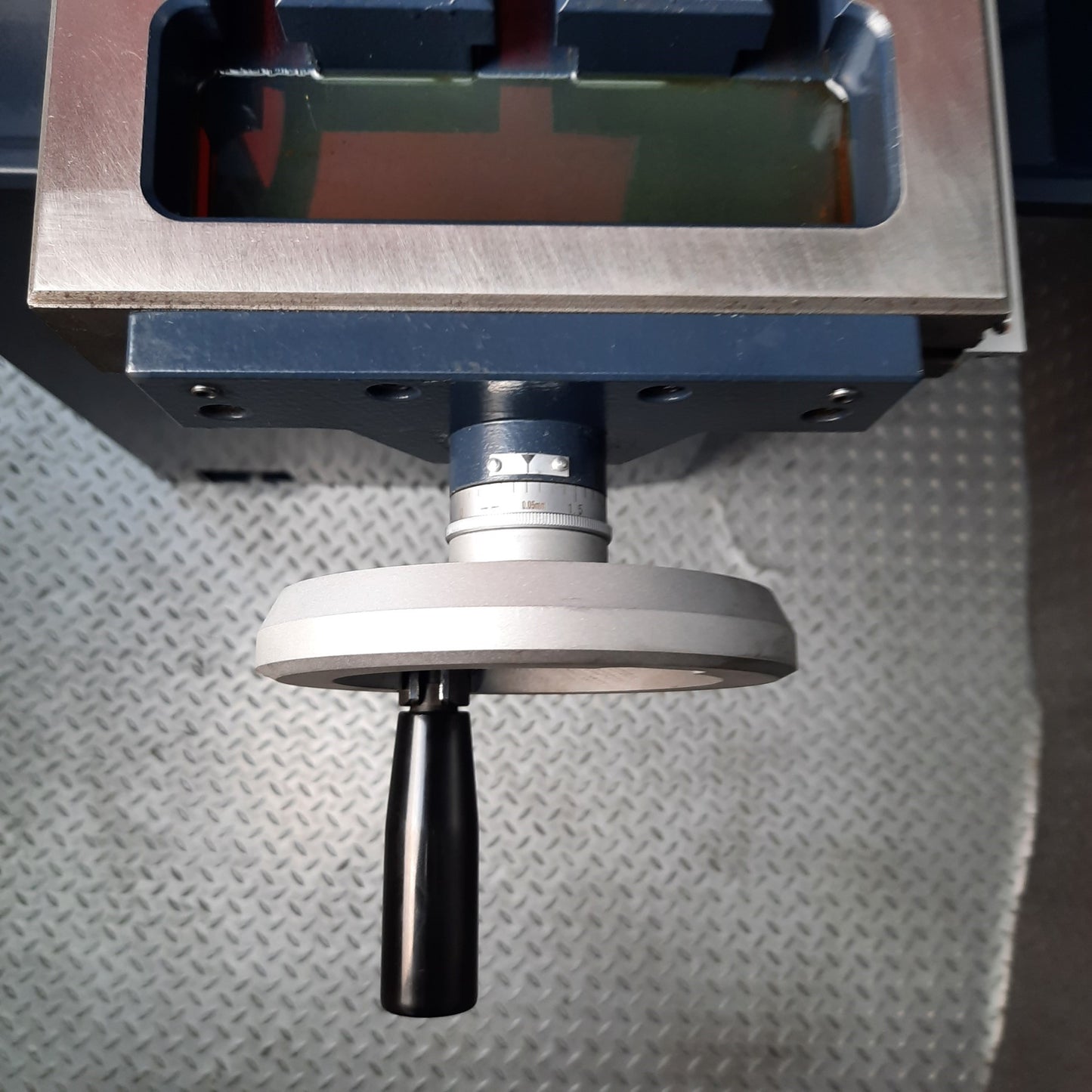

• Scale collars for all axis are adjustable
• Spindle Taper ISO30
• Clearance freely adjustable dovetail slideways on all 3 axis

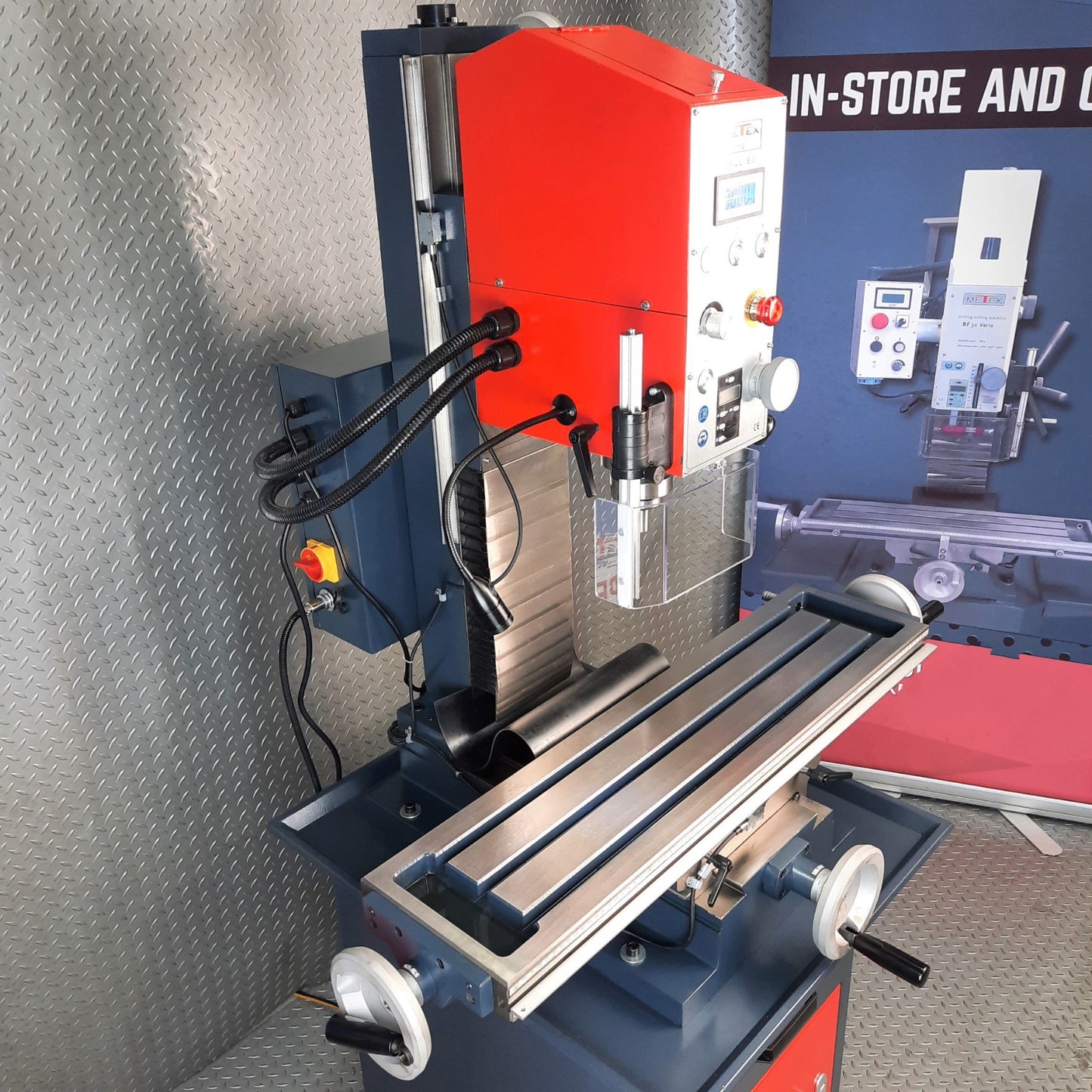

• Expansion Bellows Protection on Dovetail Column
• Unrestricted milling access through clampable guide ways
• Folding handwheels to avoid injuries
• Produced according to toolmaker´s precision with test certificate

Technical Specifications :

• Drilling capacity (max.): Ø 32 mm
• Milling capacity of face mill (max.): Ø 76 mm
• Milling capacity of end mill cutter (max.): Ø 20 mm
• Spindle holding fixture: ISO30
• Spindle speeds (variable): 100 – 2500rpm
• Sleeve travel: 95mm
• T-slot size: 14mm
• Table size (L x W): 840mm x 210mm
• Drill head swivel angle: ±90°
• Distance from spindle to column: 210 mm
• Distance from spindle nose to table: 470 mm
• Travel Z: axis 470mm (without bellow)
• Travel Y: axis 200mm
• Travel X: axis 580mm
• Motor power: 1500 W (2HP) 240 V / 50 Hz
• Dimensions (L x W x H): 850 x 890 x 1120mm
• Net Weight: 230kg
• Gross Weight: 270kg

Standard Accessories

•  Tapping Pedal
• 3 Axis DRO
• LED Lamp
• Draw Bar – M12
• Drill Chuck – 3~16mm / B16
• Arbor – ISO30 / B16
• Oil Bottle
• Assorted Spanner and Allen Keys
• Tool Box

Optional Accessories:

• Universal Coolant Pump & Tank
• X-Axis Power Feed

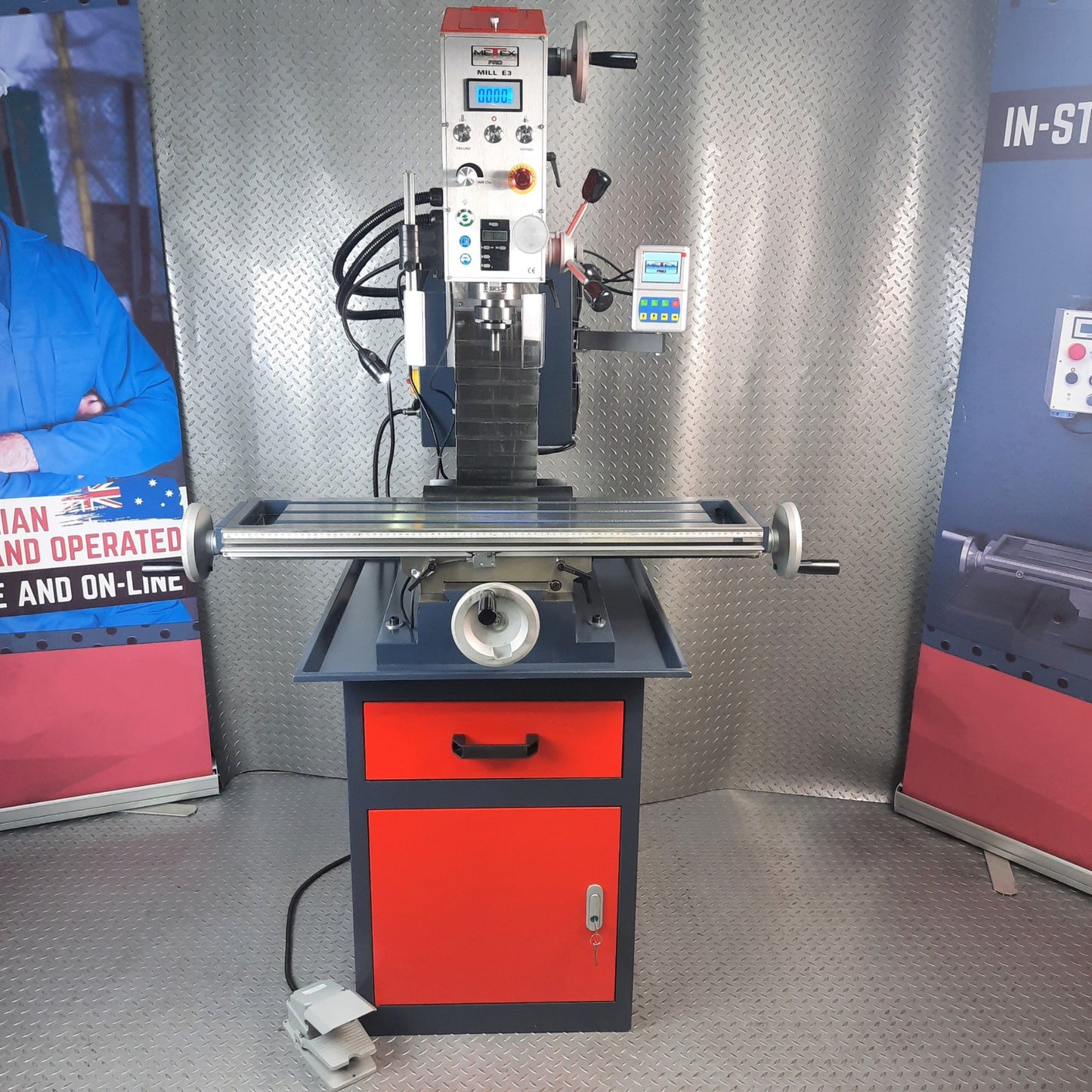

• MPE3 Stand (comes packaged separately for ease of delivery)
• Clamping Kits
• Milling Vices
• End Mills
• Collet sets
• Rotary Tables

Additional Information :

N.B.  Colour may vary. Picture is for illustration purposes only.
