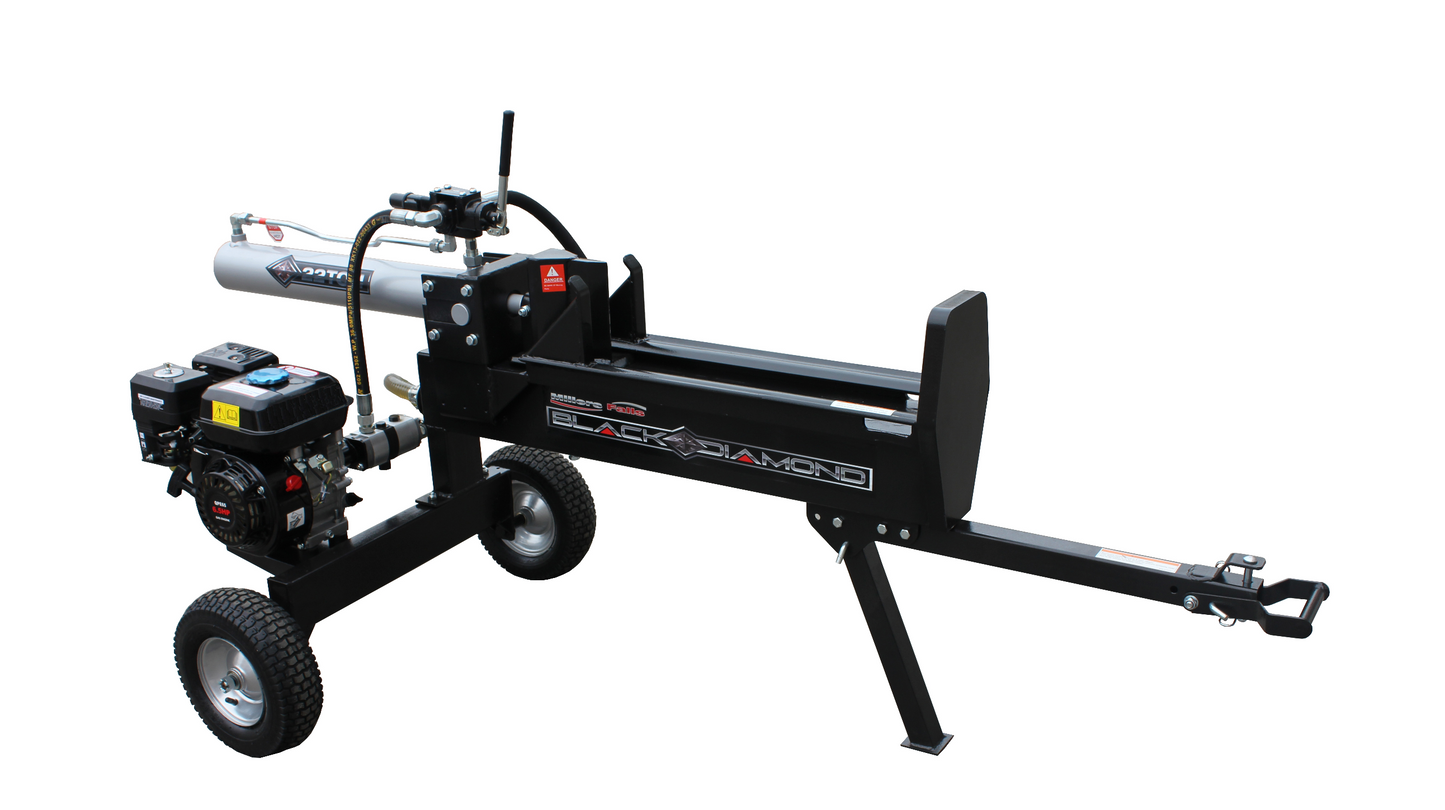

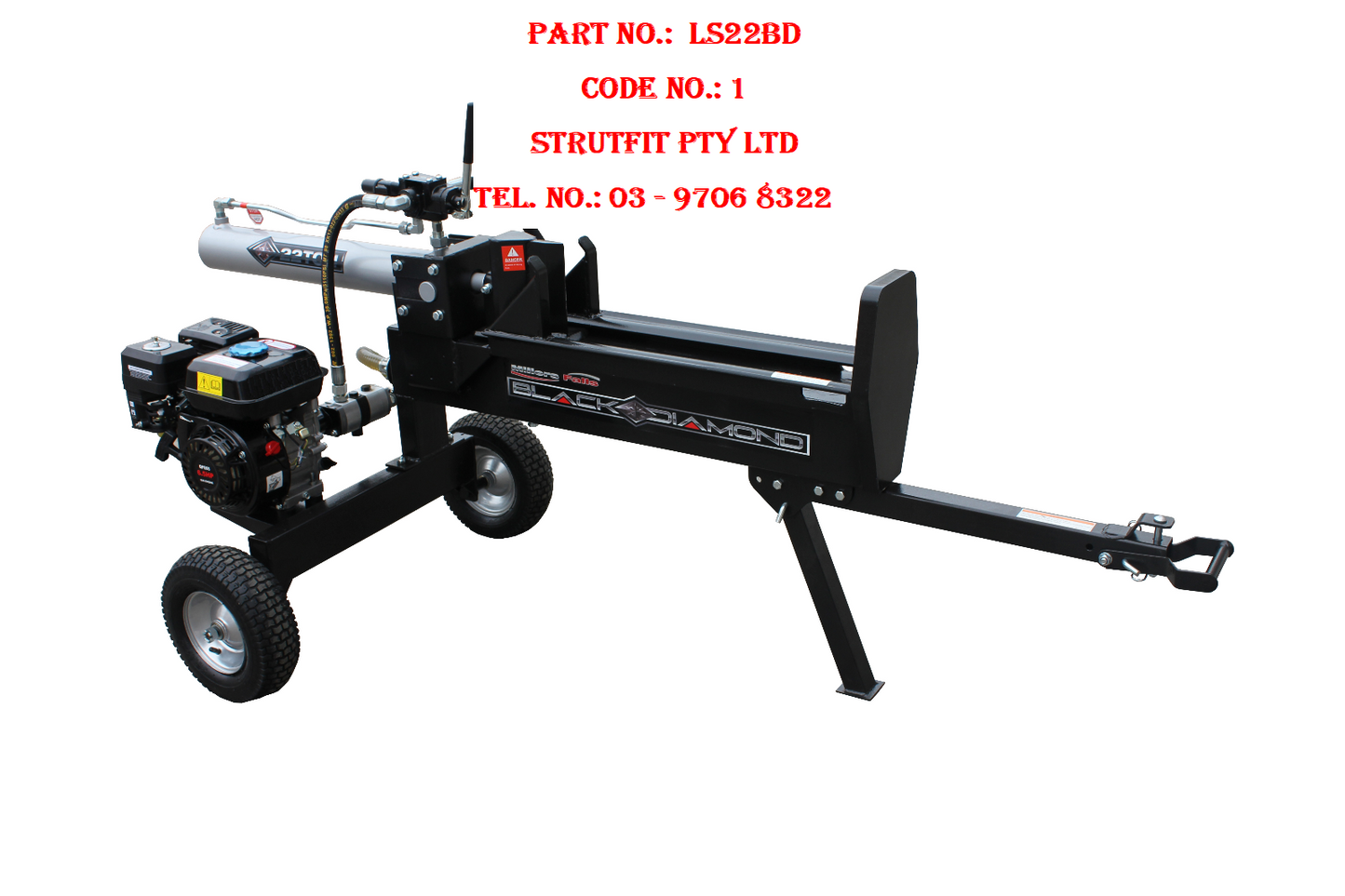

LOG / WOOD SPLITTER – 22 Ton Hydraulic manual start Part No.: LS22BD Code No. 1

LOG / WOOD SPLITTER – 22 Ton Hydraulic manual start Part No.: LS22BD Code No. 1

Regular price $1,550.00 AUD
Regular price Sale price $1,550.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

LOG / WOOD SPLITTER – 22 Ton Hydraulic manual start Part No.: LS22BD Code No. 1

Code No.: 1

Part No.: LS22BD

Shipping weight & size : 160 kgs & 168*42*69 cm

Description :

A powerful easy start 6.5HP 4 Stroke Millers Fall Petrol Engine, with 2-stae Gear Pump for faster splitting.

The LS22BD Millers Falls Black Diamond 22 Ton Manual Start Hydraulic Log / Wood Splitter has been built to split more wood with much less effort than you would have thought possible.

Millers Falls Black Diamond Log Splitters have been manufactured with the compact, powerful and innovative features to give the best performance and rigourously tested to meet high quality standards specifically for the Australian market. They have been one of the top choices in Australian market for years due to their durability, reliability and safety functions

Its powerful 22 Tons of splitting force and 178mm wearproof hardened cast steel splitting wedge gives the LS22BD Millers Falls Black Diamond 22 Ton Manual Start Hydraulic Log / Wood Splitter the  strength and ability to easily out-split other comparable log splitters on the market and the power to make short work of even the hardest of Australian hardwoods.

Another important feature of the LS22BD Millers Falls Black Diamond 22 Ton Manual Start Hydraulic Log / Wood Splitter is the auto return control valve which automatically retracts the ram when you remove your hand from the lever so that you can load the next log with less time and effort.

The 90mm x 574mm hydraulic cylinder powered by the powerful 6.5 horsepower, OHV 4 stroke petrol engine allows the LS22BD Millers Falls Black Diamond 22 Ton Manual Start Hydraulic Log / Wood Splitter to build to maximum pressure at lightning speed taking even more time and effort out of the equation.

The large 13 inch pneumatic tyres, 50mm cast steel coupler on the drawbar and support leg mean that you can take your LS22BD Millers Falls Black Diamond 22 Ton Manual Start Hydraulic Log / Wood Splitter to wherever the timber to be split is on your property easily rather than having to cart all the wood to the splitter.

Why not take a lot of the time, effort and aching back out of chopping and splitting firewood the old fashioned and let the LS22BD Millers Falls Black Diamond 22 Ton Manual Start Hydraulic Log / Wood Splitter do most of the work for you?

Features and specifications:

  • Brand: Millers Falls Black Diamond
  • Model:  LS22BD
  • Engine: 6.5 horsepower, 4 stroke, OHV, air cooled
  • Manual (recoil) start
  • Hydraulic cylinder size: 90mm diameter x 574mm stroke
  • Automatic return control valve
  • Maximum splitting force: 22 ton
  • Wedge height 7” (178mm)
  • Split and return cycle time: 14 seconds
  • Maximum log length: 24” (610mm)
  • Working position: Horizontal only
  • Wheels and tyres: 13” pneumatic
  • Maximum recommended towing speed: 8 km/h
  • Package dimensions: 168cm x 42cm x 69cm
  • Package weight: 160kg
  • 12 months warranty
