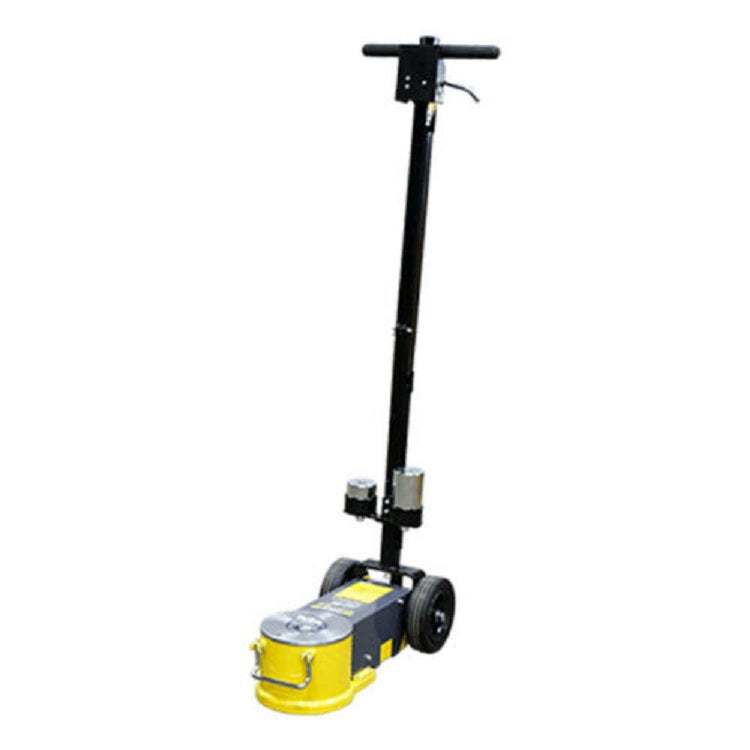

JACK – Trolley jack Multi Stage 25000 kgs / 10000 kgs Air Hydraulic Part No.: RY21-018 c10

JACK – Trolley jack Multi Stage 25000 kgs / 10000 kgs Air Hydraulic Part No.: RY21-018

Code No.: 10

Part No.: RY21-018

Shipping weight & size : 49 kgs & 711*381*305 mm

Description :

• 25000 kg lifting capacity
• Designed for heavy commercial use
• Air-hydraulic operation
• Lowered profile for low ground-clearance vehicles
• Hardened alloy-plated telescoping ram for maximum durability
• Heavy-duty steel saddle
• Large rubber wheels for easy maneuverability
• Compact design fits easily between tandem wheels
• Dead-man controls for safe operation

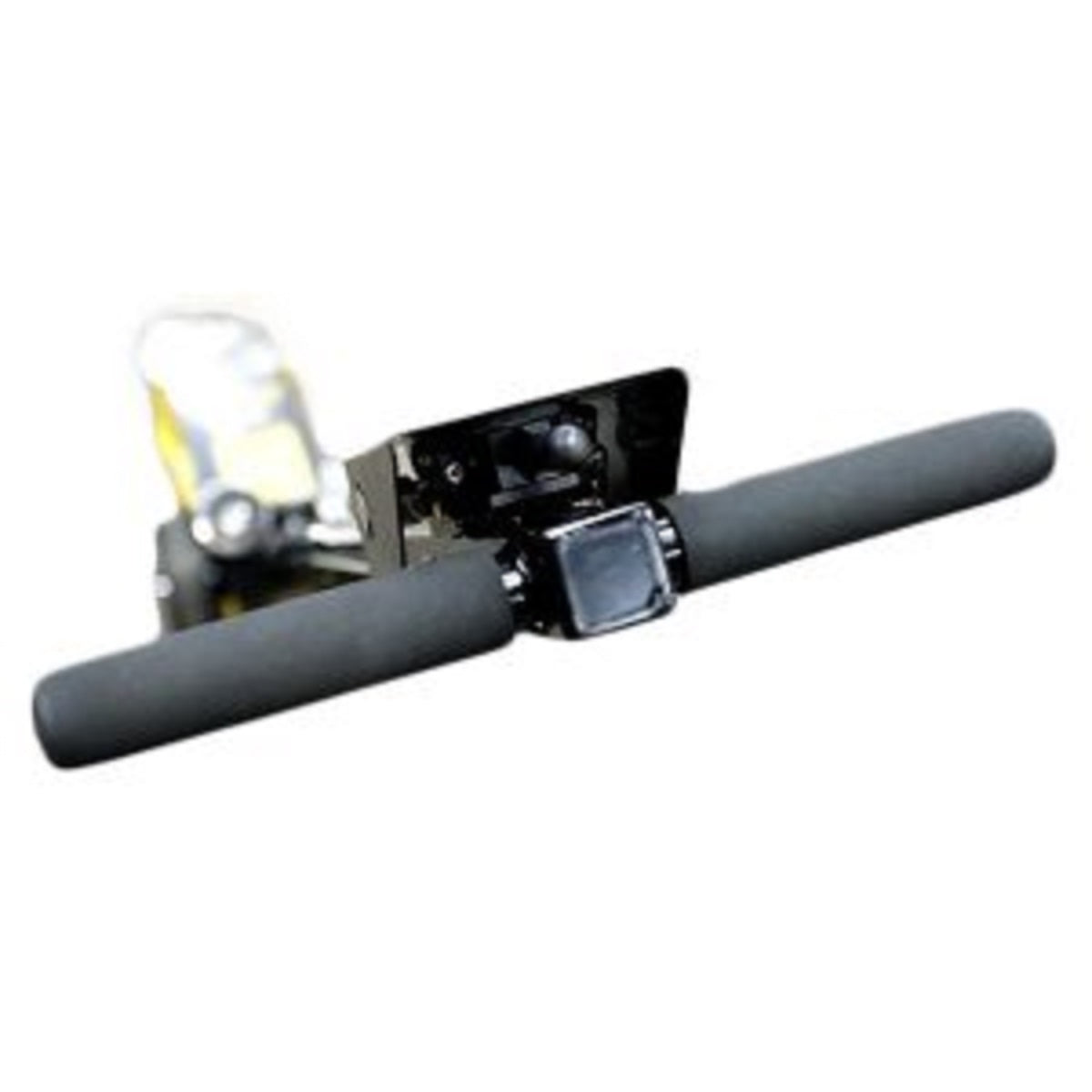

• Long “T” handle for easy positioning
• “T” handle can be locked in three different positions
• Double sealed for longer service life
• Air valve with integrated filter
• Heavy duty air motor provides maximum power
• Sealed hydraulic unit prevents contamination
• Built-in safety valve prevents jack from being used beyond its rated capacity

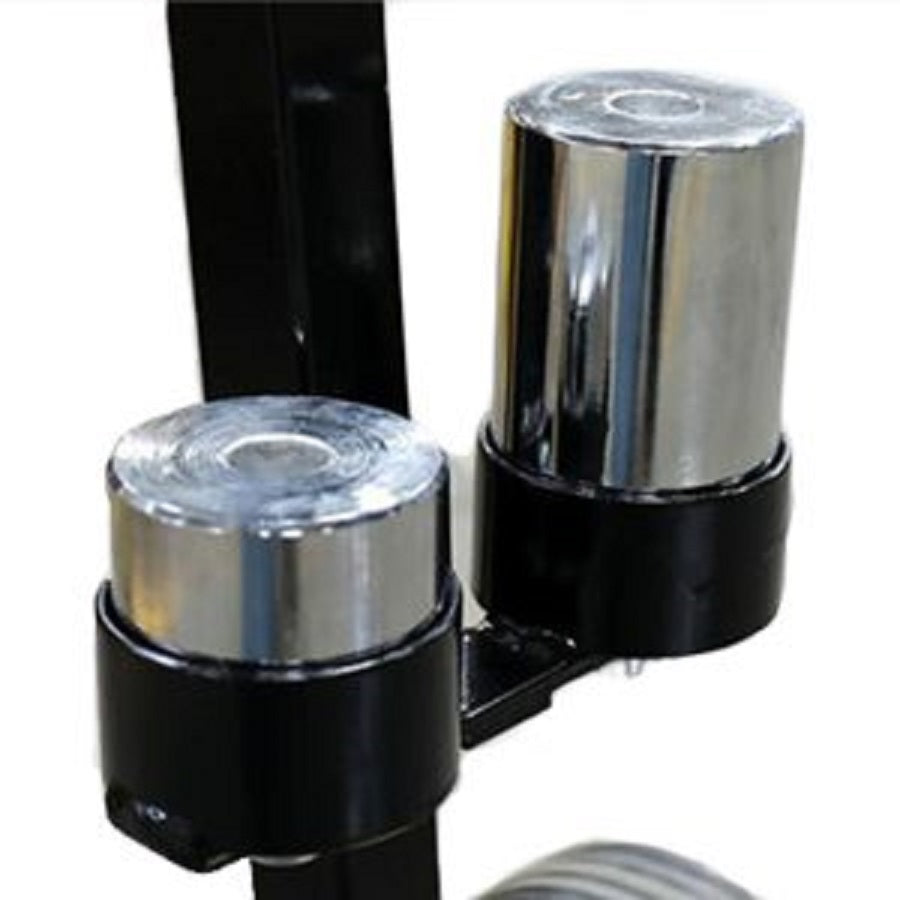

• Additional lifting saddles included
• Lifting capacity          -  1^st Stage 25000 kgs
• Lifting capacity          -  2^nd stage 10000 kgs
• Lowered Height         :  6.5 inch (150 mm)
• Raised Height            :  6 inch – 12 inches (152 mm – 305 mm)
• Chassis width            : 12.5 inch (318 mm)
• Chassis length           : 22.5 inch (572 mm)
• Shipping weight         : 110 lbs (49 kgs)
• Shipping dimensions  : 28”x 15”x 12” (711 mm x 381 mm x 305 mm)
• Australian standards AS-2615-2016
