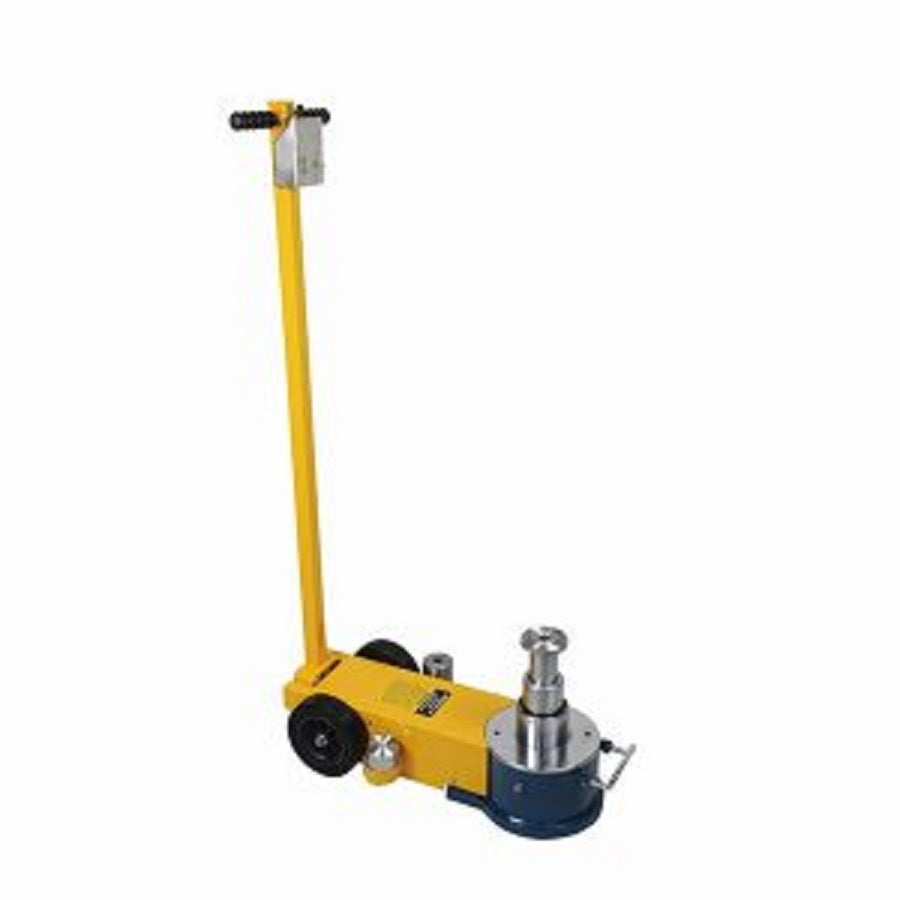

JACK – Three stages telescopic air trolley jack Part No.: RYD21-019
Code No.: 10
Part No.: RYD21-019
Shipping weight & size :
Description :
Heavy-duty air and hydraulic performance for truck and bus garages, equipment dealers, commercial service and more.
• Provides quick and effortless lifting for rated capacity loads.
• Quick lift without load.
• Self-retracting by air.
• Large rubber wheels for easy maneuverability.
•Long T-handle let you to easily position jack under vehicle.
•Meets ANSI/ASME PALD 2009 standards.
| Lifting Capacity – 1st Stage | 110,000 lbs. (50,000 kg) |
| Lifting Capacity – 2nd Stage | 55,000 lbs. (25,000 kg) |
| Lifting Capacity – 3rd Stage | 22,000 lbs. (10,000 kg) |
| Min Height | 6.5″ (150 mm) |
| Max Height | 14.5″(367 mm) |
| Air Pressure | 0.7-1.0Mpa |
