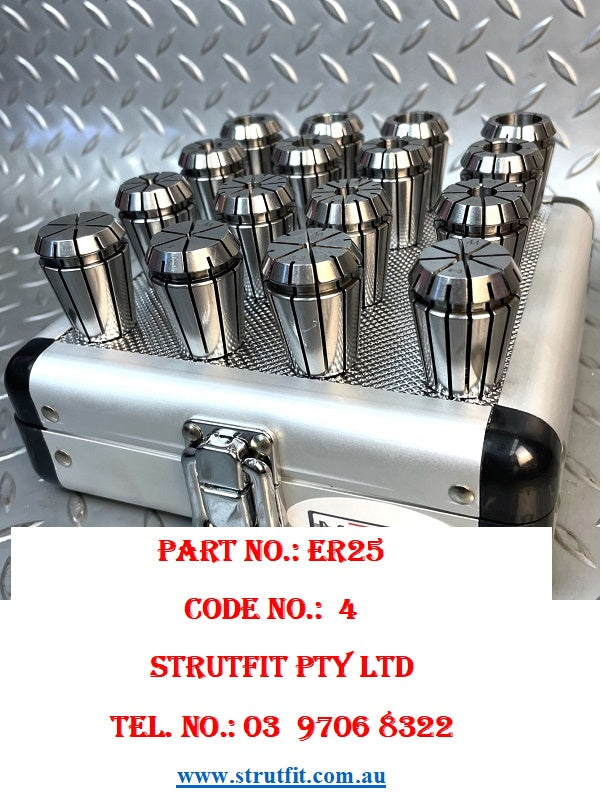

ER25 Collet Set 1-16mm 16 Pieces METEX Quality Accuracy 0.008mm Part No.: ER25 Code 4

ER25 Collet Set 1-16mm 16 Pieces METEX Quality Accuracy 0.008mm Part No.: ER25 Code No. 4

Code No.: 4

Part No.: ER25

Shipping weight & size :  3 kgs & 34*24*10 cm

Description:

Another Quality METEX product!

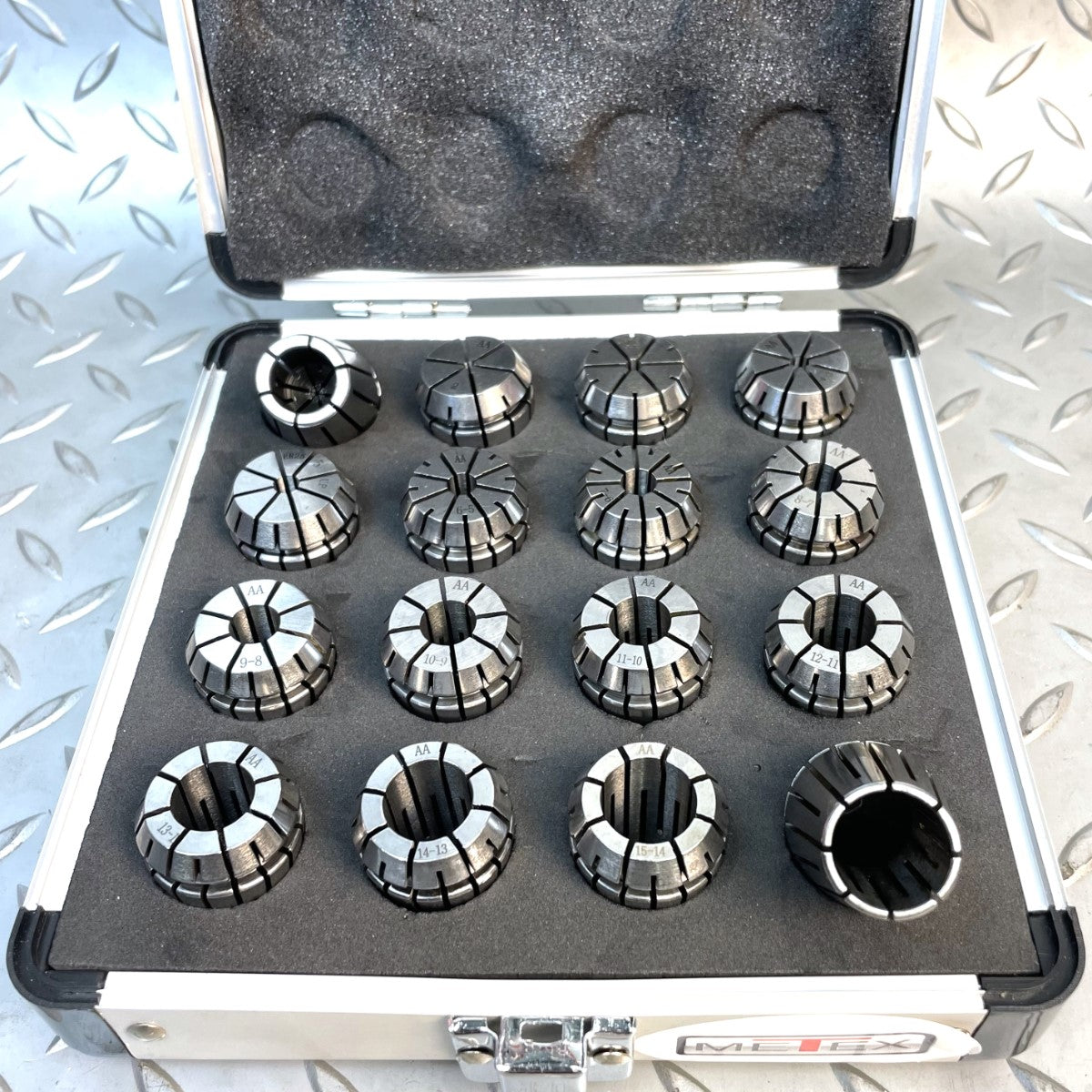

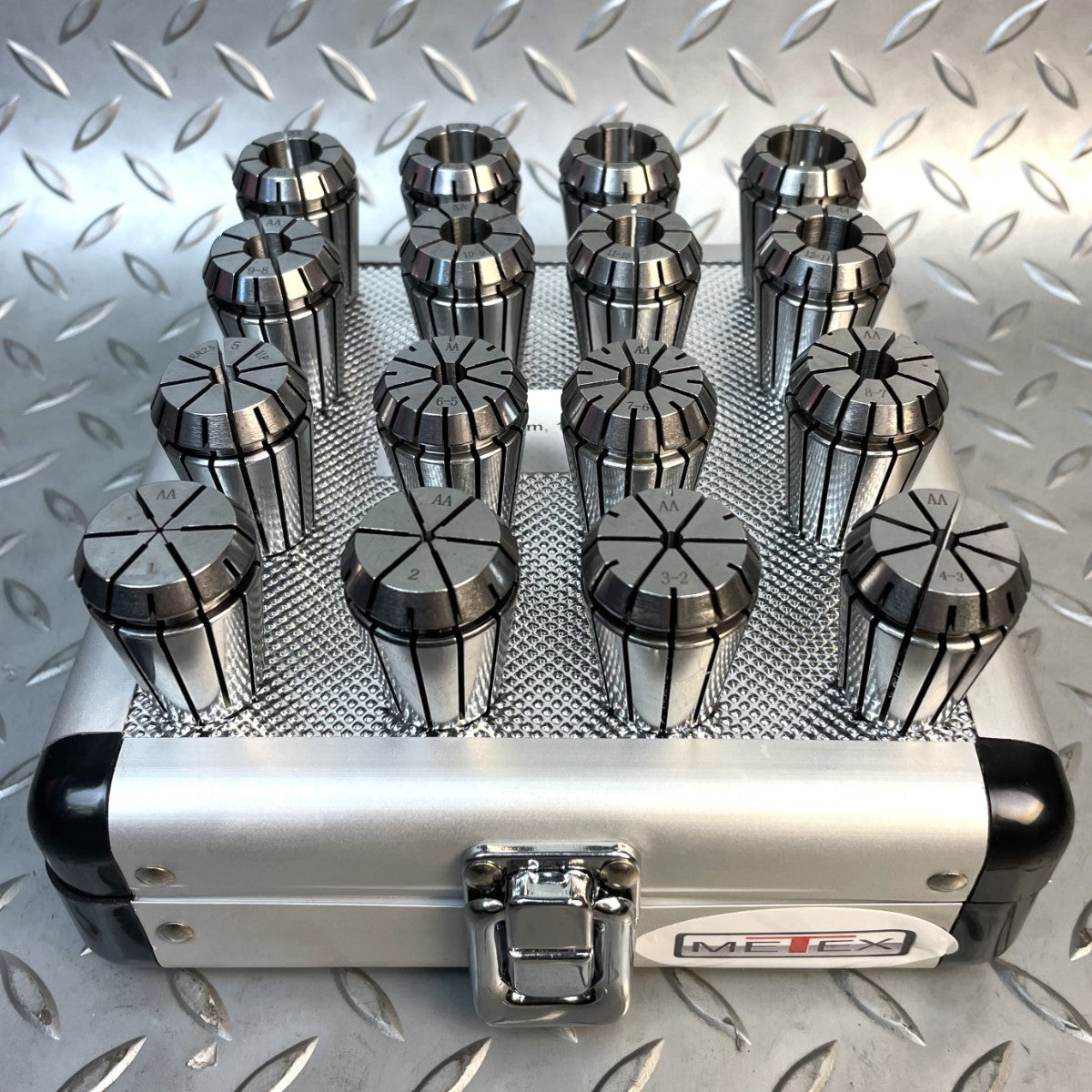

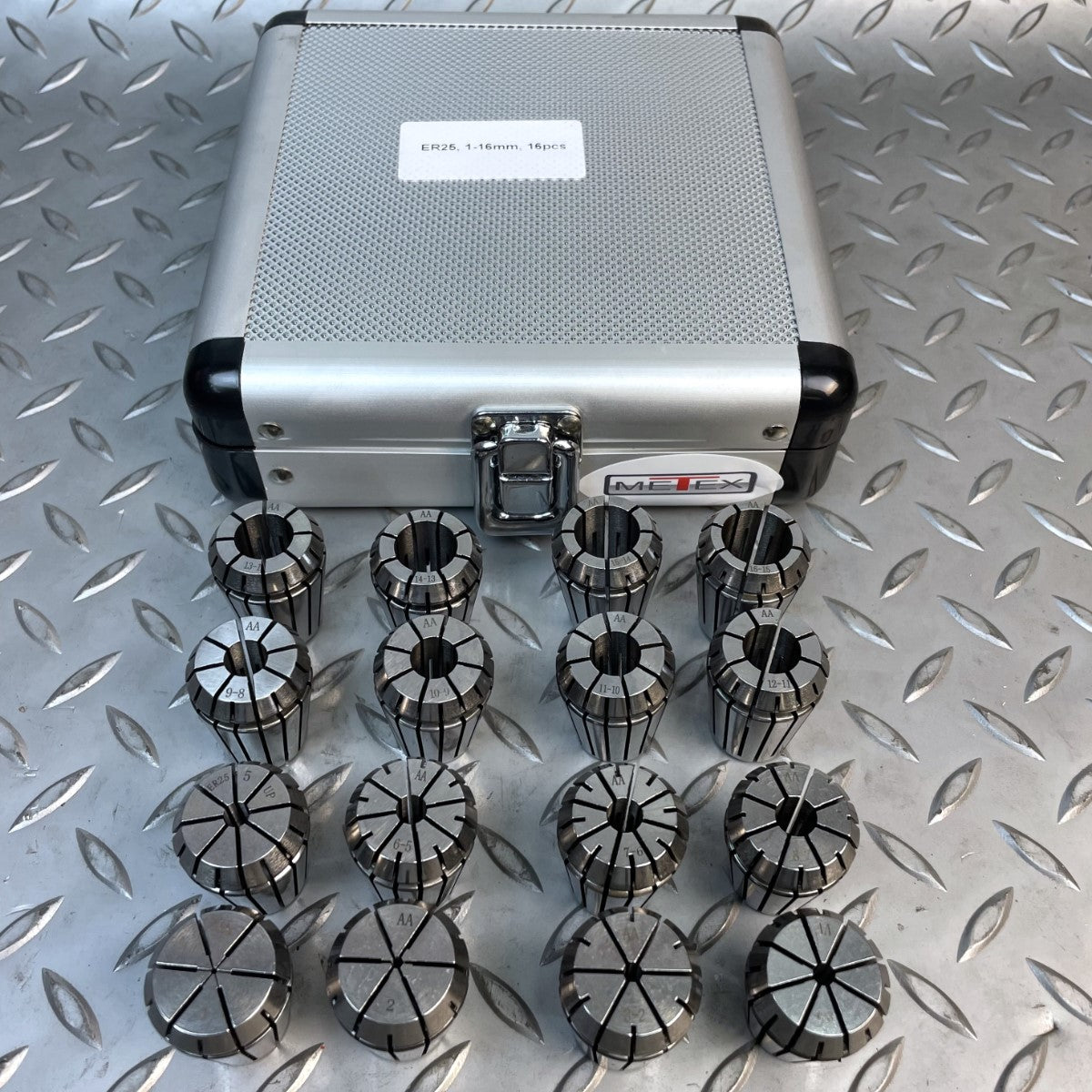

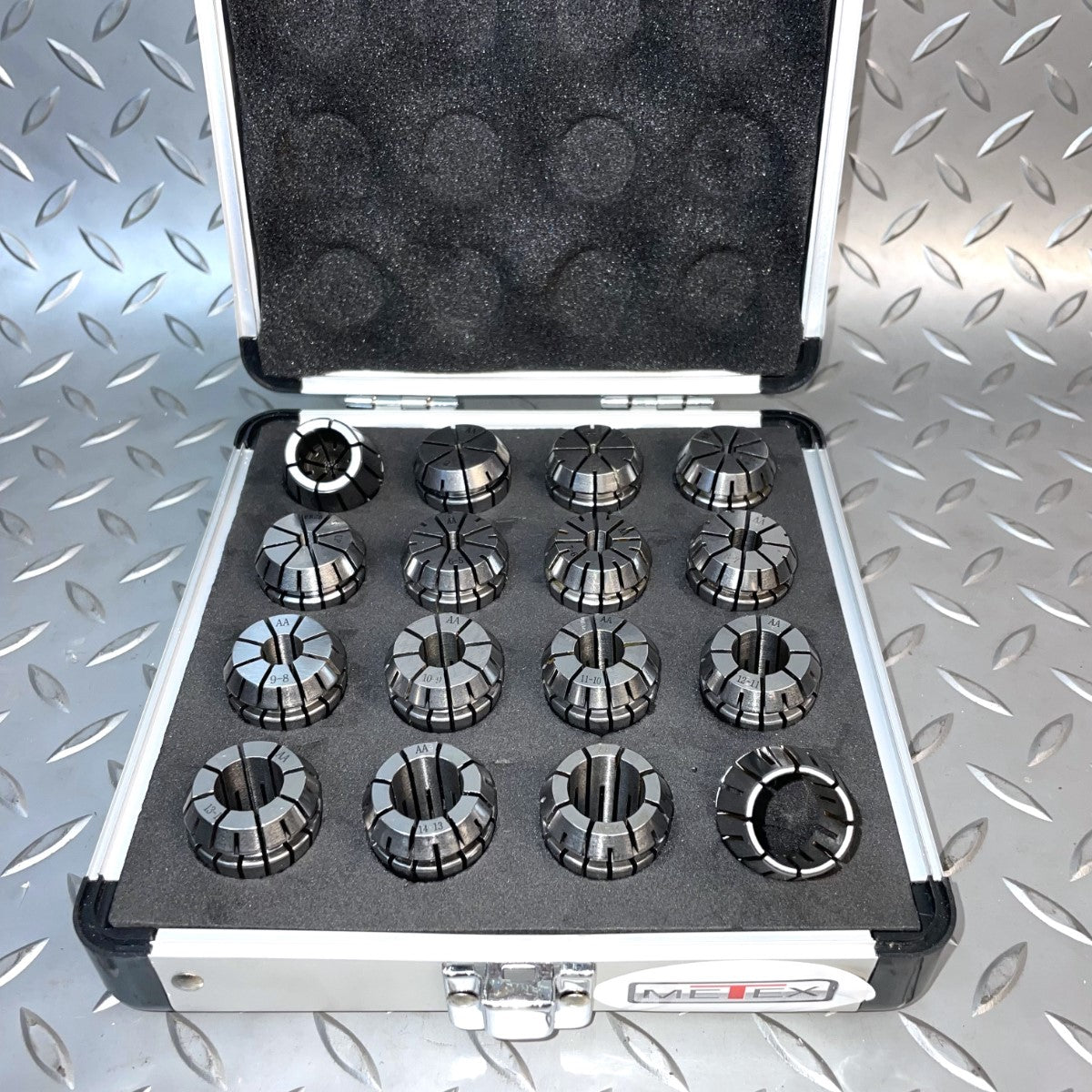

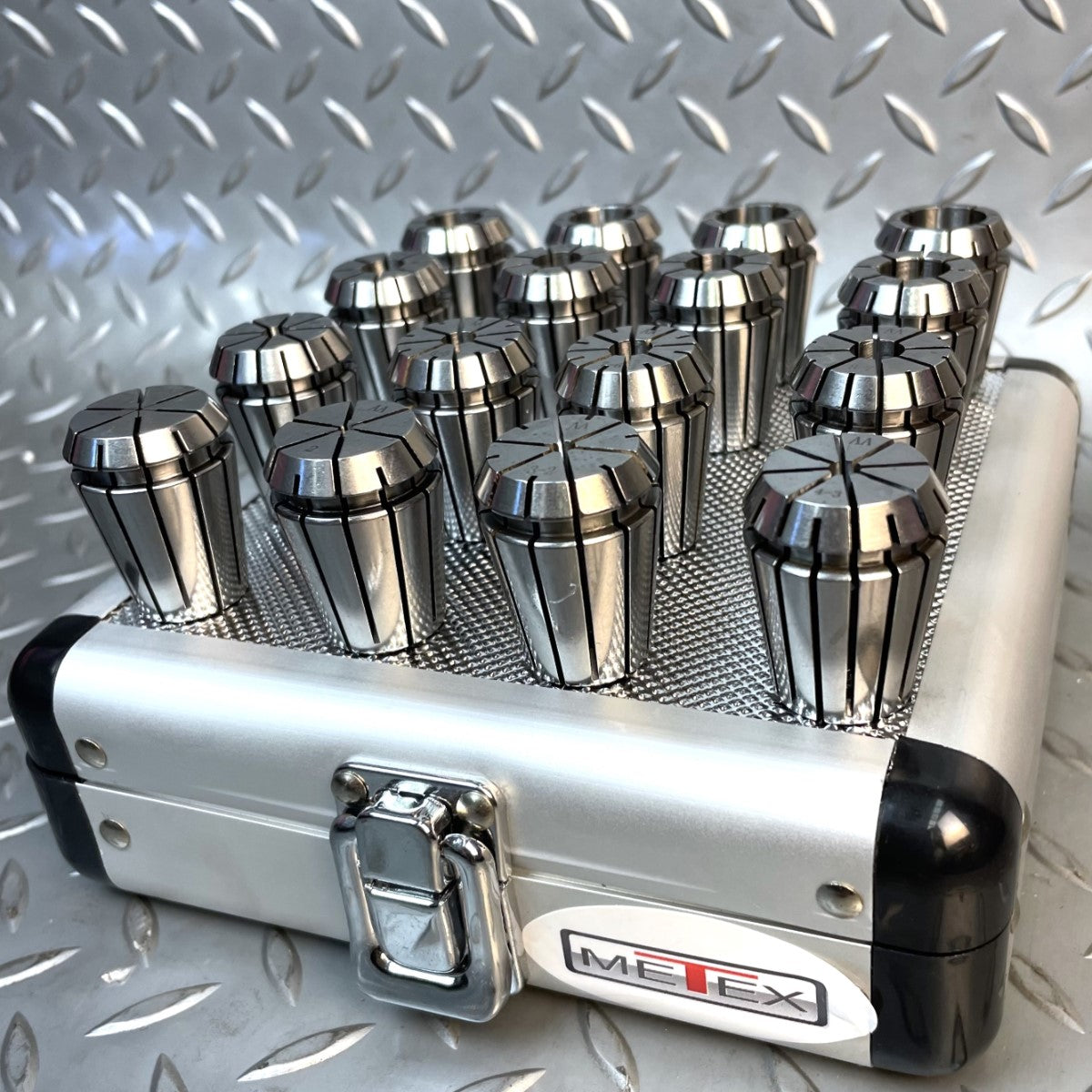

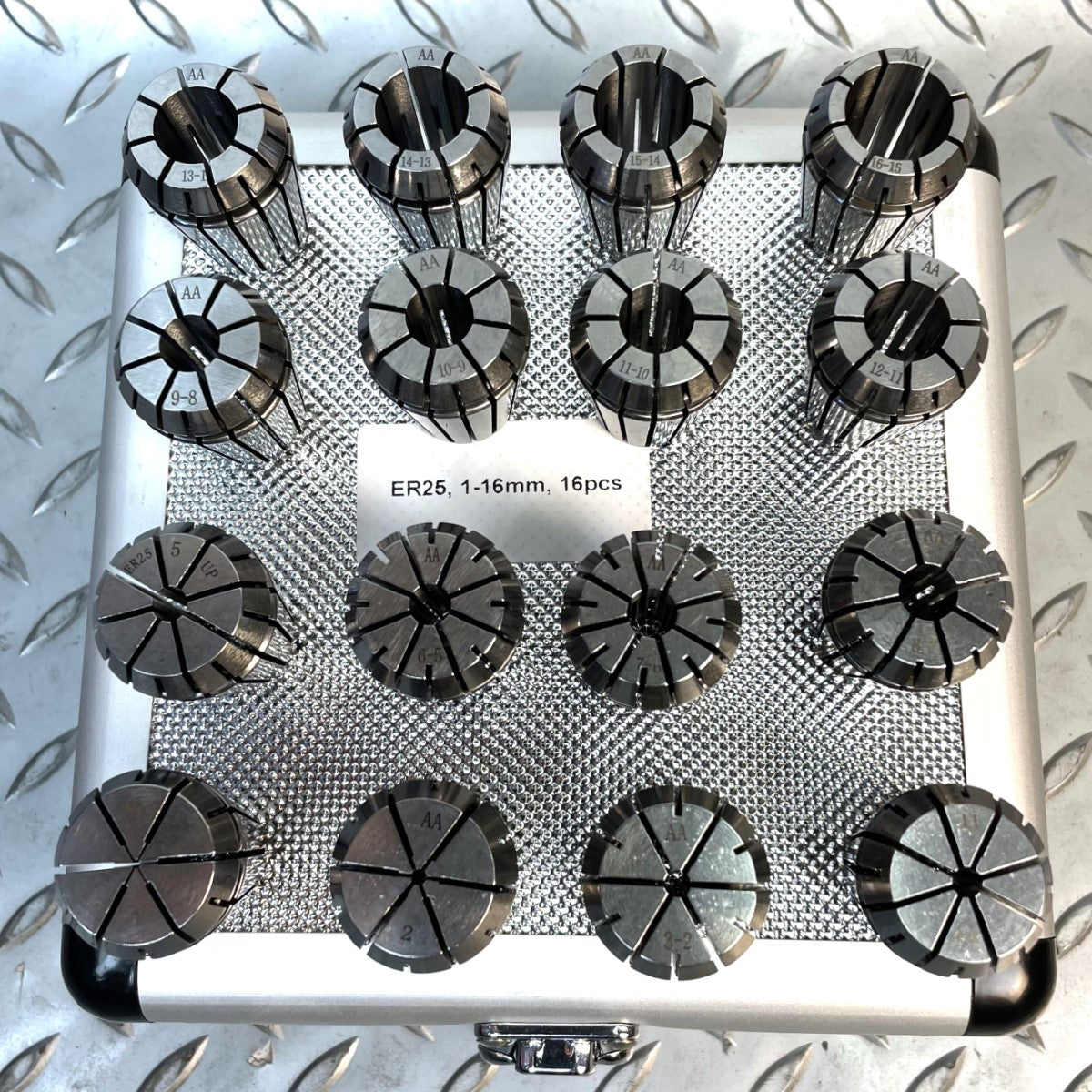

ER collets have a wide gripping range (about 1mm) which ensures you can clamp any cutter within the collets range of clamping. They provide a fast, easy and accurate way of holding end mills, fly cutters, saw mandrels and drill bits in milling machine spindles. When used in a lathe, they hold stock more accurately and have a better grip than chucks, and thin-wall tubes can be gripped without distortion. They’re quick to set up and can be used at high speed. Our ER25 collet set includes ‘snap-in’ collets for easy tightening. The case makes selection easy and offers good protection during storage.

The benefit of using these collets has five advantages compared to using other types of collets:

1. Self-centering
2. Speed chucking
3. Precision centering
4. Strong clamping force
5. Resistance against untightening

METEX ER25 Collet Only Set

• 16 Collet Sizes
• Accuracy 0.008mm

Collet Sizes (mm):

• 2 – 1
• 3 – 2
• 4 – 3
• 5 – 4
• 6 – 5
• 7 – 6
• 8 – 7
• 9 – 8
• 10 – 9
• 11 – 10
• 12 – 11
• 13 –12
• 14 – 13
• 15 – 14
• 16 – 15

Additional Information :

N.B.  Colour may vary. Picture is for illustration purposes only.
