Strutfit

CONCRETE GROOVING MACHINE 13hp Millers Fall engine Part No.: CPGM180HC Code No. 1

CONCRETE GROOVING MACHINE 13hp Millers Fall engine Part No.: CPGM180HC Code No. 1

Regular price $1,453.50 AUD
Regular price Sale price $1,453.50 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

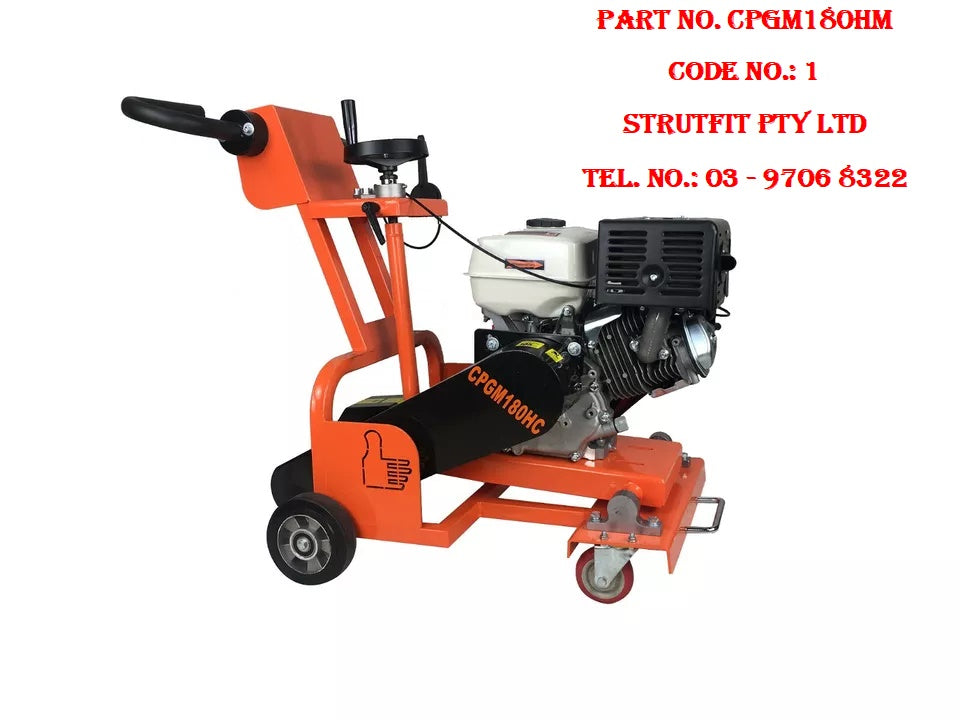

CONCRETE GROOVING MACHINE 13hp Millers Fall engine Part No.: CPGM180HC

Code No.: 1

Part No.: CPGM180HC

Shipping weight & size : 91 kgs & 103*68*96 cm

Description :

FEATURES

The Millers Falls CPGM180HC Concrete Groover is a compact and maneuverable machine that can be used for a multitude of grooving and grinding applications. This unit is perfect for concrete grooving, grinding or roughing for repair work or anti slip applications.

Great for grooving and grinding projects where large machines cannot access. Ideal for enlarging cracks in footpaths, roads or concrete areas to enable a more permanent repair job.

RELIABILITY

Heavy duty construction to handle small or big jobs. The unit is supplied with a powerful Millers Fall 13HP engine fitted with a triple belt drive to the heavy-duty cutting head providing maximum torque and trouble-free use. High speed performance is all but guaranteed.

SAFETY

Useful for creating textured anti-slip areas for improved traction on slippery concrete surfaces. Safety switch fitted as standard. Fully enclosed V-belt for greater safety and trouble-free use.

EASY OPERATION

Groove depth can be easily adjusted using the robust winder handle. Vibration absorbing handles for ease and reduced operation fatigue.

Features & Specifications

  • Brand: Millers Falls
  • Model: CPGM180HC
  • Type: Concrete floor groover
  • Engine: Millers Falls 390F
  • Engine type: Air-cooled, single cylinder, 4-stroke
  • Engine power: 13hp manual start
  • Power train: Triple belt driven
  • Blade diameter: 180mm (20mm arbor)
  • Blade thickness: 8 mm
  • Blades supplied: 1 (can be used with 2 blades)
  • Extra blades available: Yes
  • Blade speed: 3000r/min
  • Groove Depth: 0-40mm
  • Groove width (single blade) 8-10mm
  • Groove width (twin blade): 16-20mm
  • Cutting speed: 2-4m/min
  • Net dimensions: 98 x 63 x 91cm
  • Net weight: 81kg
  • Colour may vary
