LAST 3 IN STOCK AT SALE PRICE $1780

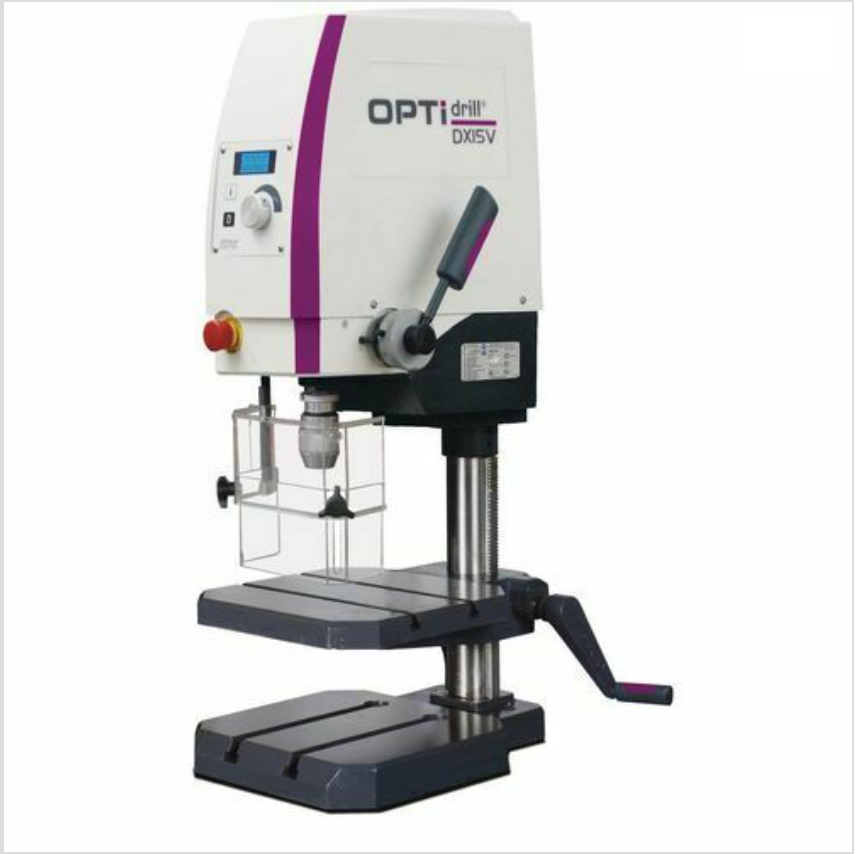

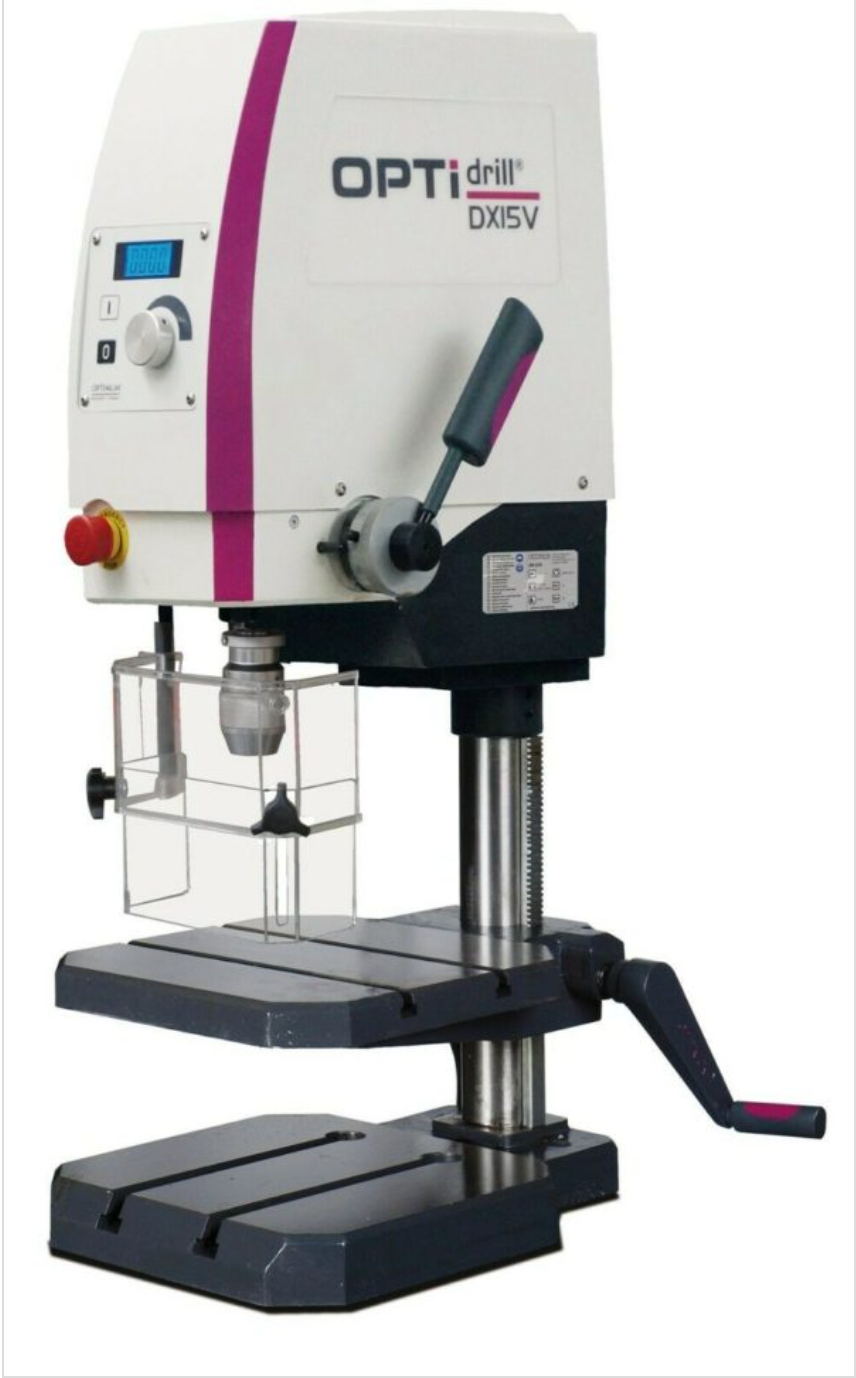

BENCH DRILLING MACHINE Industrial METEX Precision High Speed 3000rpm Part No : DX15V
Code No : 4
Part No : DX15V
Description: 75 kgs & 105*55*45 cm
Precision drill press with METEX by OPTIMUM brush-less controller for electronic, continuously variable speed with the best easily repeatable depth stop !
Precision drill press machine with METEX by OPTIMUM brush-less controller for electronic, continuously variable speed.
Get the best of both worlds METEX is the trusted Australian brand made for Australian standards and conditions made by OPTIMUM with their German Precision design and Quality control.
FEATURES:-
- Height adjustment of the drilling table via rack
- Best power transmission due to wide multi groove belt and aluminium pulleys
- Emergency-stop push button

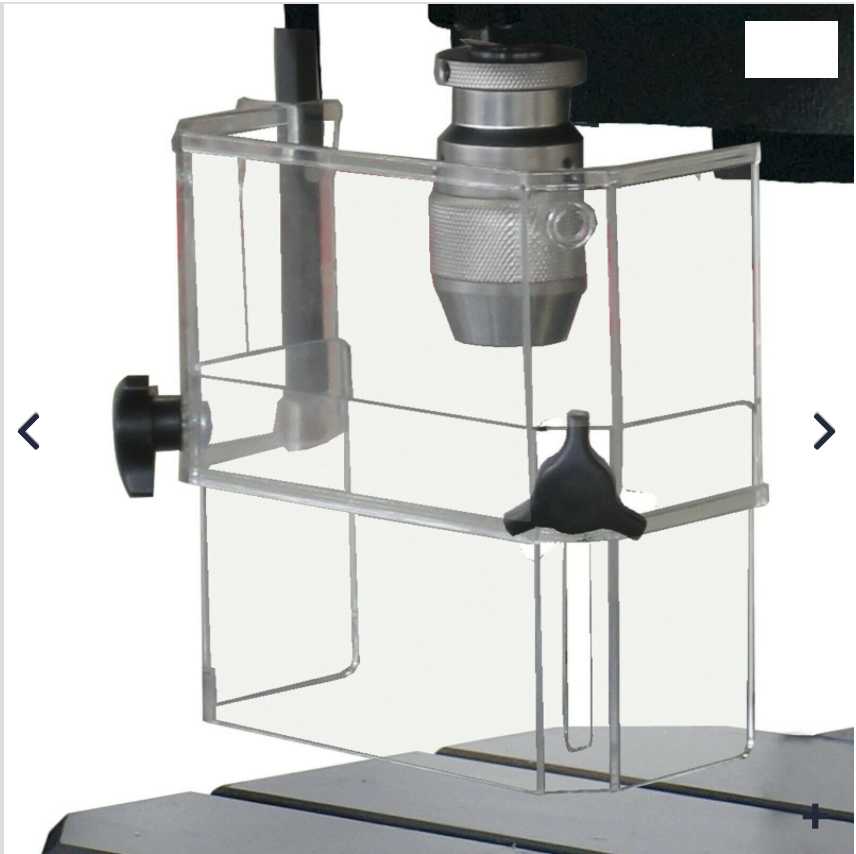

- Micro switch safety chuck cover
- Drilling spindle with precision ball bearings

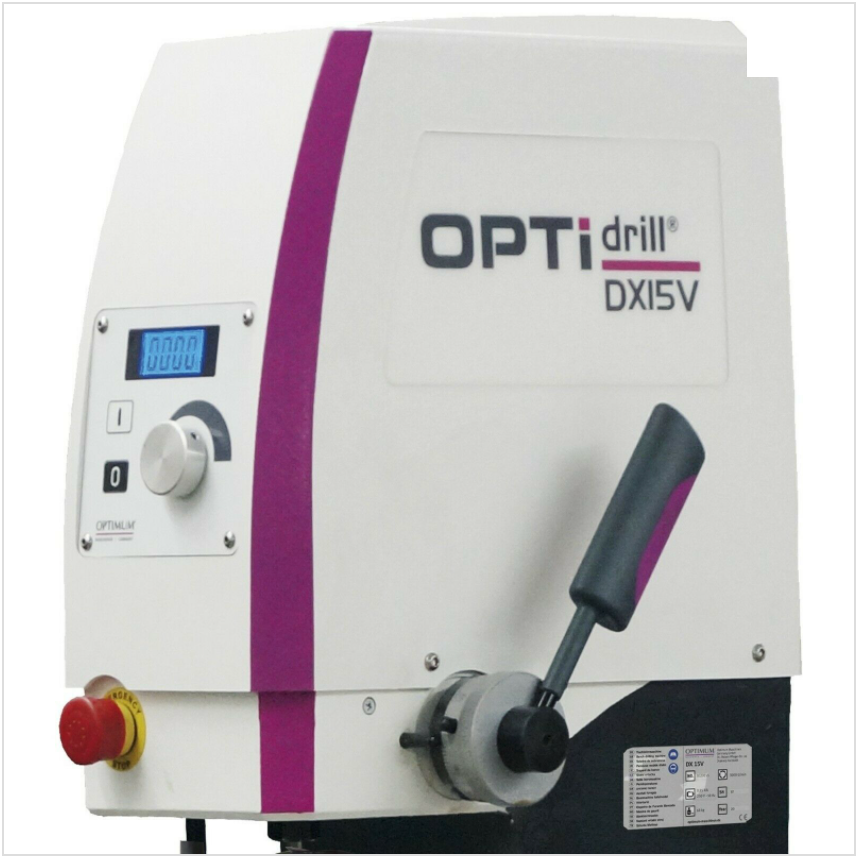

- Digital speed indicator
- Infinitely variable speed control
- Easy fast and accurate drill depth stop
- High-contrast display
- 360 degree swivel head
- Wide rpm range 100-3100 rpm
- Siemens frequency converter
- Dual 14mm T-slot grove in base
- Optimum 0-13mm/B16 Keyless high speed chuck
Additional Information :
|
Weight |
75.00 kg |
|
Dimensions |
105 × 55 × 45 cm |
|
Motor |
850w – 240v/50Hz Single Phase |
|
Power |
240v |
|
Spindle Speed |
100-3000rpm |
|
MPN |
Does Not Apply |
|
Drilling Capacity Steel |
015mm |
|
Throat depth |
235mm |
|
Drive Type |
Belt |
|
Brand |
METEX by OPTIMUM |
|
Chuck Size |
0-13MM Keyless |
|
Product Type |
Drill Presses |
|
UPC |
Does Not Apply |
|
Spindle Taper |
2MT |
|
Model |
DX15V |
|
Featured Refinements |
Bench Drill Press |
|
Number of Speed |
Variable |
|
Power Source |
Electric |
|
Stand Type |
Bench |
|
Drill Travel |
60mm |
|
Machine Type |
Bench Drill Press |
|
Custom Bundle |
No |
|
Modified Item |
No |
|
Voltage |
240 V |
|
Amperage |
10.0 amps |
|

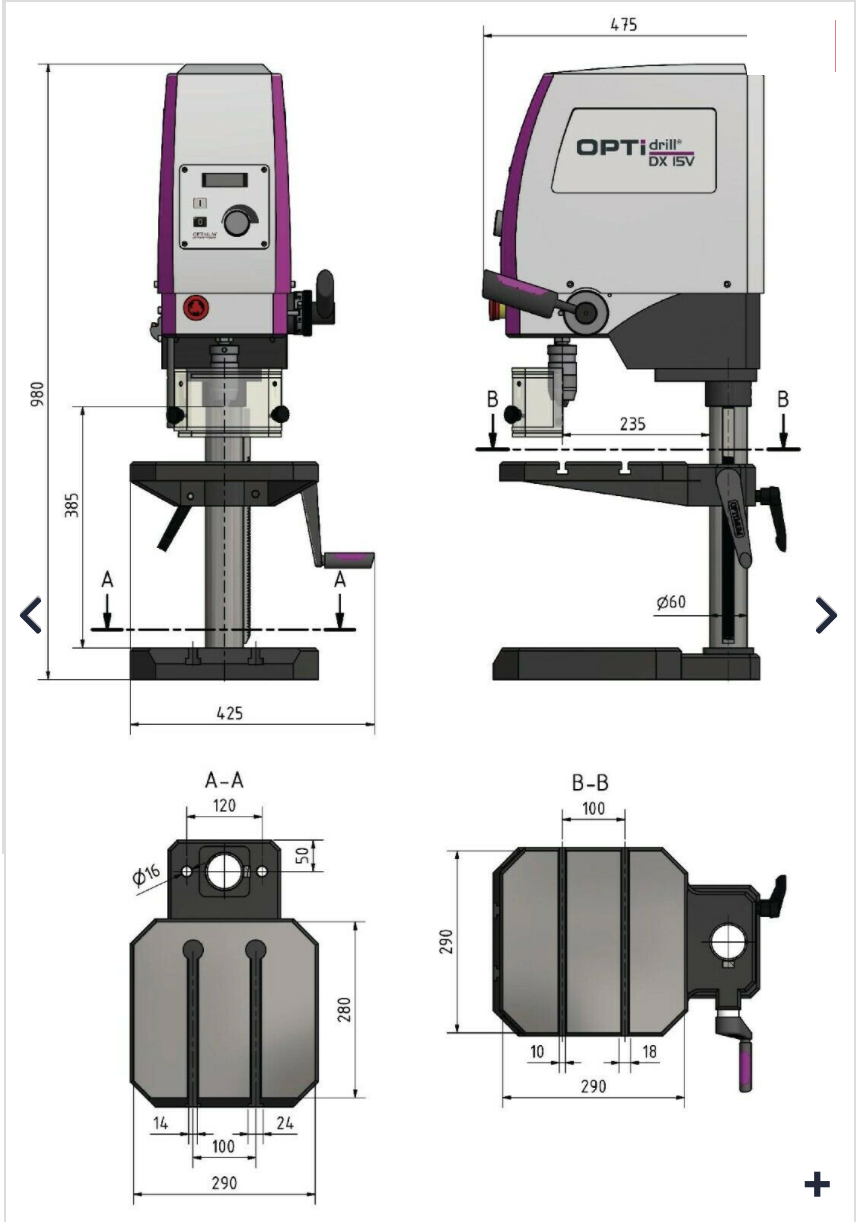

Drilling Table L x W |
290x290mm |
|
Drilling Table Turnable |
360° |
|
Max. Distance drill chuck to Drilling Ta |
355mm |
|
Base L x W |
290x280mm |
|
Base T-slot size / number / distance |
14mm/2/100mm |
|
Max. Distance chuck - machine base |
375mm |
|
Column diameter |
060mm |
