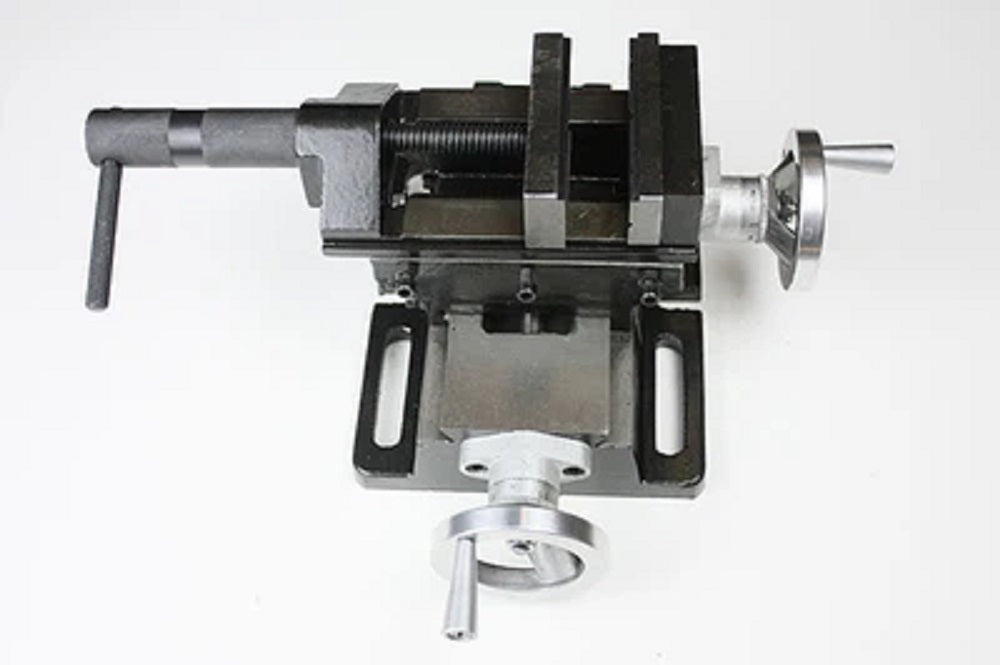

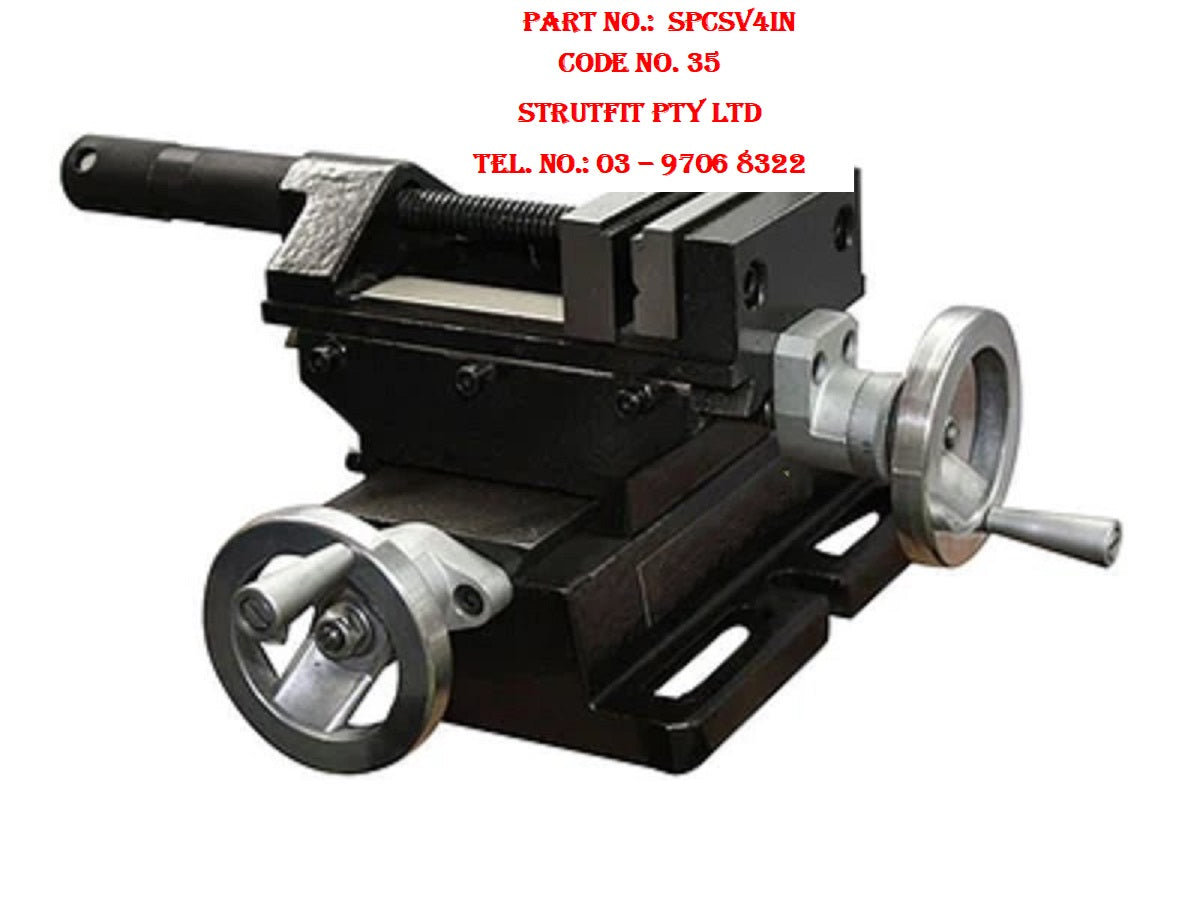

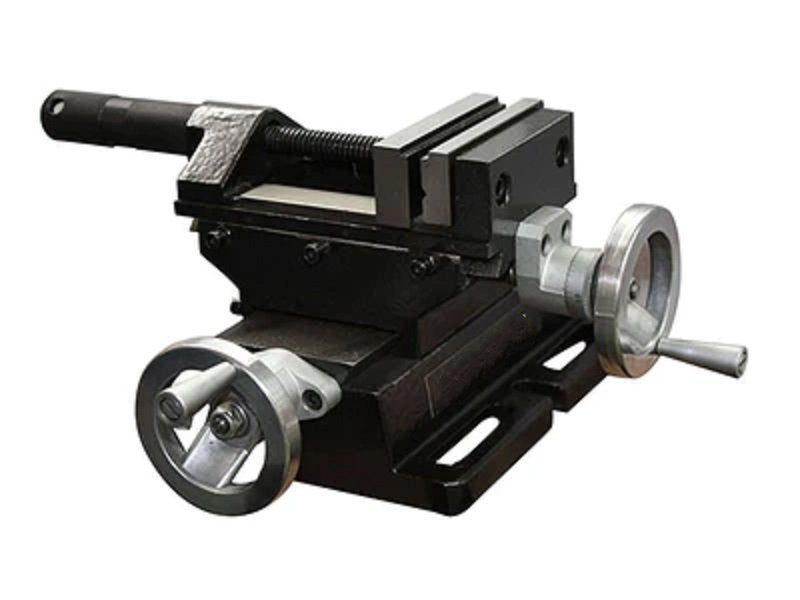

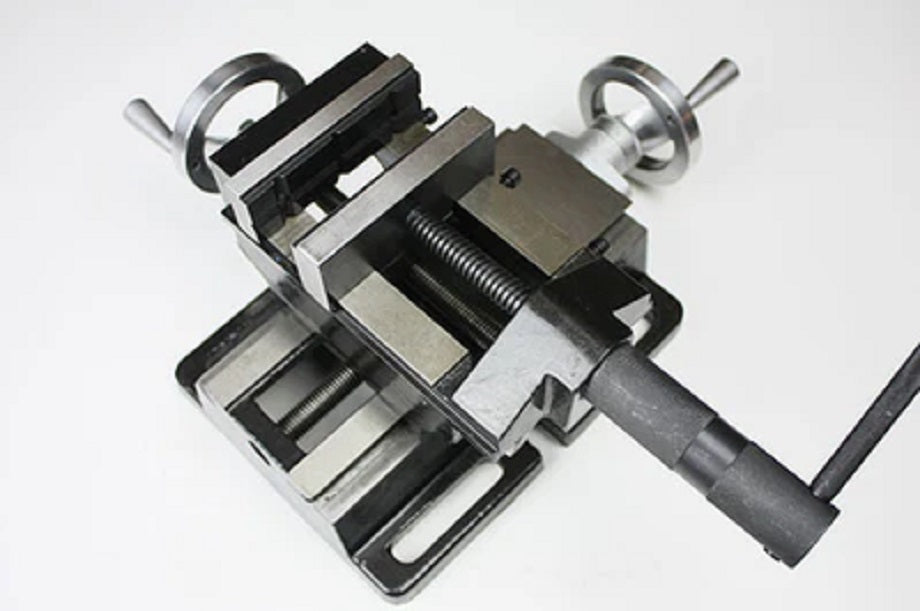

4 inch Precision CROSS SLIDE VICE Part No.: SPCSV4in Code No.: 35
Code No.: 35
Part No.: SPCSV4in
Shipping weight & size : 11 kgs & 40*35*22 cm
Description
Introducing the 4" Precision Cross Slide Vice – your precision tool for accurate drilling and milling. With a 100mm jaw width, this vice travels 110mm on the X-axis and 70mm on the Y-axis, ensuring smooth and precise movement. Its positive positioning in two coordinates makes it ideal for achieving accuracy in your projects. Upgrade your workshop with thid 4” Precision Cross Slide Vice for unmatched quality and precision. Order now to enhance your drilling and milling processes!
4" Precision Cross Slide Vice Features:
- Dual-axis capability in X and Y for versatile machining
- Sturdy cast iron construction ensures durability
- Meticulously machined for precision use

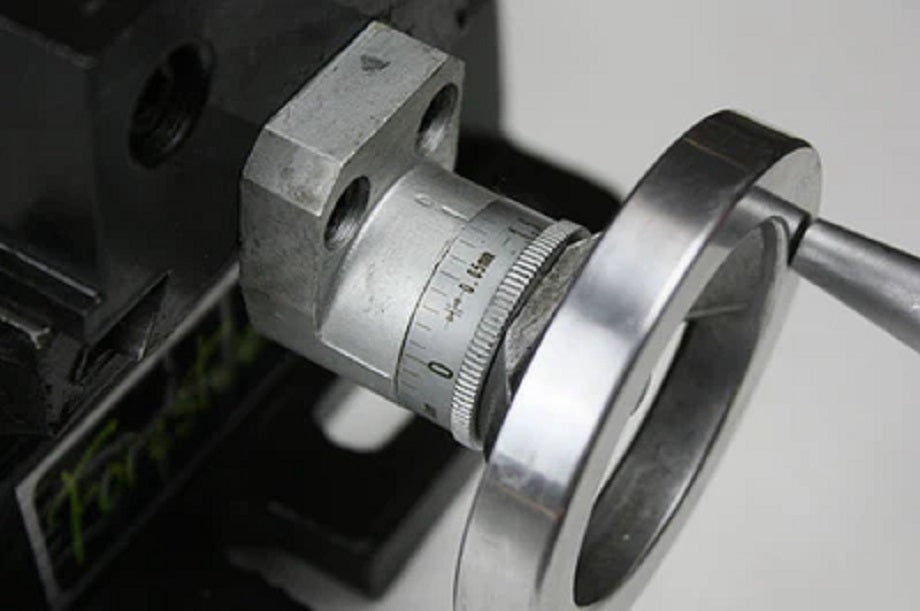

- Jaw opens up to 98mm with 0.05mm graduation
- Smooth travel enhances overall accuracy in applications

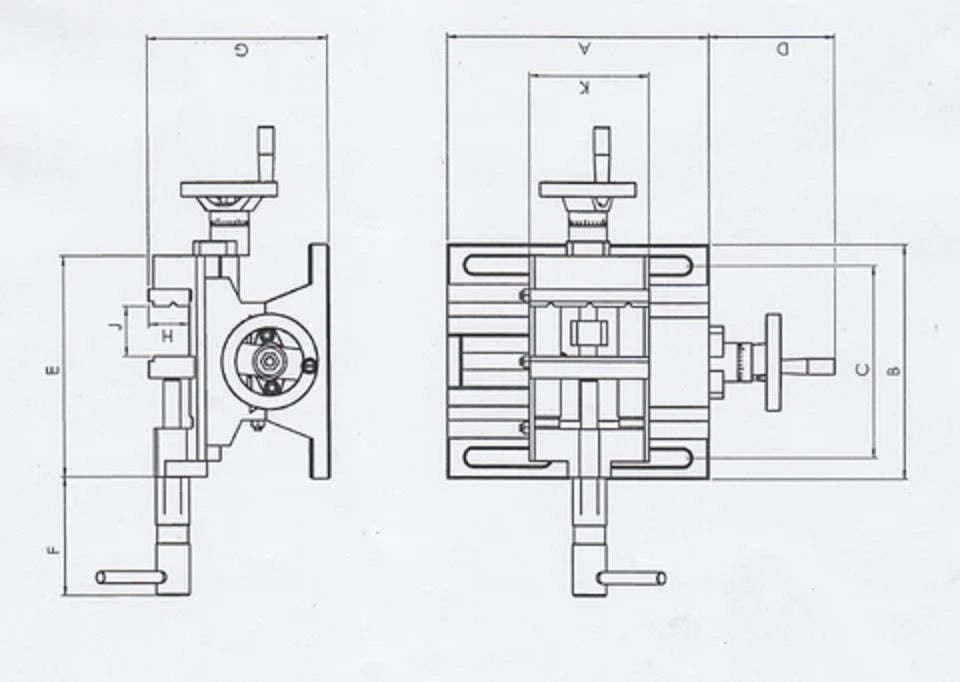

Specifications:
|
A |
B |
C |
D |
E |
F |
|
|
|
218mm |
175mm |
140mm |
105mm |
184mm |
100mm |
|
|
|
G |
H |
J |
K |
X Travel |
Y Travel |
|
|
|
156mm |
34mm |
85mm |
100mm |
110mm |
70mm |
|
|
|
Model |
4" Precision Cross Sliding Vice |
||||||
|
Jaw width |
100 mm |
||||||
|
Jaw opening |
98 mm |
||||||
|
Packing Size (LxWxH) |
400x350x220 mm |
||||||
|
N.W./G.W. |
10/11kg |
||||||
N.B. Colour may vary
