3 cylinder Cast Iron V Type AIR COMPRESSOR PUMP Part No.: ACBPUMP3090 Code 1

3 cylinder Cast Iron V Type AIR COMPRESSOR PUMP  Part No.: ACBPUMP3090 Code 1

Code No.: 1

Part No.: ACBPUMP3090

Shipping weight & size :  40KG CRATE X 61X35X41CM

Description :

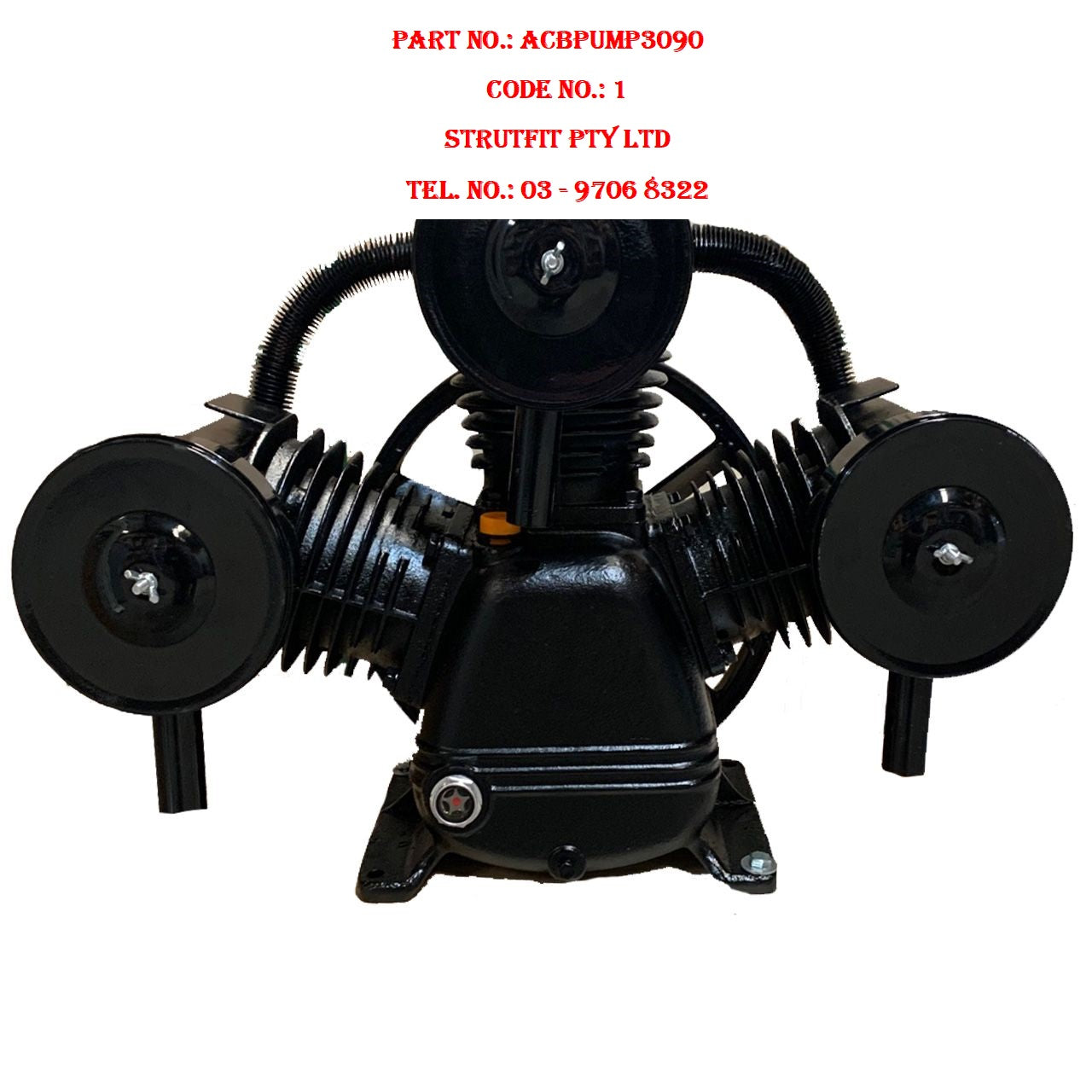

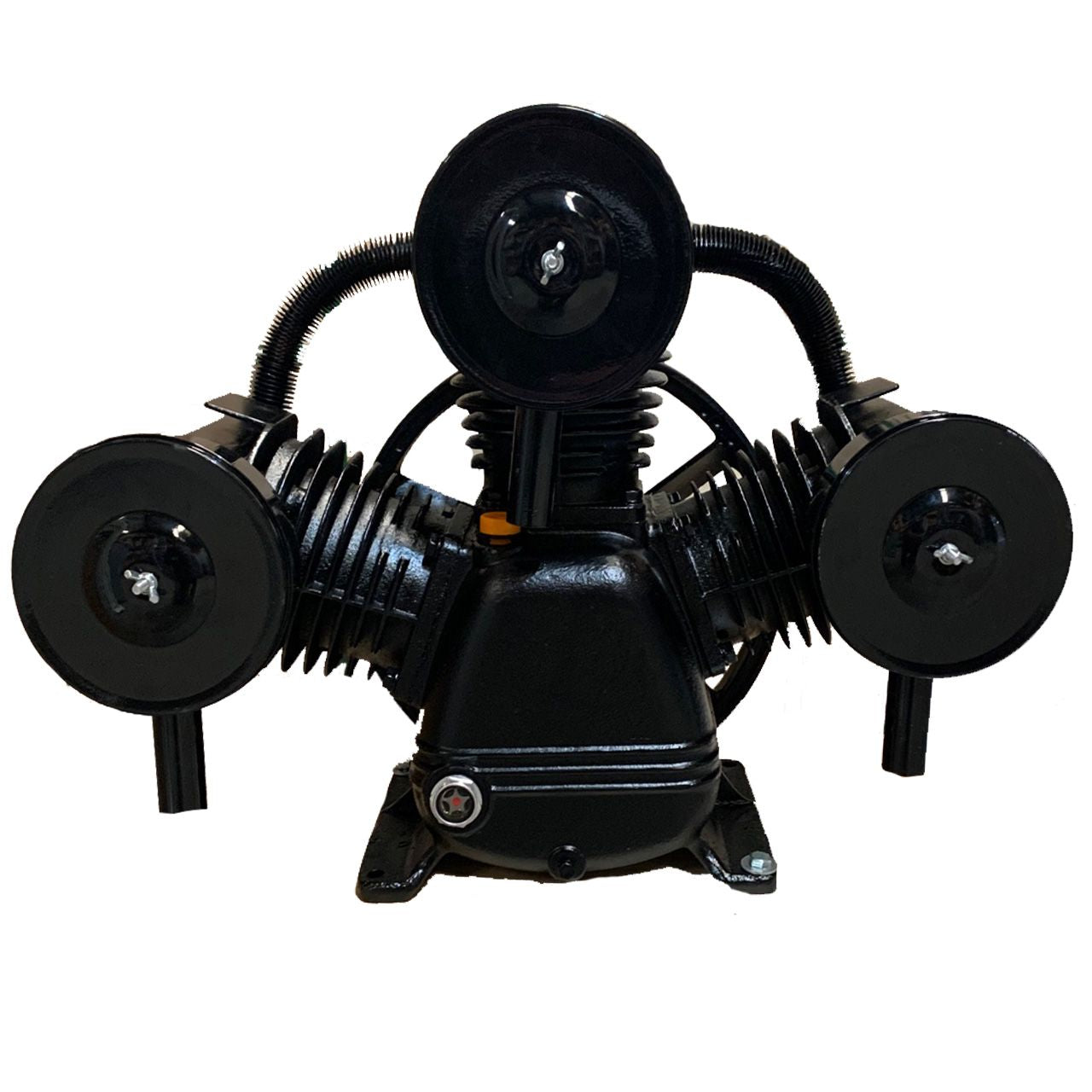

AIR COMPRESSOR PUMP 3 Cylinder Cast Iron V Type

ACBP3090

This pump free air delivery of 32CFM (900lt/min) at 125PSI. It is a slow revving cast iron pump that is tried and trusted air pump ready to operate in any capacity. This pump has the advantage of producing more air at slower revolution meaning that your pump will last longer and run cooler than a single cylinder or a twin cylinder air pump. These pumps are constructed of cast iron and 100% rebuildable. These are dependable and robust air pumps.

Millers Falls three cylinder cast iron single stage air compressor pump. This pump is most commonly used on 3 phase electric or petrol driven air compressors and mounted on an air receiver.  The most common motor size used with this pump ranges from 5HP - 7.5HP three phase electric or 15HP Petrol engines. The pump comes complete with intake filters and flywheel.

The Millers Falls Belt Driven Air Compressor pump has a displacement of a 900 litre per minute (33 CFM) displacement 750L/min delivery rate at 8 bar (26 CFM) at 980 RPM. One of the standout features of this model is its comparatively high air output. With 750 Litres per Minute of actual Free Air Delivery (F.A.D.) at 8 BAR this compressor pump can comfortably run most air tools.

Features:

Three Cylinder Cast Iron Pump

Cast Iron Cylinder and Crankcase

Durable - High quality components & fittings.

Specifications:

ACBP3090

Recommended Working Pressure: 115 PSI

Recommended RPM: 900-1200

Displacement: 900L/min Max (33cfm)

Power Required: 5000 W (7.5HP) Electric

Power Required: 15 HP Petrol / 10HP Diesel

Air Flow @ 8 Bar: 850L/min

Air Flow @ 4 Bar: 980L/min

Noise: 80dB

Pump: 3 x 90mm Cylinders

Flywheel Diameter:  mm

Package Size 50x30x45 cm

Weight – G.W = 25kg   N.W = 20kg

N.B.  Colour may vary
