STRUTFIT

CAR HOIST - 2 Post Hoist – 4.5 Ton Clear Floor Part No: 2P4.5CLEARFCH Code No.: 3

CAR HOIST - 2 Post Hoist – 4.5 Ton Clear Floor Part No: 2P4.5CLEARFCH Code No.: 3

Regular price $3,549.00 AUD
Regular price Sale price $3,549.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

CAR HOIST - 2 Post Hoist – 4.5 Ton Clear Floor Part No: 2P4.5CLEARFCH Code No.: 3

Code No.: 3

Part No.: 2P4.5CLEARFCH

Shipping weight & size : 780 kgs & 359*50&100 cm

Australia’s best selling 2 Post Hoist. Designed to fit a wide range of sheds — It’s the perfect choice for commercial workshops and car enthusiasts that want to get serious about their hobby.

Clear Floor Hoist Features

  • 4500kg/ 4.5 ton safe load limit
  • Lifting height of 1.9m (plus screw pad adjustment and raising adapters)
  • Dual hydraulic cylinders lift the carriages by direct hydraulic force
  • Adjustable screw pads and 4 additional raising adapters are included
  • Strong single piece column design
  • Durable powder coated finish
  • Rubber door protectors
  • Symmetric two and three stage arms
  • No floor plate restrictions

Safety Features

  • Manual safety locking system with safety latches in each column
  • Single point release system
  • Heavy duty 6mm thick columns & carriages
  • 10mm steel wire rope equalising cables

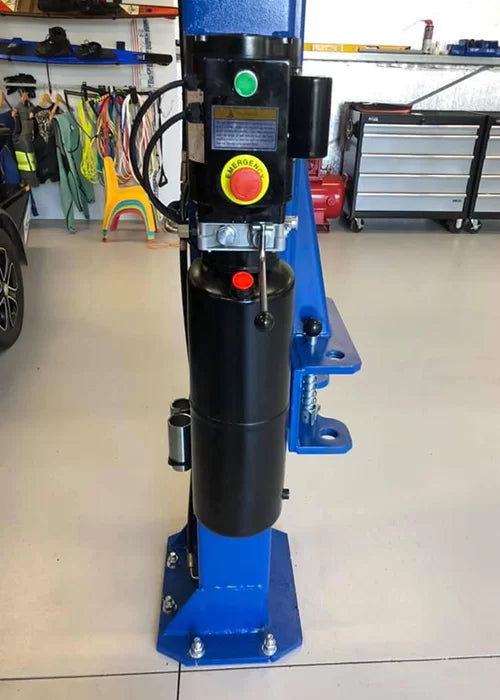

  • Anti-surge valve in the hydraulic power unit

What’s Included?

  • 2 post hoist with all bolts, cables, lines and fixings
  • 240V single phase hydraulic power unit
  • Concrete anchor bolts
  • Detailed installation instructions

What’s Not Included?

  • Hydraulic oil
  • Setup of power units electrical connection

Shed Requirements

  • 125mm deep concrete at 32mpa
  • Minimum ceiling height of 3.8m

Warranty & Certifications

  • 3 year Australian warranty* includes structure, hydraulics & electrics
  • Australian WorkSafe registered design
  • CE certification

Specifications :

MINIMUM CONCRETE THICKNESS

125MM 32MPA

MOTOR

240V 20A SINGLE PHASE

MAX RISE FROM THE GROUND

1910MM

OVERALL HEIGHT

3650MM

OVERALL WIDTH

3551MM

CARRIAGE HEIGHT

1450MM

DRIVE THROUGH CLEARANCE

2658MM

SWITCH OFF LEVEL

3461MM

LIFTING PAD MINIMUM HEIGHT

105MM

LIFTING PAD MAXIMUM HEIGHT

155MM

LIFTING TIME

60 SECONDS

N.W./ G.W

750KGS/ 780KGS

Material Thickness

CABLES

10MM

COLUMNS

6MM

CARRIAGES

6MM

Freight Information

HOIST

3580MM

500MM

1000MM

TOTAL WEIGHT

780KG
