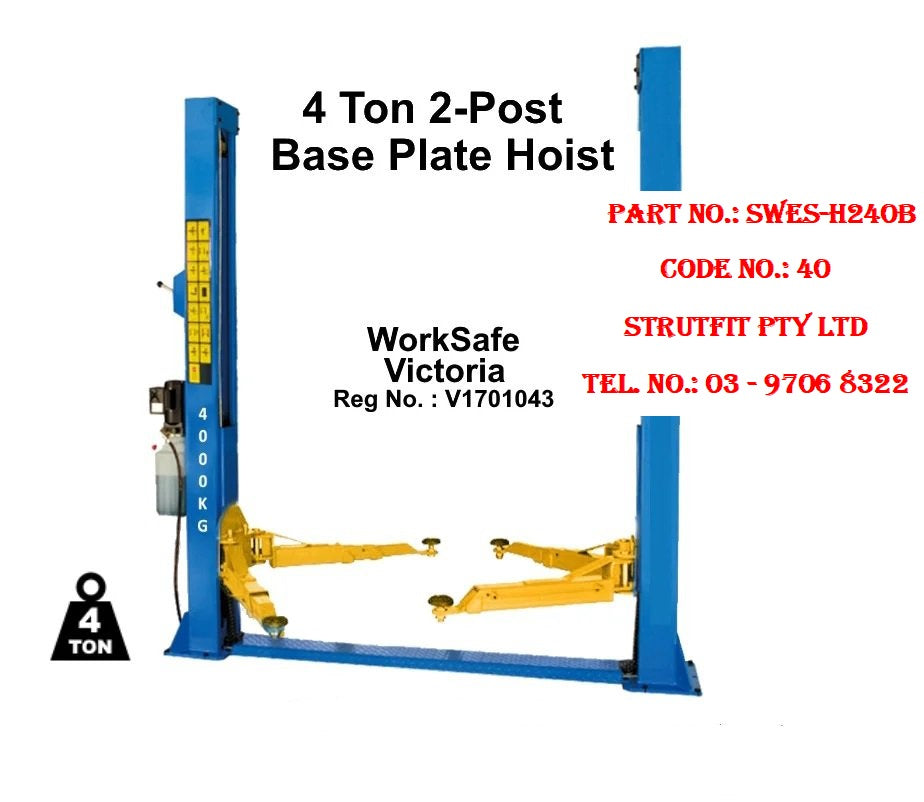

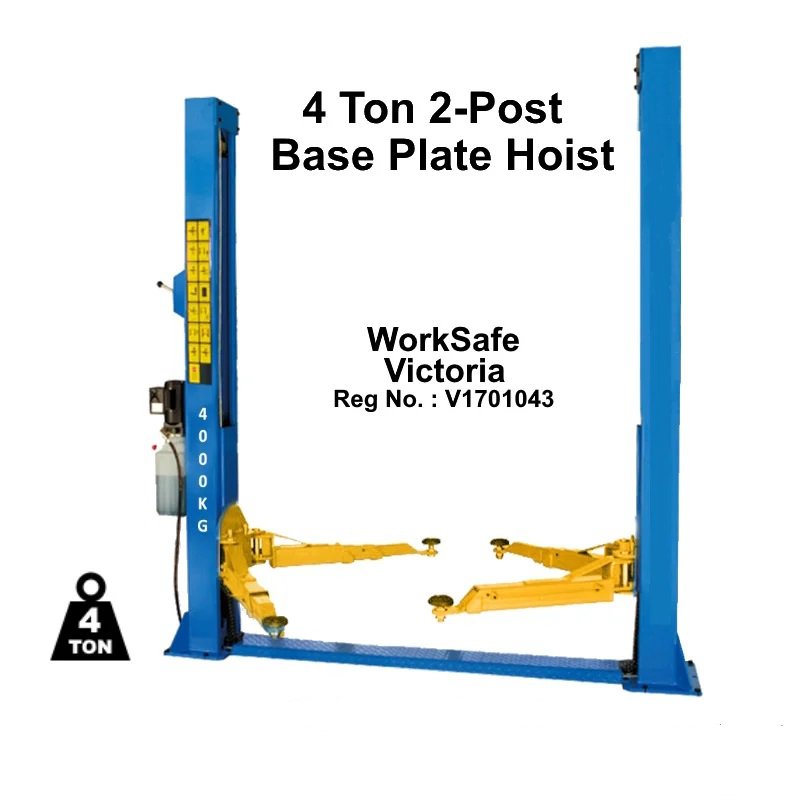

2-Post 4 ton Base Plate Car Hoist Part No.: SWES-H240B Code 40

2-Post 4 ton Base Plate Car Hoist Part No.: SWES-H240B Code 40

Code No.: 40

Part No.: SWES-H240B

Shipping weight & size :  612 kgs & 285*73*49 cm &

                                                  23 kgs & 76*26*34 cm

Description :

Features :

* Conform to Australian Standard, Work Safe Vic design registration No : V1701043

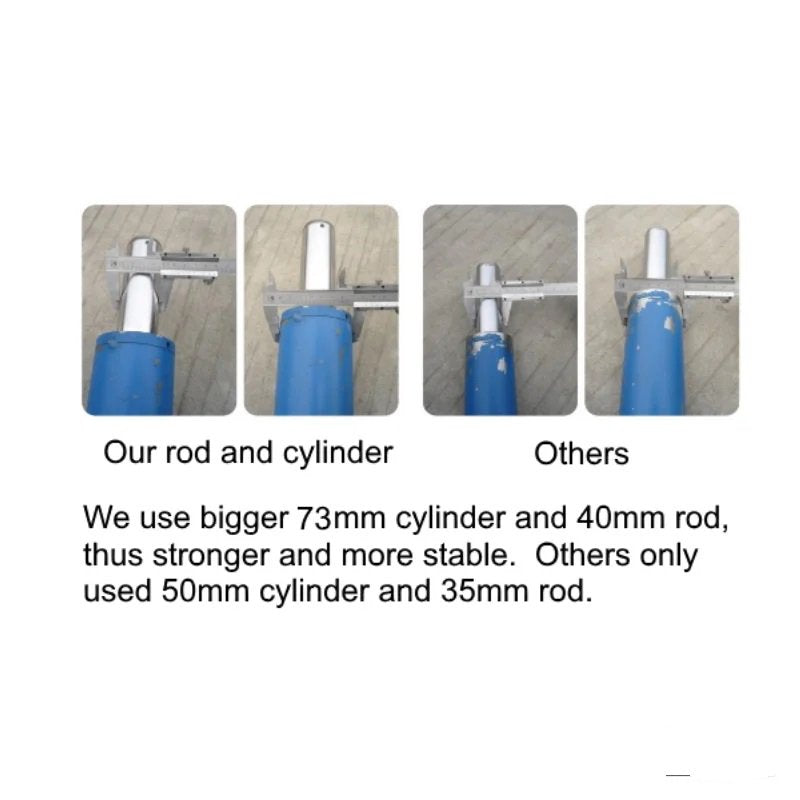

* Driven by double hydraulic cylinders (diameter of cylinder = 73mm, diameter of rod = 40mm)

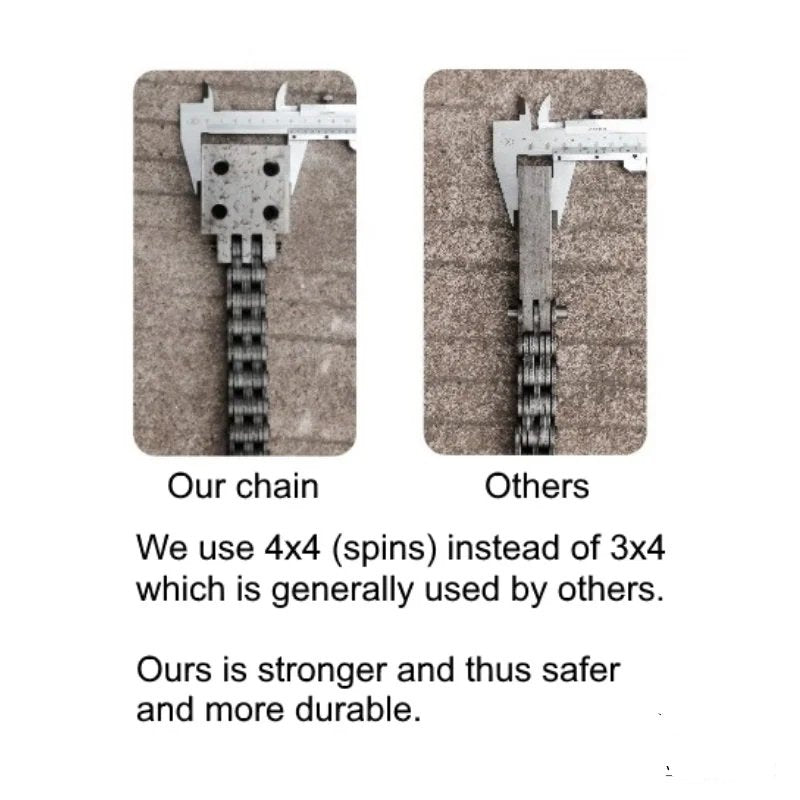

* Chain tyre elevating system.

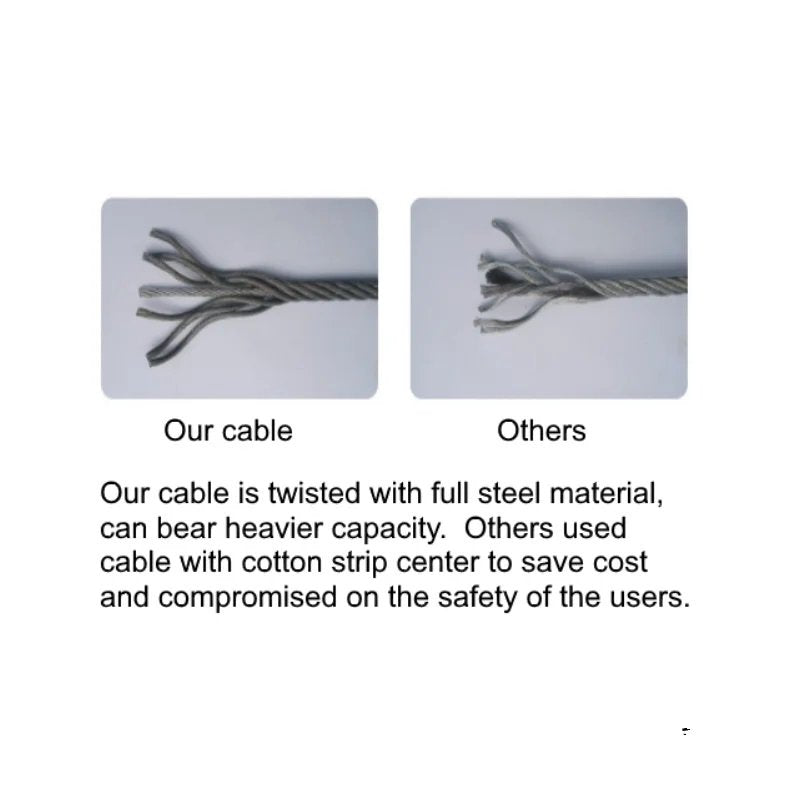

* With the stabilization system of high-grade steel wire cable, it ascends and descends smoothly.

* Single side manual safety lock release system.

* Asymmetric arm design.

* Manual safety lock at each arm.

* Powder coated finish.

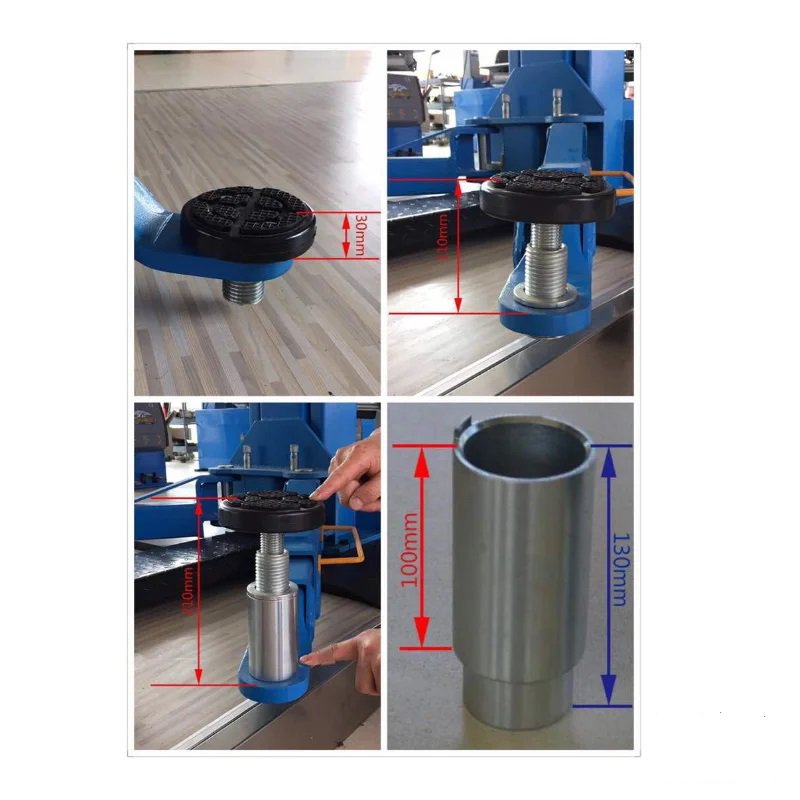

* Adjustable high-quality screw type lift pads.

* Comes with SUV/4×4 100mm adaptor

Description

Specifications :

* Lifting capacity : 4000kg

* Car maximum lifting height : 1850mm

* Lift minimum stand height : 90mm

* Clearance between posts : 2820mm

* Overall height : 2826mm

* Overall width (total) : 3360mm

* Long arm maximum length : 1390mm

* Long arm minimum length : 890mm

* Short arm maximum length : 1050mm

* Short arm minimum length : 740mm

* Drive through clearance : 2520mm

* Lifting time (240V) : ≤60sec

* Descend time : 18sec≤t≤60sec

* Noise : 70db (A) 1m

* Operating temperature : 10°C/+50°C

* Work environment : Closed room

* Relative humidity : 90%

* Oil tank capacity : 10L

* Lock : Manual single

* Elevating system : Chain

* Photo is for illustration purpose only.  Actual item and/or specifications may vary due to regular product improvement. Please check before ordering.

Product Warranty: 3 years on electrical, hydraulic and parts, except rubber pads and wear and tear.

Packaging :

• 285cm (L) x 73cm (W) x 49cm (H), 610kg
• 76cm (L) x 26cm (W) x 34cm (H), 23kg

N.B.  Colour may vary
