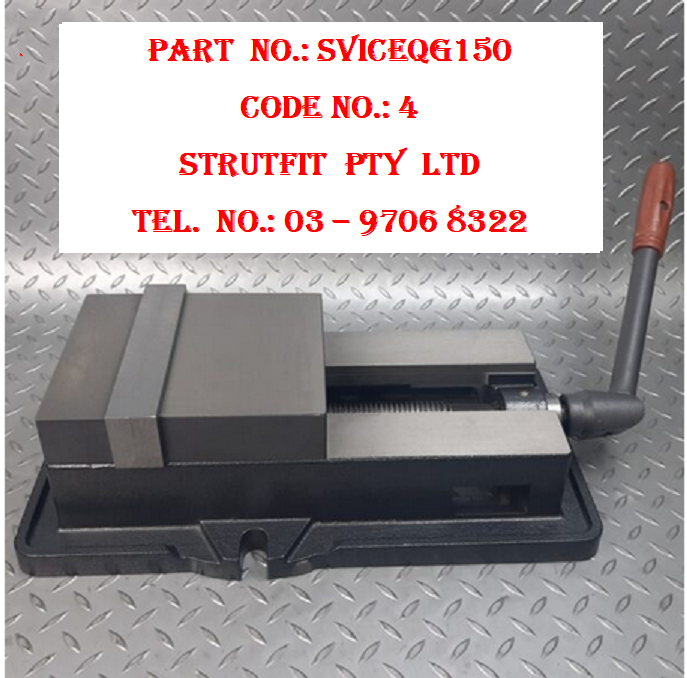

160mm MILLING MACHINE VICE Benchtop Lockdown Clamp Part No.: SVICEQG150 Code No. 4
160mm MILLING MACHINE VICE Benchtop Lockdown Clamp Part No.: SVICEQG150 Code No. 4
160mm MILLING MACHINE VICE Benchtop Lockdown Clamp Part No.: SVICEQG150 Code No. 4
Code No.: 4
Part No.: SVICEQG150
Shipping weight & size : 24 kgs & 46*25*13 cm
Description:

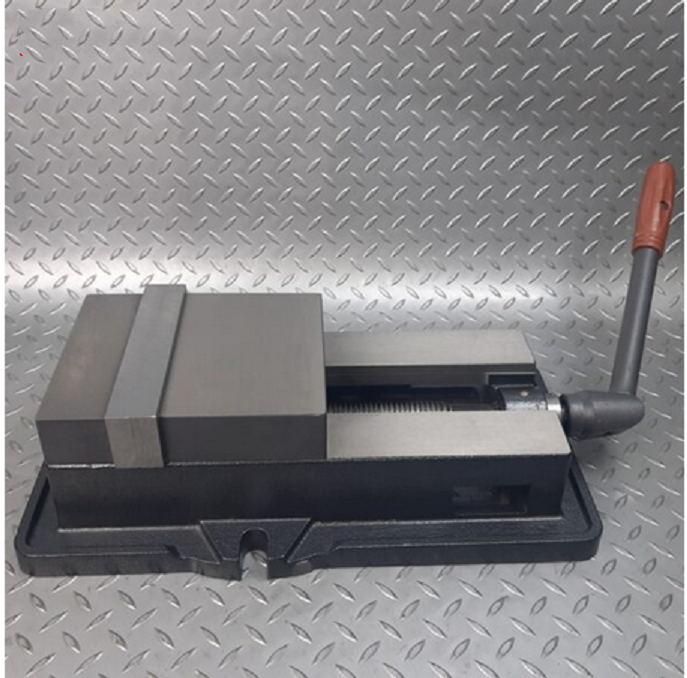

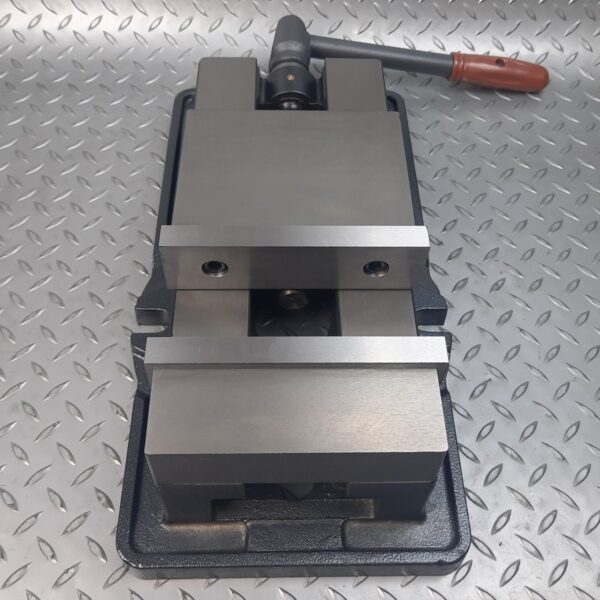

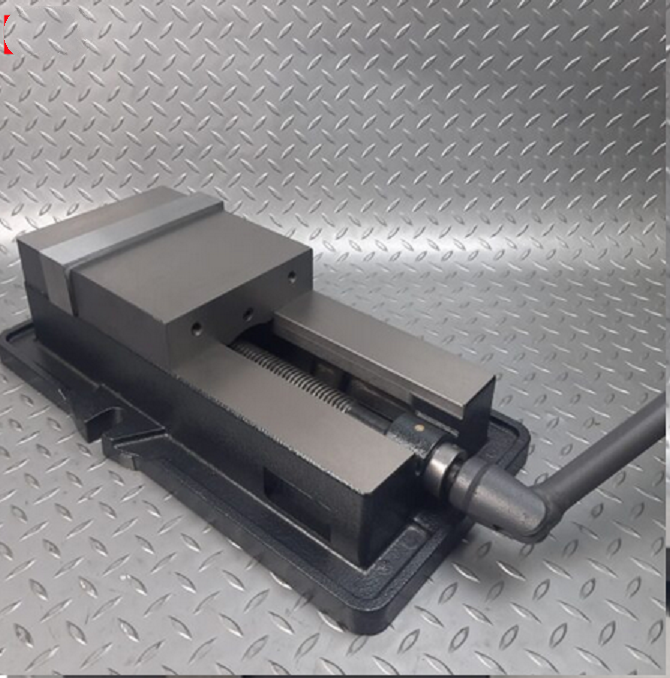

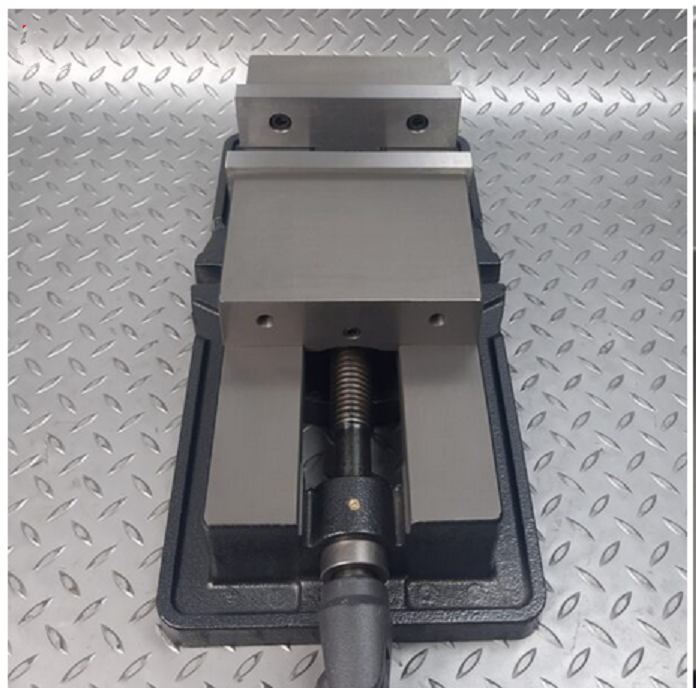

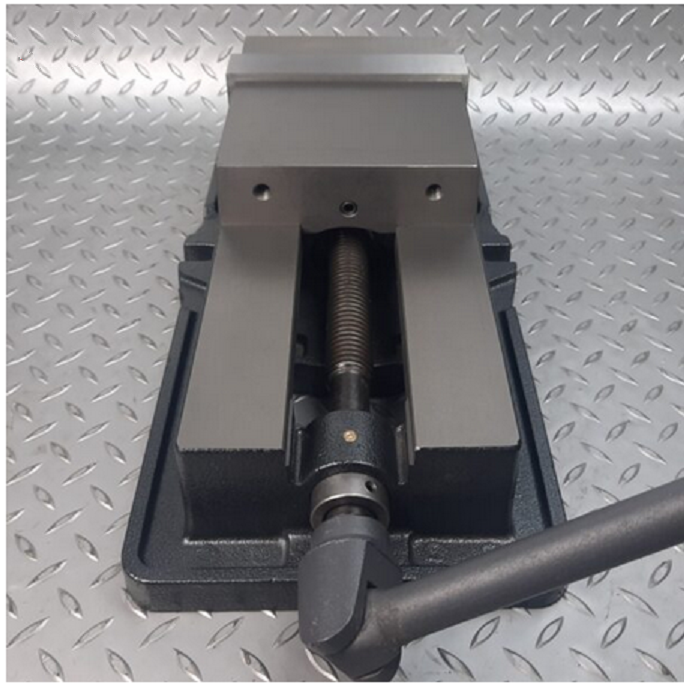

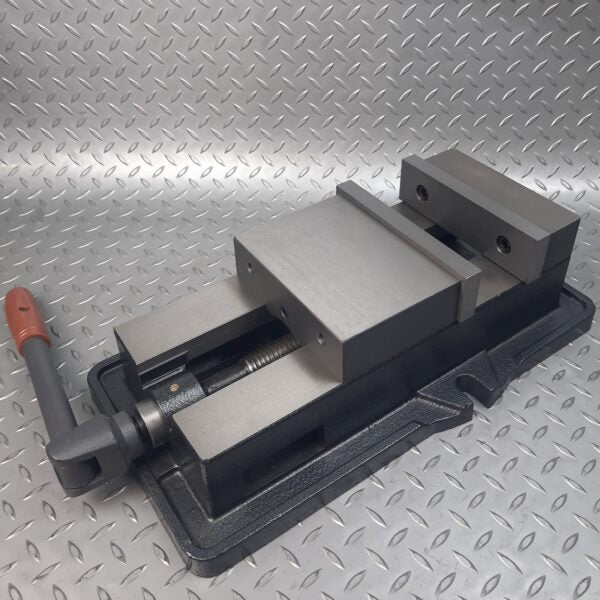

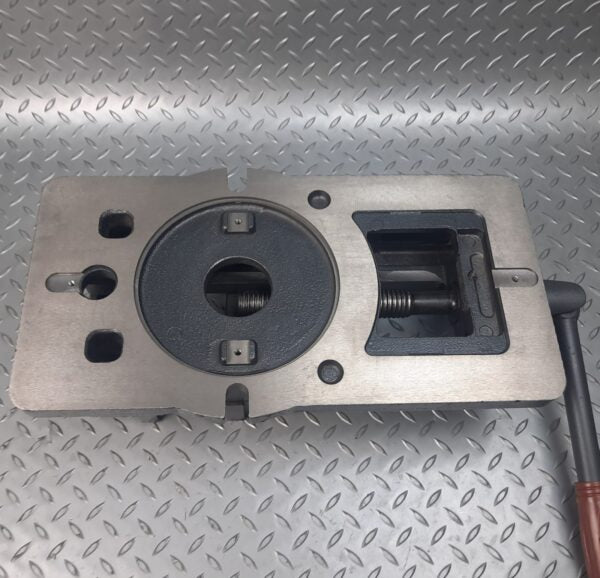

The METEX 160mm Milling Machine Vice provides secure and accurate positioning of your workpiece during milling & drilling operations.
The METEX 160mm / 6″ Milling Vice provides secure and accurate positioning of your workpiece during milling operations. METEX quality milling vice features perfectly aligned, precision-ground jaws, a robust clamping screw. Providing a full 160mm opening between jaws and can offer repeatable lockdown.
Locked Type Precision Milling machine vice suitable for all Milling Machines
Features
- Low-pull-type mechanism for safe clamping of the work piece
- Made from high-grade cast iron
- Hardened and precision ground guide surfaces
- Hardened, ground and removable clamping jaws
- Reversible Jaws for large work piece clamping
- Price Includes 10% GST
Technical Specifications 160mm Vice
Jaw Width: 160mm
Jaw Height: 45mm
Max Jaw Open:170 mm
Overall Length:460mm
Width: 250mm
Centre height: 110mm
Clamping Force: 29KN
Weight: 23kg
|
N.B. Colour may vary
