GENERATOR - 8.75kVA Silenced Diesel Gen ATS 2WD RCD Part No.: GSD9000Q Code No. 1

GENERATOR - 8.75kVA Silenced Diesel Gen ATS 2WD RCD Part No.: GSD9000Q

Code No.: 1

Part No.: GSD9000Q

Shipping weight & size : 180 kgs & 99*63*94 cm

Description :

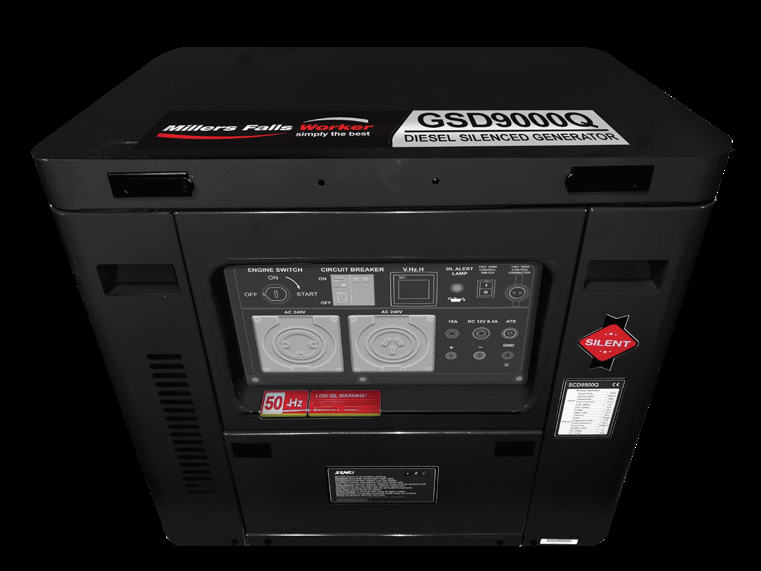

GSD9000Q Diesel Silenced Generator

Superior Quality – Unprecedented Functionality – Exceptional Value

The GSD9000Q is powerful enough to run an entire household or worksite as well as a variety of high consumption tools, machinery, welders and the like. The silencing enclosure of this diesel generator reduces the sound level to a comfortable 65 dBA at 7 meters allowing for work and activities to continue in the near vicinity without excessive noise pollution.

The ATS and Two Wire Remote Start functions of this generator give it greater versatility as it can be easily connected to automatically recharge off grid batteries via the battery controller as well as wired direct to the house or workshop mains power via the ATS feature and optional ATS Box, meaning the generator will start automatically in case of mains power failure and stop automatically when mains power is restored.

IP66 Waterproof Outlets are supplied including a 32-amp 240V outlet and a 15-amp 240V outlet, we even supply a 32amp IP66 plug. The RCD (earth leakage safety switch) fitted to the GSD9000Q provides an extra level of safety and gives this generator a tick of approval on many construction and mining sites. The unit also provides a 12v DC @ 8amp power supply handy for charging 12-volt batteries. The lift up lid on this generator gives great access to the unit for service and maintenance purposes without compromising its sound deadening qualities.

FEATURES:

• 12-Volt DC Circuit
  • 15 AMP 240 Volt IP66 Socket
  • 32 AMP 240 Volt IP66 Plug Supplied
  • 32 AMP 240 Volt IP66 Socket
  • ATS Auto Transfer Switch
  • AVR Automatic Voltage Regulator
  • Digital Hour Usage, Hertz and Volt Meter
  • Lift Up Lid Silenced Diesel Generator
  • Heavy Duty Copper Alternator
  • Electric Start
  • Low Noise Emission
  • Never Flat Wheels
  • Oil Alert Light
  • RCD Safety Switch
  • Silenced Diesel
  • Two Wire Remote Start

Model Number GSD9000Q                                            AMPS 27.1
Volts 240                                                                        FREQ 50HZ
Engine Displacement 499cc                                          THD < 8%
Max Power kVa 8.750                                                    POWER FACTOR 0.8
Rated Power kVa 8.125                                                 PHASE SINGLE
Max Power kW 7.0                                                         RPM 3000
Rated Power kW 6.5                                                      FUEL CAPACITY 15L
dBA 65                                                                           Run Time 50%-100% Load 7.5 - 5.0 HRS
Dimensions L x W x H / CM 94 x 58 x 89                       Weight 174KG
