STRUTFIT

GENERATOR – 8.75kVa Diesel Open – Frame Part No.: GSD9000E Code No. 1

GENERATOR – 8.75kVa Diesel Open – Frame Part No.: GSD9000E Code No. 1

Regular price $1,858.00 AUD
Regular price Sale price $1,858.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

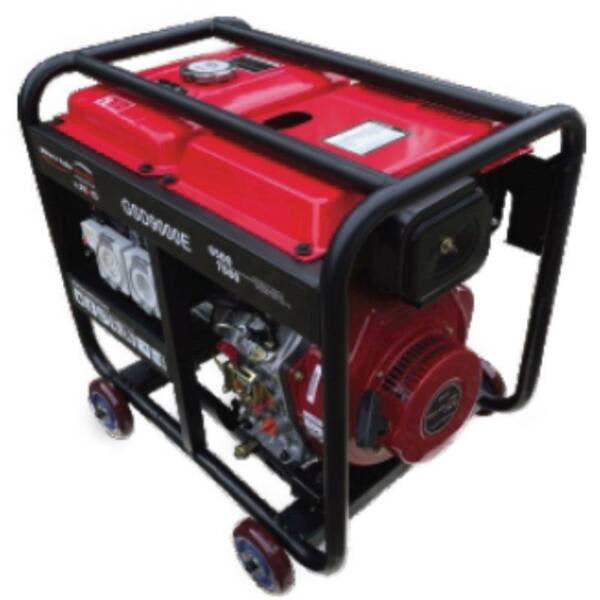

GENERATOR – 8.75kVa Diesel Open – Frame Part No.: GSD9000E

Code No.: 1

Part No.: GSD9000E

Shipping weight & size :  145 kgs & 99*63*94 cm

Description :

Superior Quality – Unprecedented Functionality – Exceptional Value

The GSD9000E is powerful enough to run an entire household or worksite as well as a variety of high consumption tools, machinery, welders and the like.

The ATS and Two Wire Remote Start functions of this generator give it greater versatility as it can be easily connected to automatically recharge off grid batteries via the battery controller as well as wired direct to the house or workshop mains power via the ATS feature and optional ATS Box,meaning the generator will start automatically in case of mains power failure and stop automatically when mains power is restored.

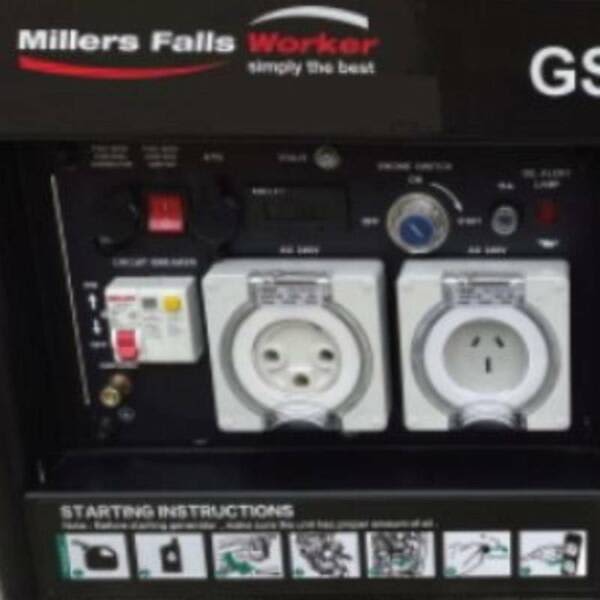

IP66 Waterproof Outlets are supplied including a 32-amp 240V outlet and a 15-amp 240V outlet, we even supply a 32amp IP66 plug. The RCD (earth leakage safety switch) fitted to the GSD9000E provides an extra level of safety and gives this generator a tick of approval on many construction and mining sites. The unit also provides a 12v DC @ 8amp power supply handy for charging 12-volt batteries.



  • 12-Volt DC Circuit
  • 15 AMP 240 Volt IP66 Sockets x 2
  • 32 AMP 240 Volt IP66 Plug Supplied
  • 32 AMP 240 Volt IP66 Sockets
  • ATS Auto Transfer Switch
  • AVR Automatic Voltage Regulator
  • Battery Included
  • Digital Hour Usage, Hertz and Volt Meter
  • Electric Start
  • Heavy Duty Copper Alternator
  • Low Noise Emission
  • Oil Alert Light
  • RCD Safety Switch
  • Two Wire Remote Start


Specifications :

Model Number                                                    GSD9000E

AMPS                                                                  27.1

Volts                                                                   240

Frequency                                                           50Hz

Engine Displacement                                           499 cc

THD                                                                    < 8%

Maximum Power kVA                                           8.750

Power Factor                                                        0.8

Related Power kVa                                                8.125

Phase                                                                   Single

Maximum Power kW                                            7.0

RPM                                                                    3000

Related Power kW                                                6.5

Fuel Capacity                                                       15 litres

dBA 100% Load at 7m                                         82

Run Time 50%-100% Load                                  7.5 – 5.0 HRS

Dimensions L x W x H/CM                                   94 x 58 x 89

Weight                                                                131 kgs
