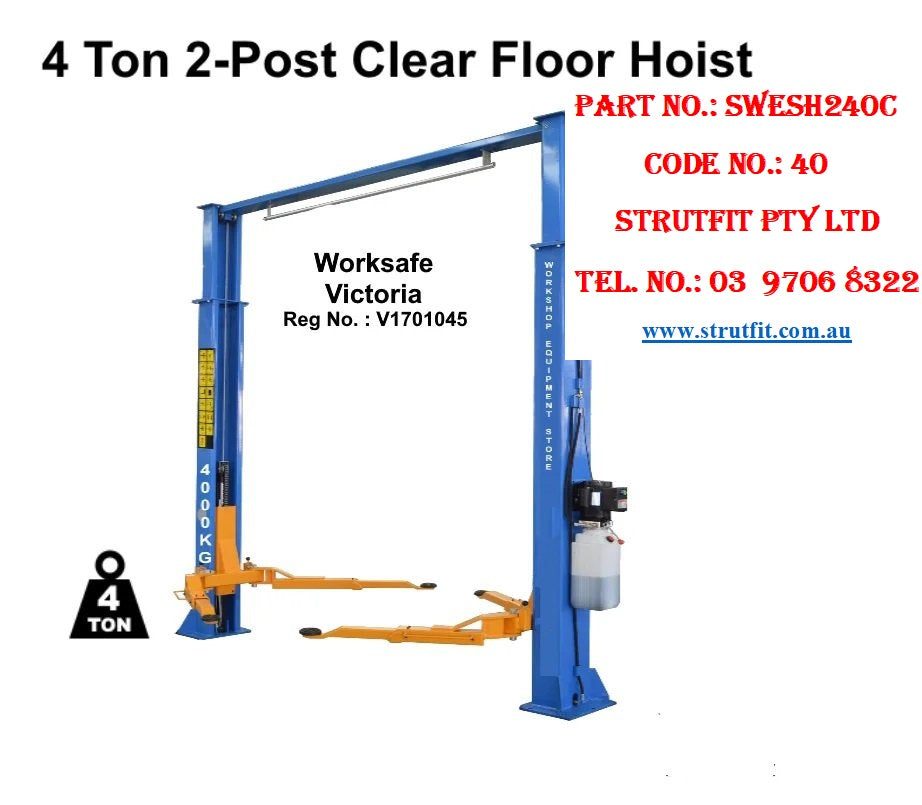

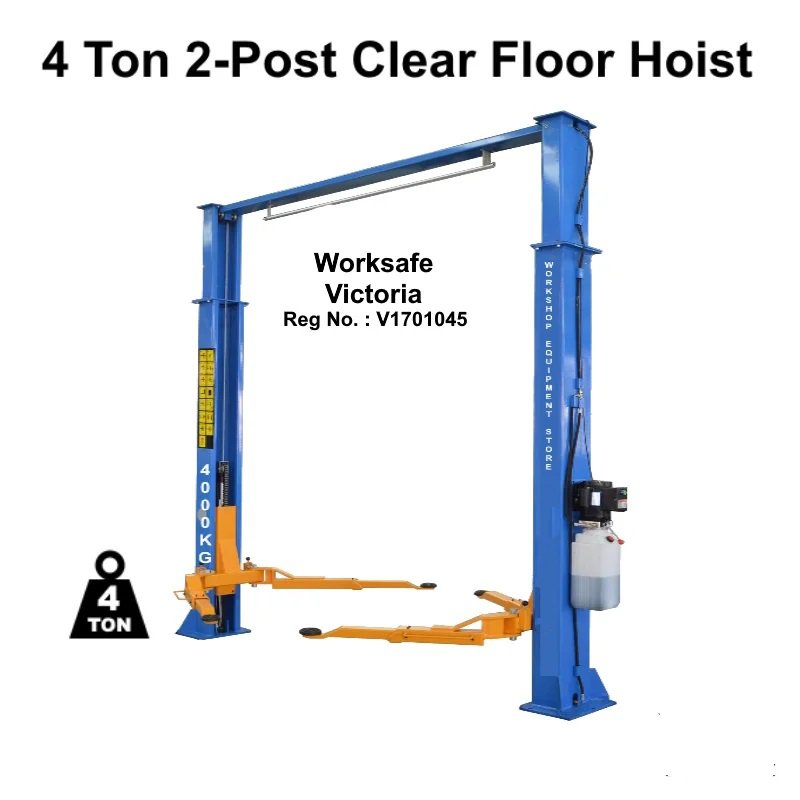

2 Post 4 ton Clear Floor Car Hoist Part No.: SWESH240C C40

2 Post 4 ton Clear Floor Car Hoist Part No.: SWESH240C Code 40

Code No.: 40

Part No.: SWESH240C

Shipping weight & size :

Description:

Features :

• Conform to Australian Standard, Work Safe Vic design registration no : V1701045

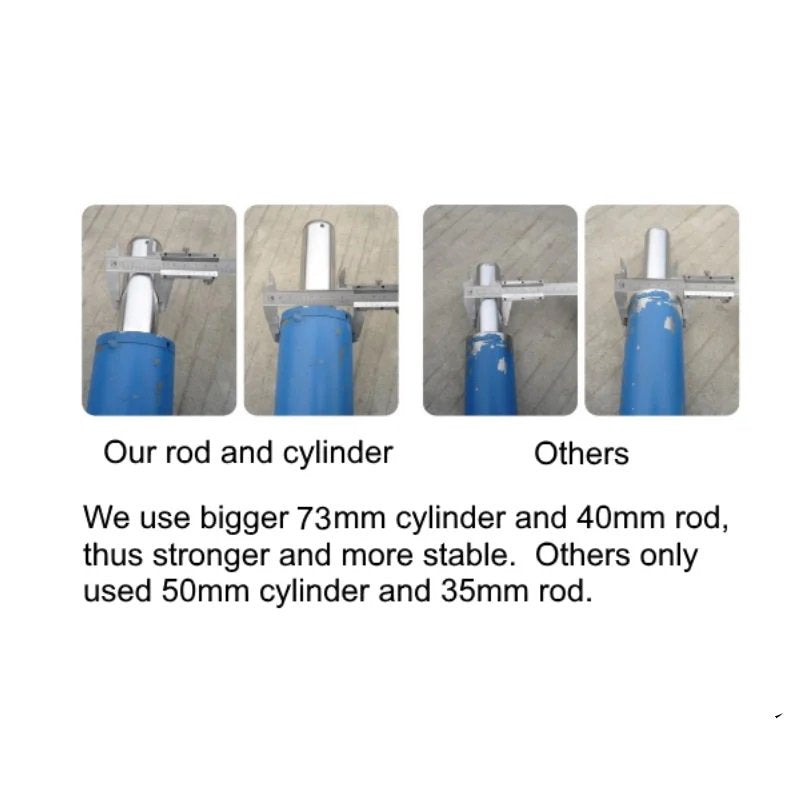

• Driven by double hydraulic cylinders (diameter of cylinder = 73mm, diameter of rod = 40mm)

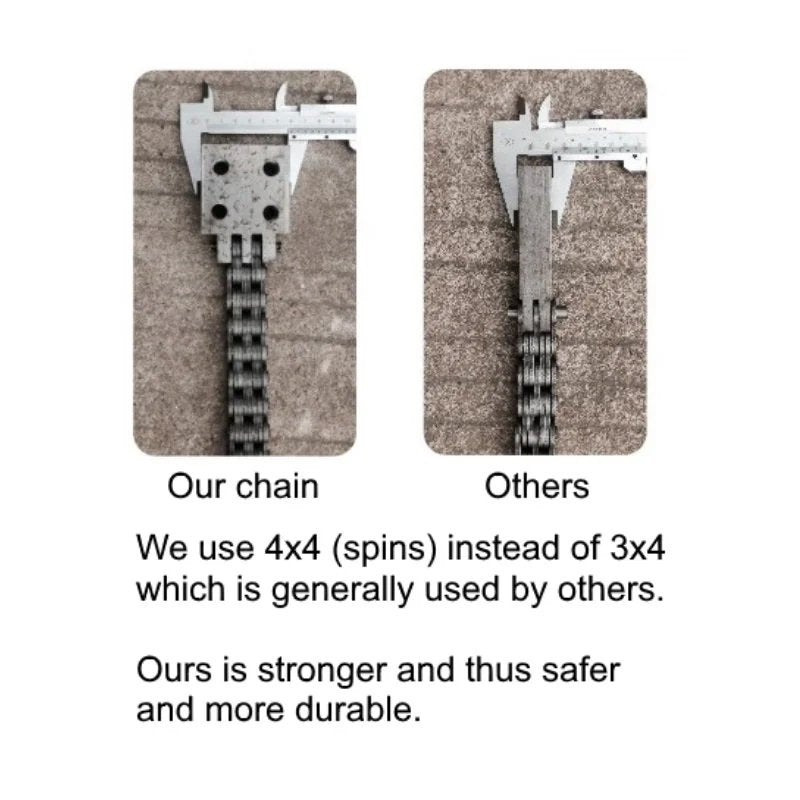

• Chain tyre elevating system.

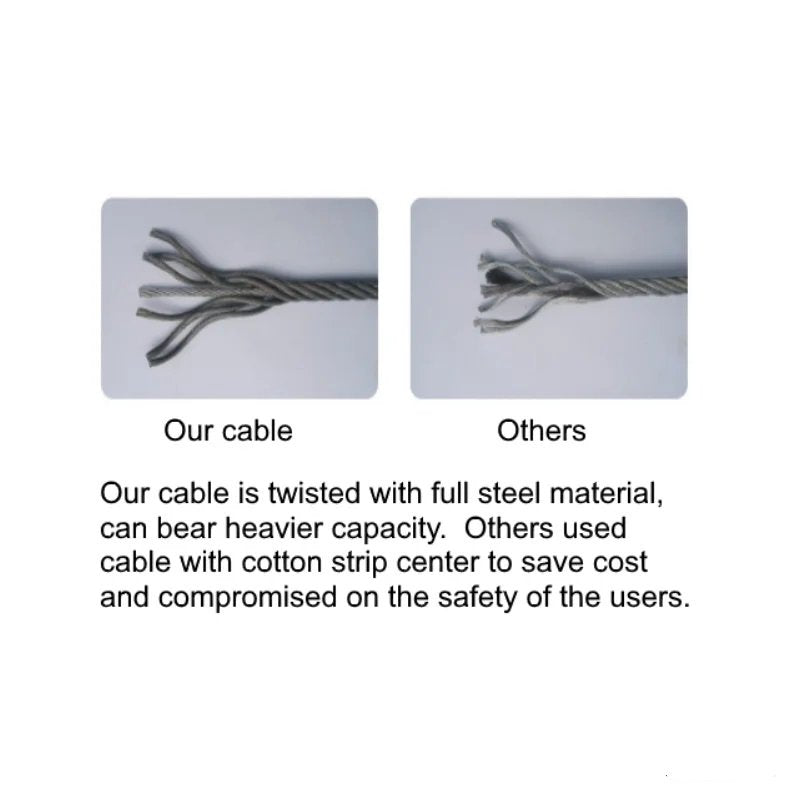

• With the stabilization system of high grade steel wire cable, it ascends and descends smoothly.
• Single side manual safety lock release system.
• Auto shut off if vehicle roof touches the padded bar to prevent damage.
• Asymmetric arm design.
• Manual safety lock at each arm.
• Powder coated finish.

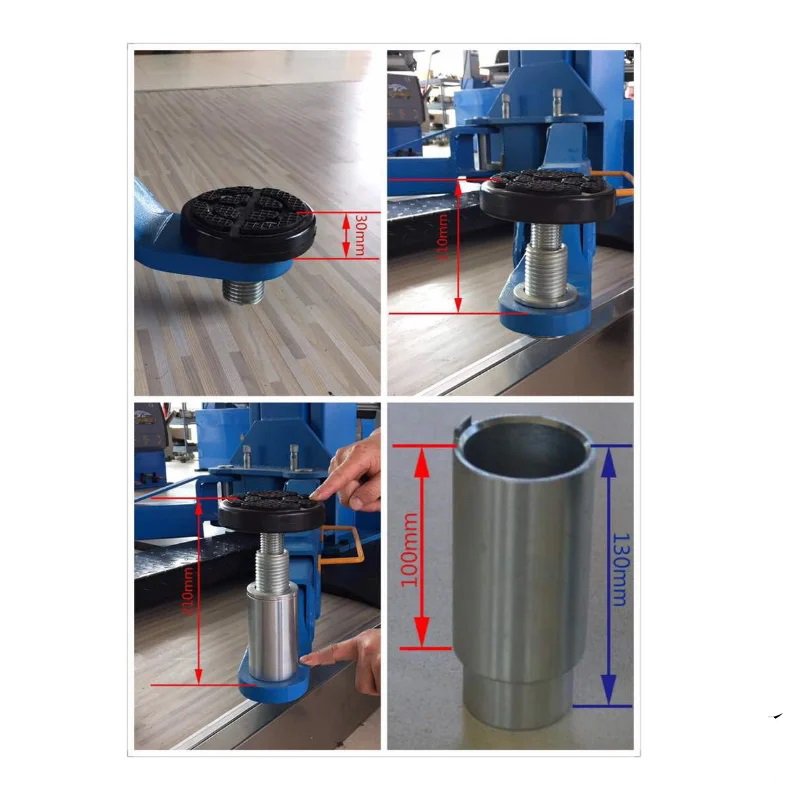

• Adjustable high quality screw type lift pads.
• Comes with SUV/4×4 100mm adaptor

Specifications :

• Lifting capacity : 4000kg
• Car maximum lifting height : 1850mm
• Lift minimum stand height : 95mm
• Clearance between posts : 2820mm
• Overall height : 3626mm
• Overall width (total) : 3420mm
• Long arm maximum length : 1390mm
• Long arm minimum length : 890mm
• Short arm maximum length : 1050mm
• Short arm minimum length : 740mm
• Drive through clearance : 2585mm
• Lifting time (240V) : ≤60sec
• Descend time : 18sec≤t≤60sec
• Noise : 70db (A) 1m
• Operating temperature : 10°C/+50°C
• Work environment : Closed room
• Relative humidity : 90%
• Oil tank capacity : 10L
• Lock : Manual single
• Elevating system : Chain

*Photo is for illustration purpose only.  Actual item and/or specifications may vary due to regular product improvement. Please check before ordering.

Product Warranty : 3 years on electrical, hydraulic and parts, except rubber pads and wear and tear.

N.B.  Colour may vary. Picture is for illustration purposes only.
